Solder Ninja Pen
A 45 W USB-powered soldering iron compatible with Weller RT Micro tips
Back this project to help bring it into existence.
Funding ends on Dec 12, 2024 at 03:59 PM PST.
Back this project to help bring it into existence.
Funding ends on Dec 12, 2024 at 03:59 PM PST.
Meet the Solder Ninja Pen — the ultimate USB-powered soldering iron for reliability and precision. Compatible with Weller’s extensive RT Micro tip catalog, it’s versatile enough for tasks ranging from large ground planes to submillimeter microsoldering. With hot-swappable tips, an adjustable temperature display, and a lightweight design, the Solder Ninja Pen is ideal for both professionals and hobbyists looking for portability without compromising quality.
Crafted from anodized, machined aluminum, the Solder Ninja Pen is built for durability. High-quality components, such as a tip connector rated for 5,000 cycles and a Würth Elektronik USB-C connector rated for 10,000 cycles, ensure long-lasting performance. The pen’s body design also provides mechanical stress relief, adding to its resilience.
The Solder Ninja Pen is compatible with 24 Weller RT Micro tips, covering tasks from microsoldering to large copper planes. Each order includes a 1.3 × 0.4 mm chisel tip, suitable for most applications. Additional tips with different geometries and use cases can be purchased separately below. For the complete list, refer to the official Weller catalog.
The Solder Ninja Pen operates from 7.5 W (1.5 A @ 5 V) and can negotiate up to 45 W, making it compatible with various power sources, including wall chargers, power banks, and laptops. Solder wherever you are, without limitations.
The Solder Ninja Pen is an open hardware device. Explore its schematics on GitHub.
| Product | Solder Ninja Pen | Pine64 Pinecil V2 | Miniware TS80P | Miniware TS101 | iFixit Fixhub |
|---|---|---|---|---|---|
| Country of Origin | France | China | China | China | Unknown |
| Weight | 35 g | 28 g | 38 g | 33 g | 600 g |
| Power Range | 7.5 - 45 W | 36 - 60 W | 18 - 30 W | 9 - 90 W | 18 - 50 W |
| Working Voltage | 5 - 20 V | 5 - 20 V | 9 - 12 V | 9 - 28 V | 9 - 20 V |
| Compatible Chargers | BC 1.2, HVDCP (QC), PD | HVDCP (QC), PD | HVDCP (QC), PD | PD | PD |
| Temperature Range | 0 - 350 °C (400 °C boost) | 100 - 400 °C | 100 - 400 °C | 50 - 400 °C | 100 - 420 °C |
| Heat-up Time to 350 °C | 5 s | 6 s | 11 s | 15 s | 5 s |
| Tips | Plug-and-play, 24 options | Not plug-and-play, 9 options | Plug-and-play, 5 options | Not plug-and-play, 9 options | Plug-and-play, 7 options |
| Tip-to-grip Distance | Short (40 mm) | Medium (50 mm) | Medium (60 mm) | Long (70 mm) | Medium (50 mm) |
| Body | Aluminum | Plastic | Aluminum | Aluminum | Aluminum |
| Connectivity | USB Type-C with strain relief | USB Type-C, DC5525 | USB Type-C | USB Type-C, DC5525 | USB Type-C with proprietary cable |
| Cable | Yes | No | Yes | Yes | Yes, proprietary |
| Price in USD | $169 | $26 | $59 | $49 | $249 |
For questions about the Solder Ninja Pen, visit our dedicated channel on Discord.
PCBWay is managing the production and assembly of circuit boards. The body is machined from aluminum and anodized by a trusted supplier who delivered the first batch of pre-production units. Acrylic for the display window is provided by a separate supplier, and buttons are 3D-printed in resin by JLC3DP. Packaging, designed for reuse as a carrying case, is produced by local company Durolle Emballage. All parts are shipped to France, where we assemble and test each unit.
After assembly and testing, all products are shipped to Mouser Electronics for fulfillment. Crowd Supply and Mouser handle worldwide shipping and, for many destinations, pre-clear customs and tax. The price at checkout covers all delivery costs. For details, refer to Crowd Supply’s guides on fulfillment and ordering.
This project has been meticulously developed, with prototypes in reliable use for years. After a careful supplier evaluation, and a pre-production run that allowed for final refinements, we have established robust quality standards. While risks are inherent in any project, we have planned proactively to ensure a smooth, timely delivery.
"The Solder Ninja Pen, designed by Nicolas Schurando of Sitron Labs, revolutionizes USB-powered soldering irons by addressing the need for versatile tip options."
"The key feature of the solder ninja pen is that it is compatible with the hot-swappable RT Tip series tips from Weller."
"The Solder Ninja Pen, designed by Nicolas Schurando of Sitron Labs, revolutionizes USB-powered soldering irons by addressing the need for versatile tip options."
"Weller tips are of very high quality and also easy to replace, and there are a whole range of them. And Weller tips are the basis of the Solder Ninja Pen soldering iron. And that's not the only advantage. The soldering iron can work from 5V."
Produced by Sitron Labs in Paris, France.
Sold and shipped by Crowd Supply.

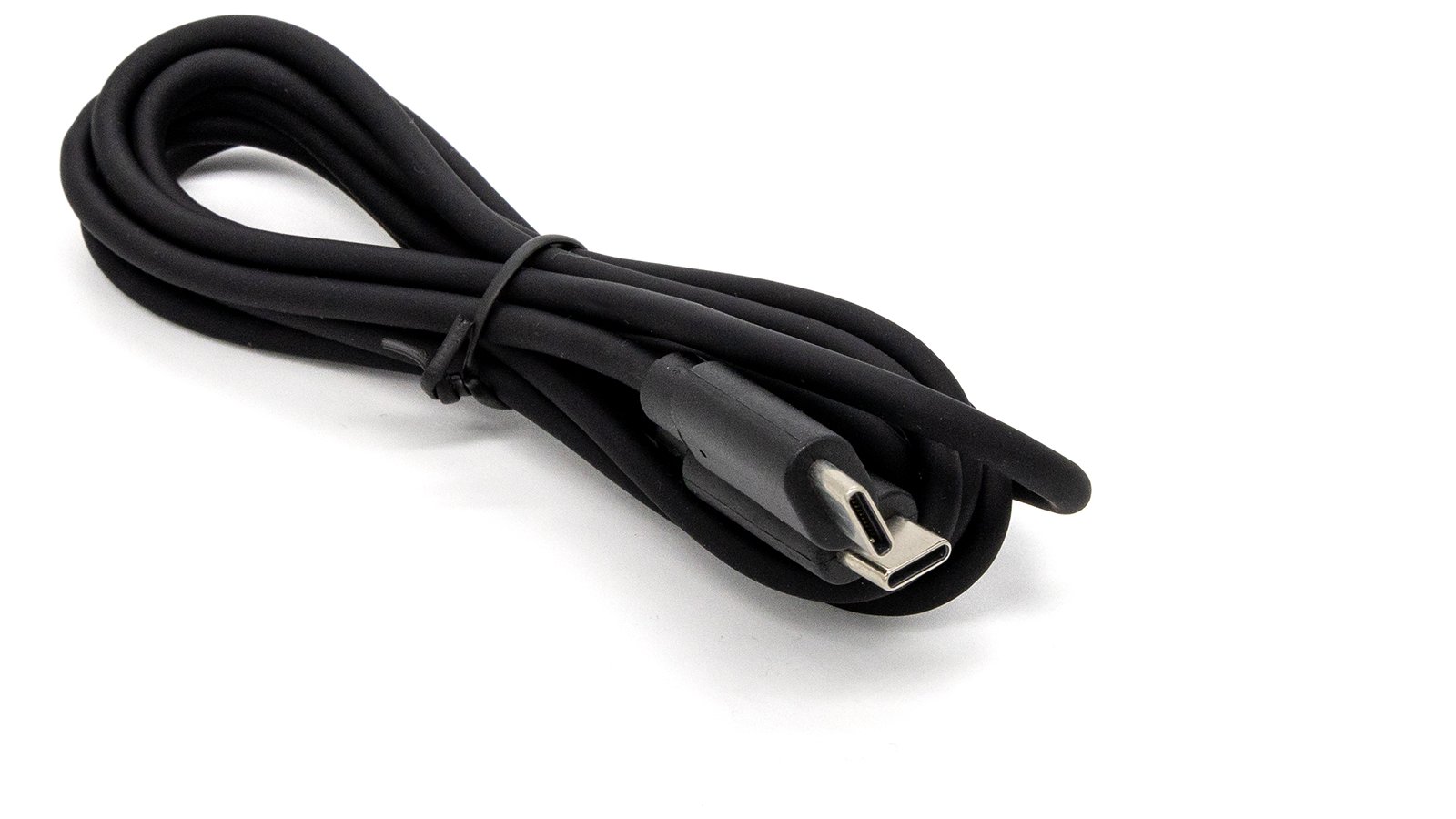

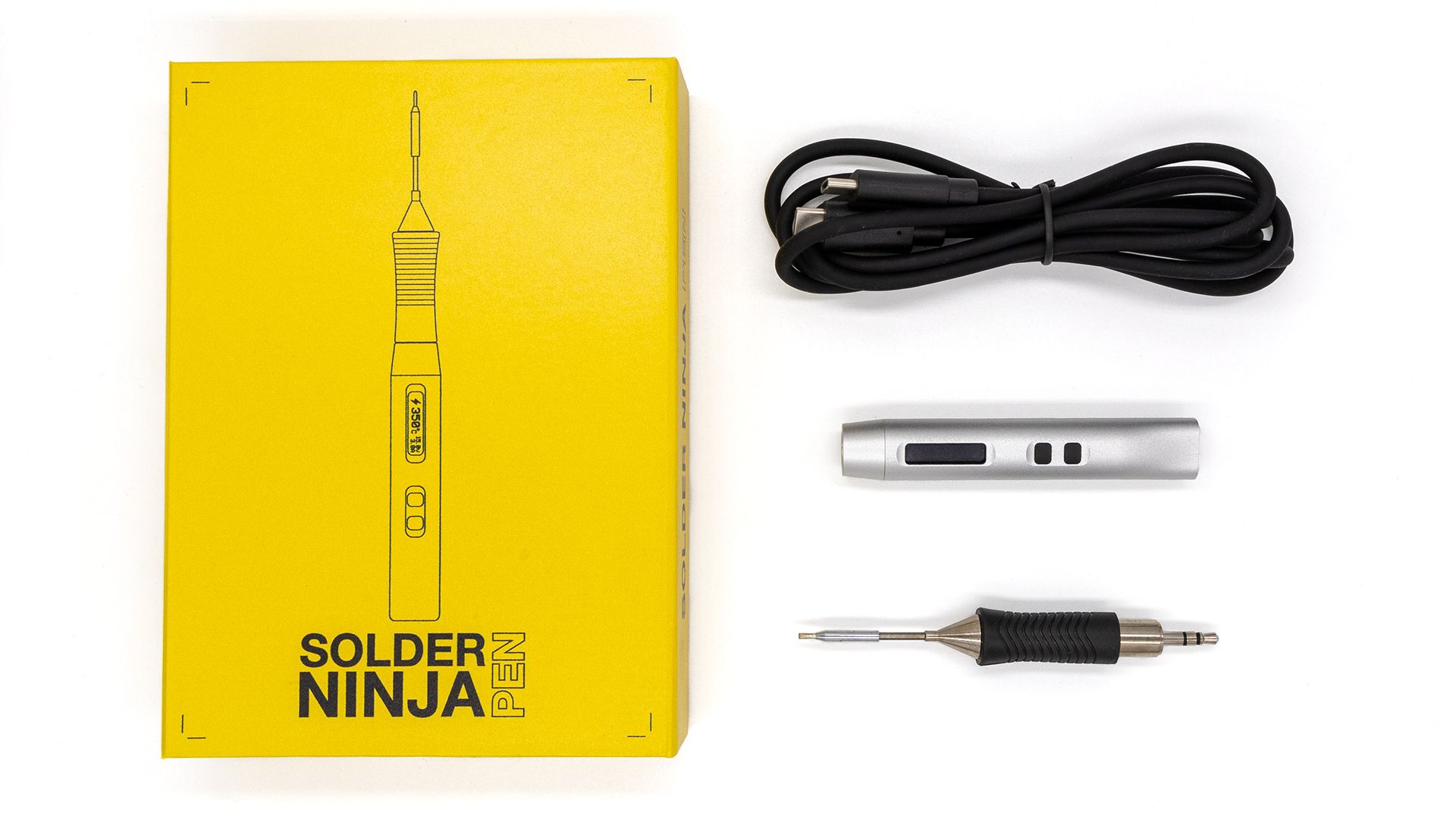

Comes with one soldering iron, one soldering iron tip (Weller RTM 013 S 1.3 x 0.4 mm chisel type), and one USB Type-A to USB Type-C (1 m), shipped in packaging that doubles as a storage container
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, conical-shaped soldering tip. Length: 19.0 mm, tip diameter: 0.2 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, long conical-shaped soldering tip. Length: 18.7 mm, tip diameter: 0.2 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, 45° bevel cut-shaped soldering tip. Length: 18.5 mm, tip diameter: 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 19.0 mm, tip cross section: 0.4 mm x 0.15 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, conical-shaped soldering tip. Length: 18.0 mm, tip diameter: 0.8 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 23.0 mm, tip cross section: 0.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped, bent (30°) soldering tip. Length: 23.0 mm, tip cross section: 0.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.0 mm x 0.3 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, 45° bevel cut-shaped soldering tip. Length: 18.0 mm, tip diameter: 1.2 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Each Solder Ninja Pen includes one piece of this tip.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 19.0 mm, tip cross section: 1.3 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.5 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, 45° gullwing-shaped soldering tip. Length: 20.0 mm, tip cross section: 2.0 mm x 1.2 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 2.2 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, 45° knife-shaped soldering tip. Length: 19.0 mm, tip edge: 2.5 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, 45° knife-shaped soldering tip. Length: 19.0 mm, tip edge: 3.0 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 17.5 mm, tip cross section: 3.2 mm x 0.9 mm. Compatible with WMRP and WXMP soldering irons.
From the Weller RT Micro Soldering Tips project.
Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 3.6 mm x 0.9 mm. Compatible with WMRP and WXMP soldering irons.
Get your Solder Ninja Pen early for a discount! Comes with one soldering iron, one soldering iron tip (Weller RTM 013 S 1.3 x 0.4 mm chisel type), and one USB Type-A to USB Type-C (1 m), shipped in packaging that doubles as a storage container
