Apex Tool Group
Soldering

Weller RT Micro Soldering Tips

40 Watt soldering tips compatible with Weller WMRP and WXMP soldering irons

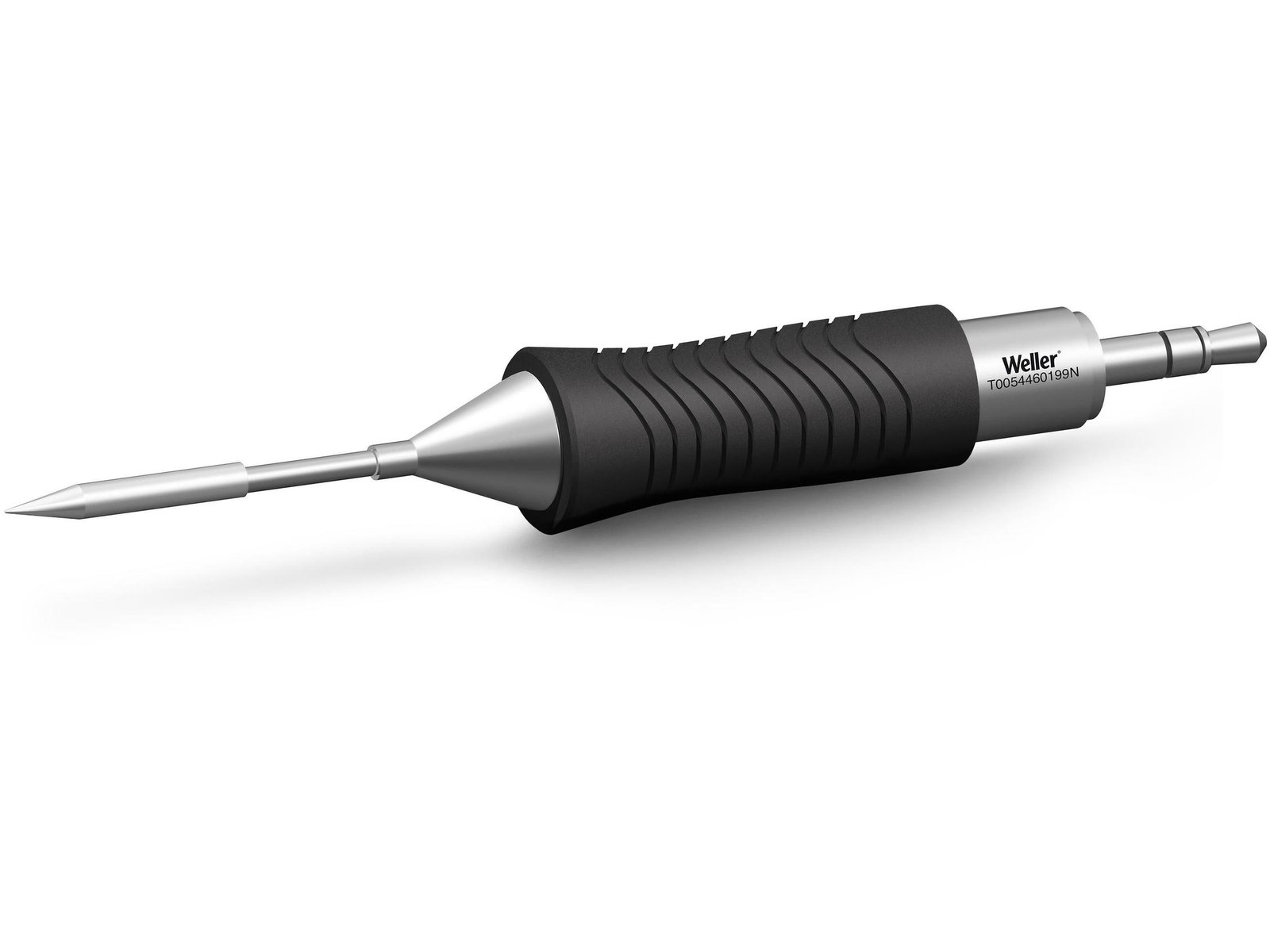

RTM 002 C (conical, 0.2 mm diameter)

Weller RT Micro 40 Watt, conical-shaped soldering tip. Length: 19.0 mm, tip diameter: 0.2 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 002 C L (long conical, 0.2 mm diameter)

Weller RT Micro 40 Watt, long conical-shaped soldering tip. Length: 18.7 mm, tip diameter: 0.2 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 004 B (bevel cut, 0.4 mm diameter)

Weller RT Micro 40 Watt, 45° bevel cut-shaped soldering tip. Length: 18.5 mm, tip diameter: 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 004 S (chisel, 0.4 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 19.0 mm, tip cross section: 0.4 mm x 0.15 mm. Compatible with WMRP and WXMP soldering irons.

$45 $8 US Shipping / $18 Worldwide

RTM 008 C (conical, 0.8 mm diameter)

Weller RT Micro 40 Watt, conical-shaped soldering tip. Length: 18.0 mm, tip diameter: 0.8 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 008 S (chisel, 0.8 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 23.0 mm, tip cross section: 0.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

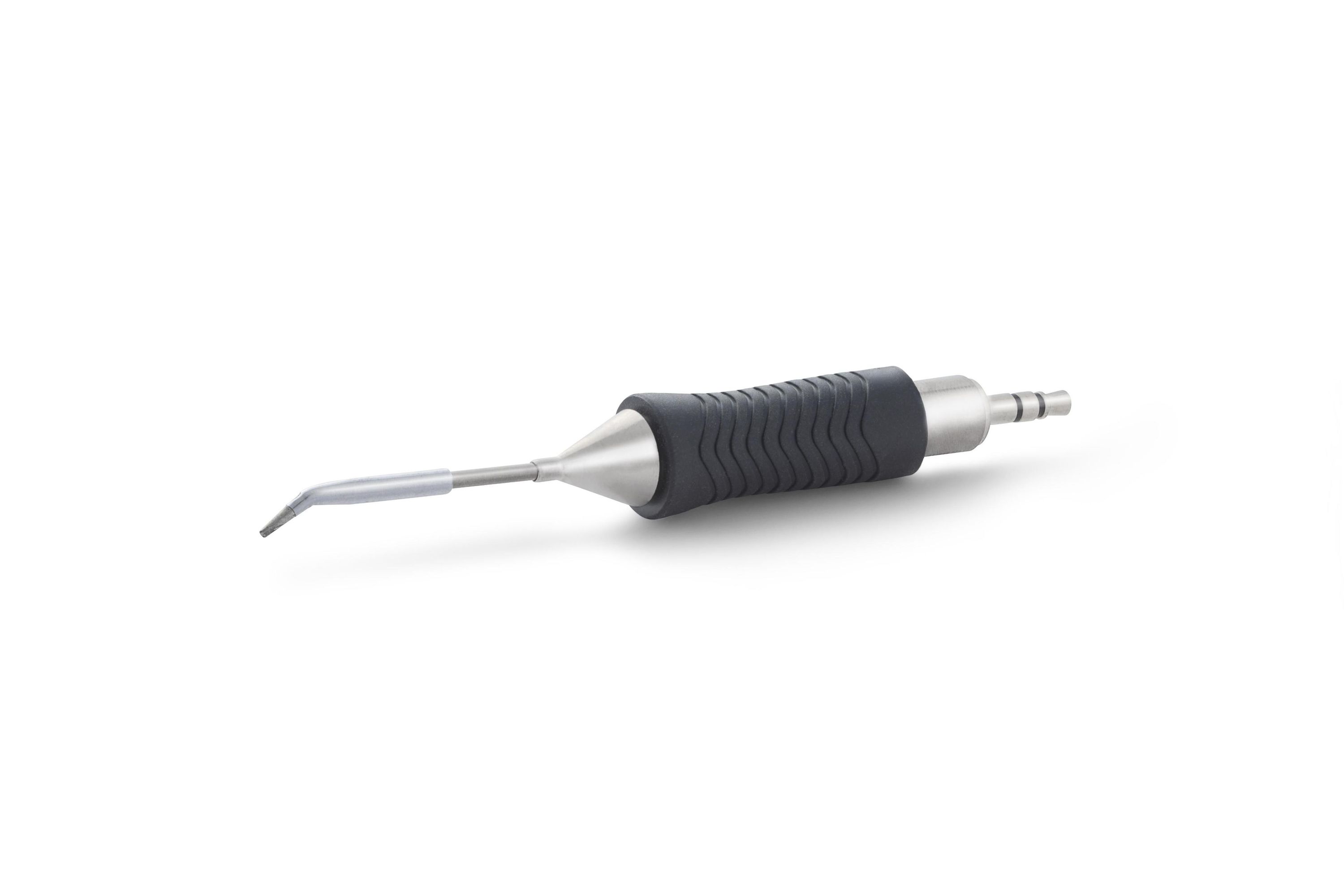

RTM 008 S X (angled chisel, 0.8 mm wide)

Weller RT Micro 40 Watt, chisel-shaped, bent (30°) soldering tip. Length: 23.0 mm, tip cross section: 0.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 010 S (chisel, 1.0 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.0 mm x 0.3 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

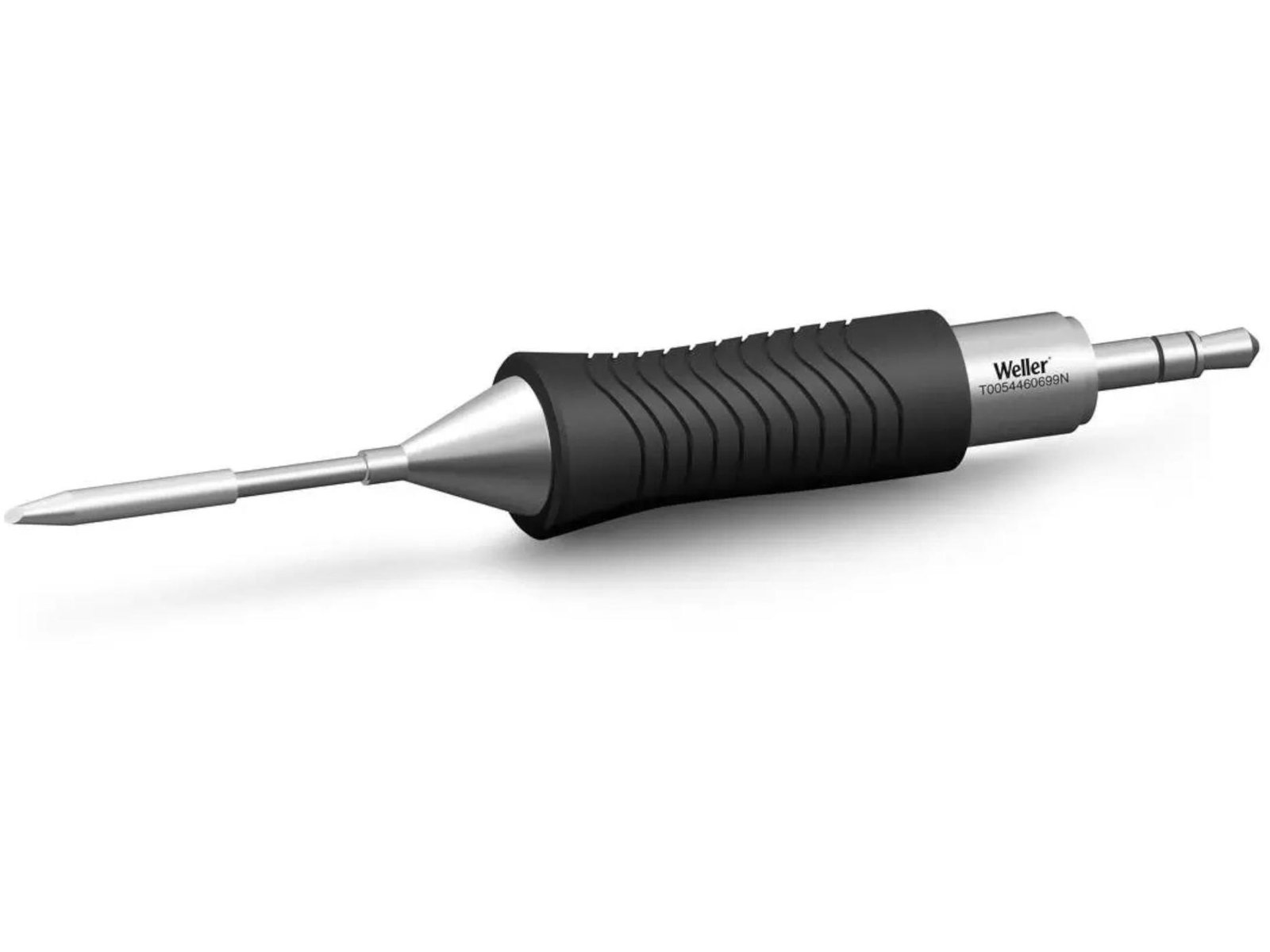

RTM 012 B (bevel cut, 1.2 mm diameter)

Weller RT Micro 40 Watt, 45° bevel cut-shaped soldering tip. Length: 18.0 mm, tip diameter: 1.2 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 013 S (chisel, 1.3 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 19.0 mm, tip cross section: 1.3 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 015 S (chisel, 1.5 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.5 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 018 S (chisel, 1.8 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 1.8 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

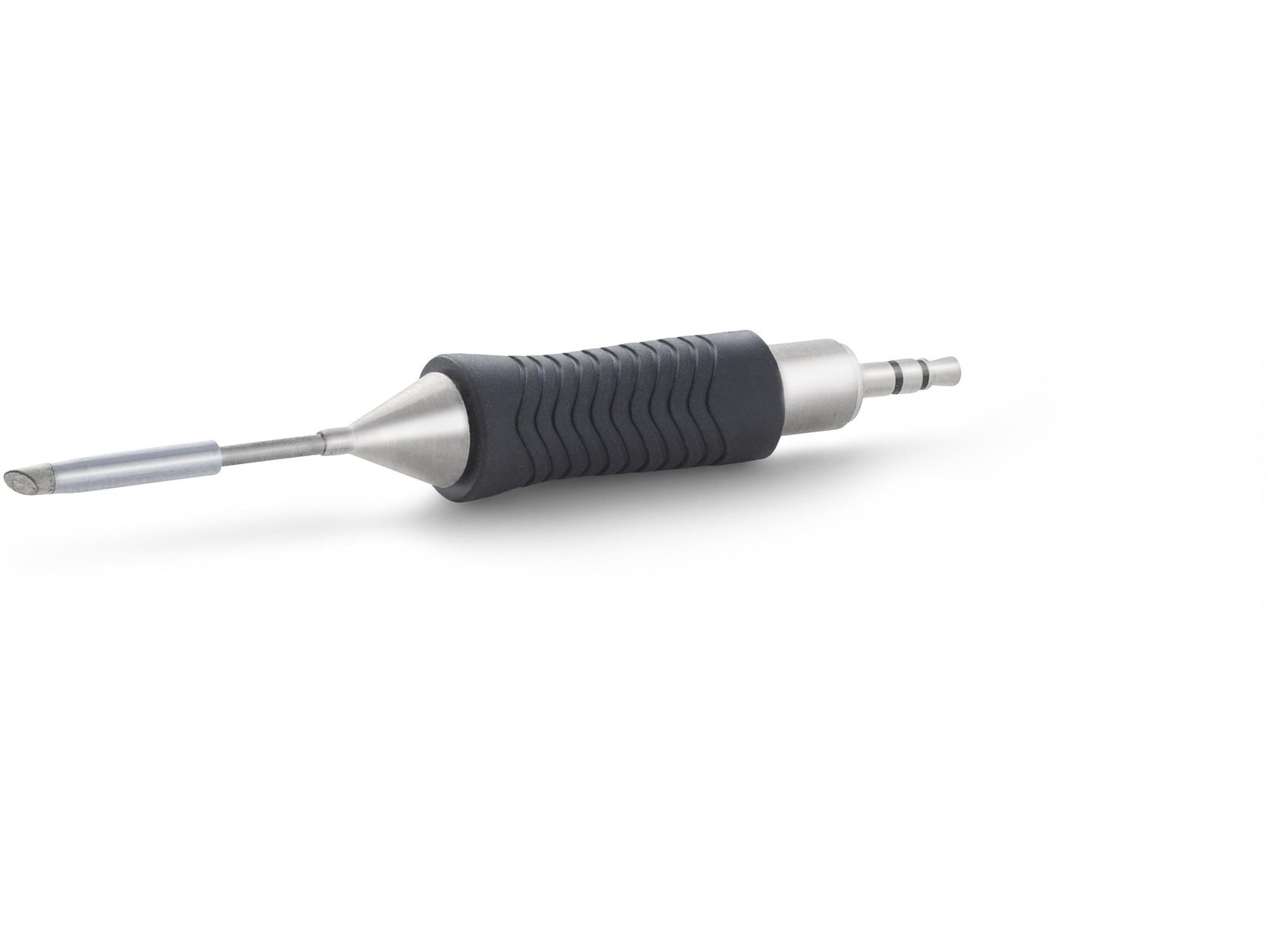

RTM 020 G (gullwing, 2.0 mm wide)

Weller RT Micro 40 Watt, 45° gullwing-shaped soldering tip. Length: 20.0 mm, tip cross section: 2.0 mm x 1.2 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 022 S (chisel, 2.2 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 2.2 mm x 0.4 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 025 K (knife, 2.5 mm edge)

Weller RT Micro 40 Watt, 45° knife-shaped soldering tip. Length: 19.0 mm, tip edge: 2.5 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

RTM 030 K (knife, 3.0 mm edge)

Weller RT Micro 40 Watt, 45° knife-shaped soldering tip. Length: 19.0 mm, tip edge: 3.0 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

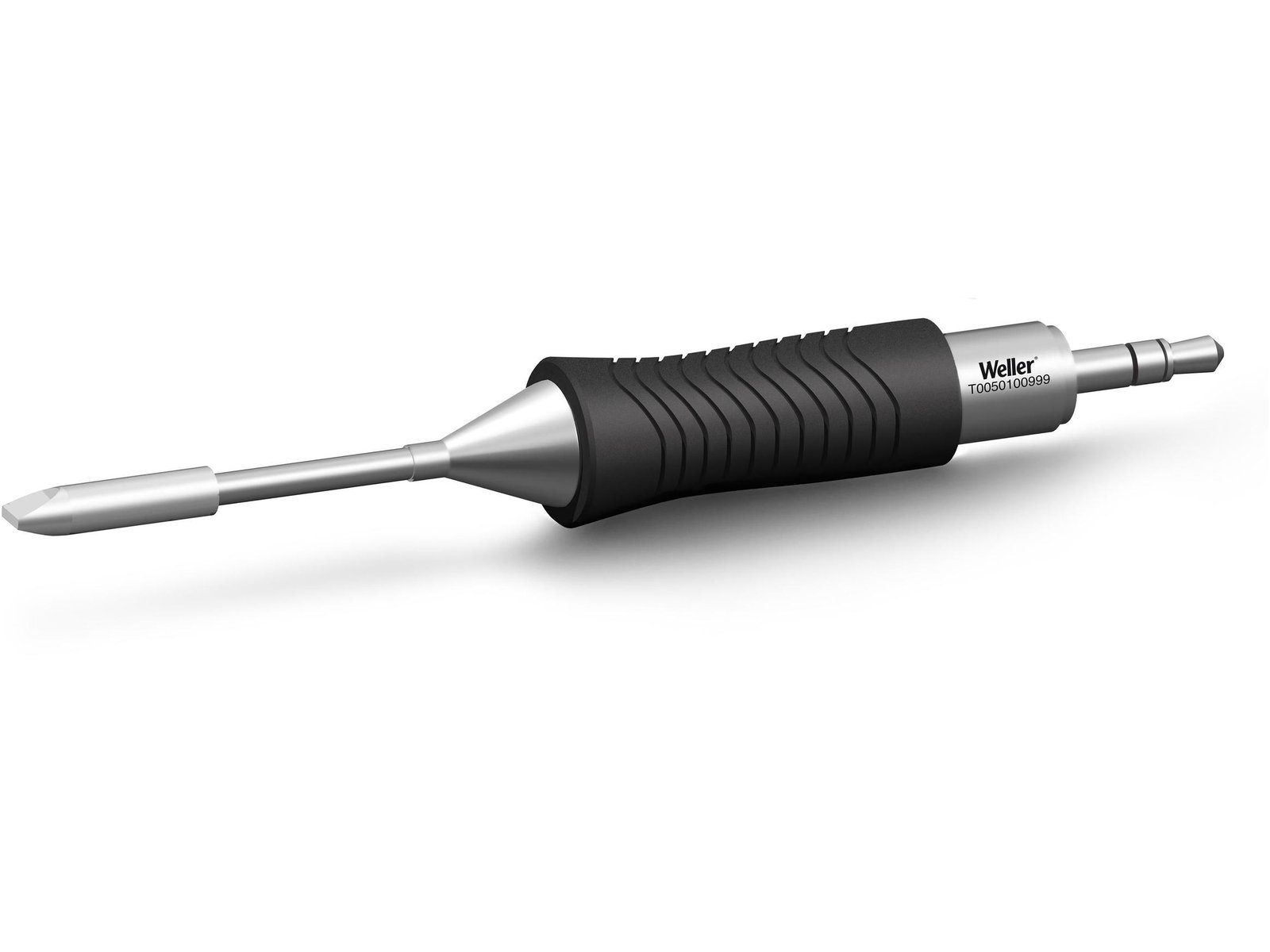

RTM 032 S (chisel, 3.2 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 17.5 mm, tip cross section: 3.2 mm x 0.9 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

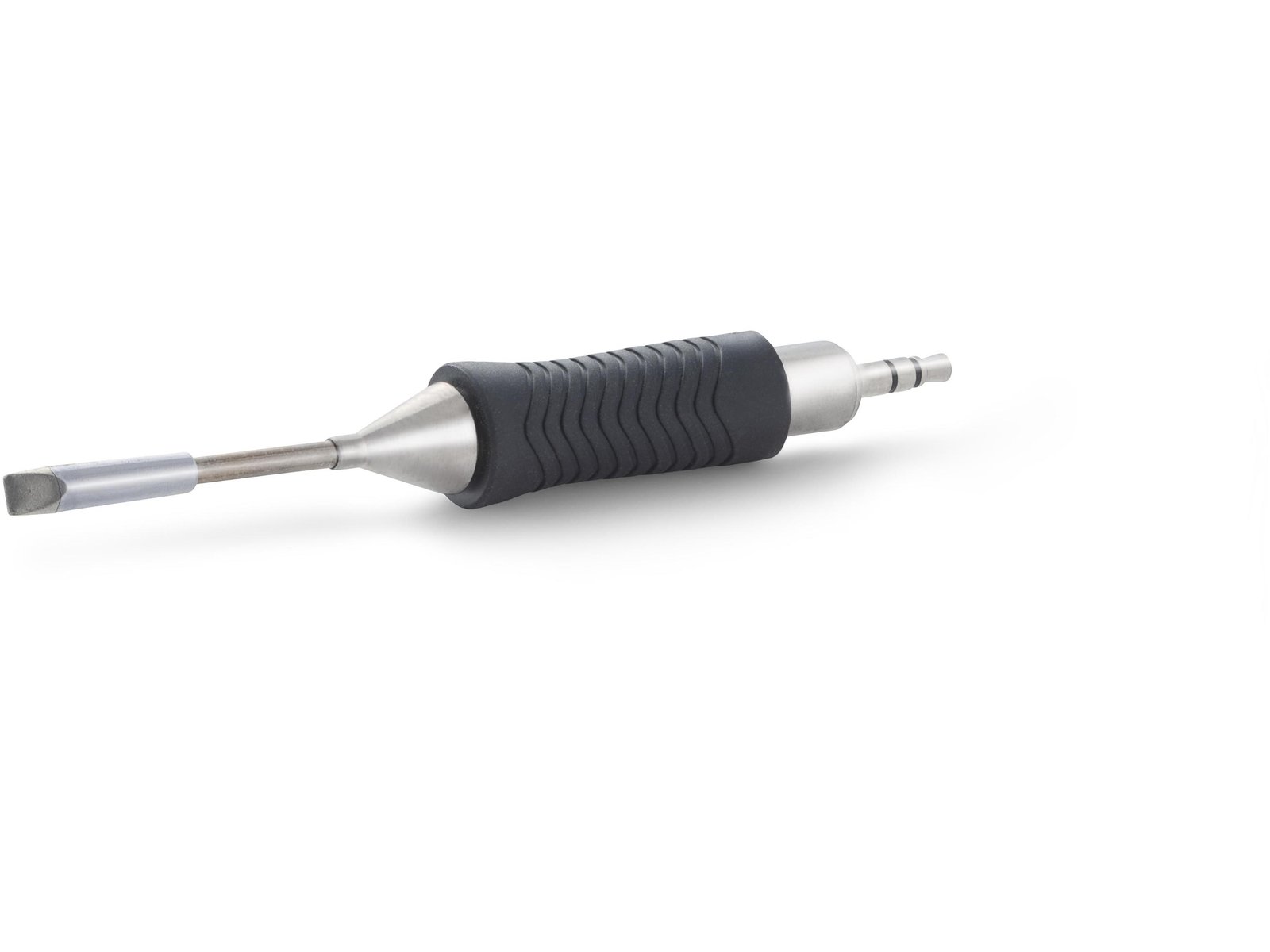

RTM 036 S (chisel, 3.6 mm wide)

Weller RT Micro 40 Watt, chisel-shaped soldering tip. Length: 18.0 mm, tip cross section: 3.6 mm x 0.9 mm. Compatible with WMRP and WXMP soldering irons.

$32 $8 US Shipping / $18 Worldwide

These high-quality, 40 Watt, wettable soldering tips compatible with Weller WMRP and WXMP soldering irons. The RT Micro series tips take only five seconds to heat up from 50°C to 350°C (120°F to 620°F). Available in a variety of geometries and sizes, including chisel, bevel cut, conical, gullwing, and knife, these tips are perfect for soldering medium to large parts. All tips in this series are wettable, meaning they will attract melted solder.

Manufacturer Apex Tool Group
Introduced Jan 31, 2020
Lifecycle Status Active
