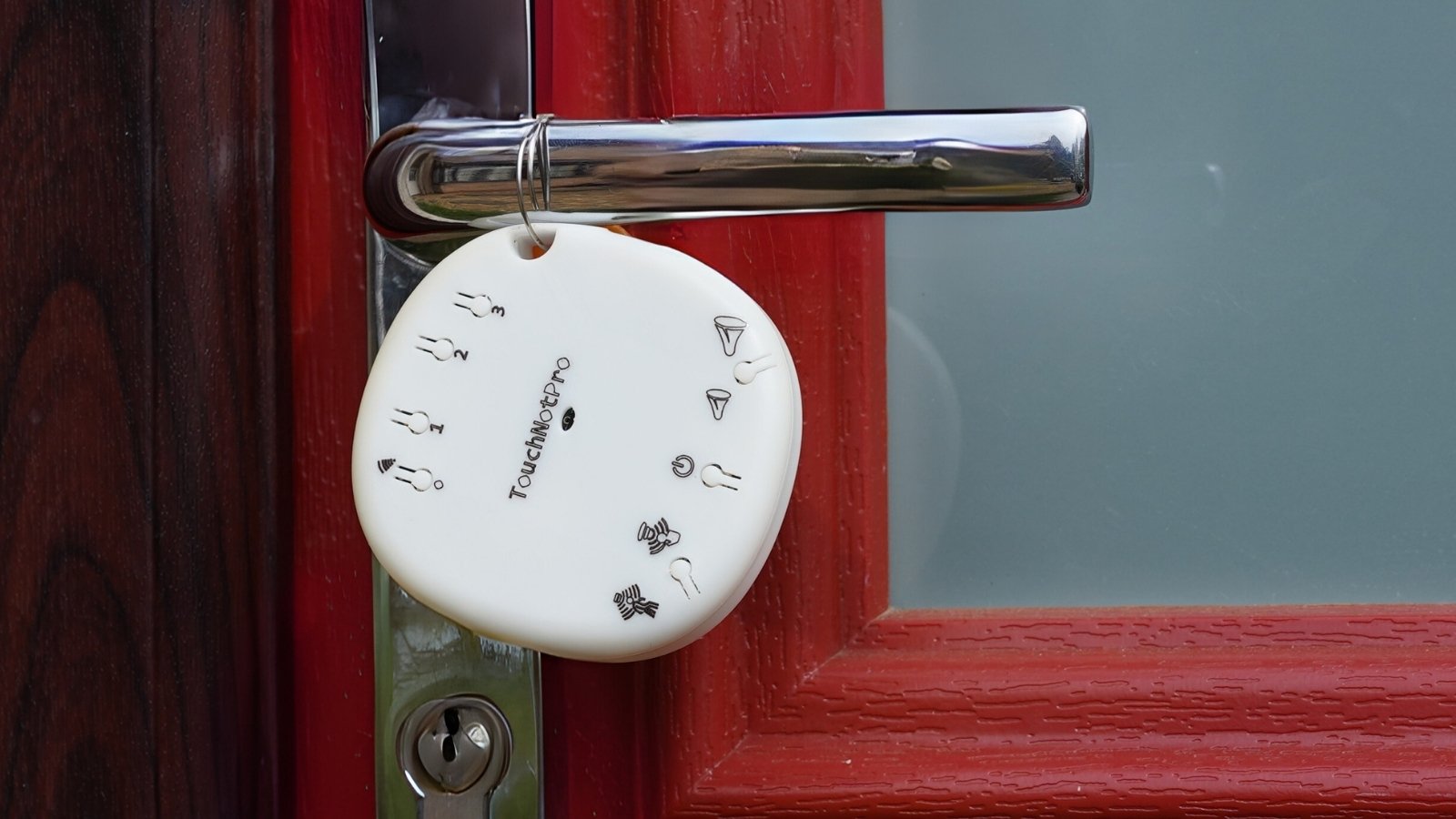

TouchNot Pro is a smart tag designed to safeguard your belongings. Its compact, discreet case can attach to anything you want to protect. It has both touch and motion sensors onboard—when any of these are triggered, TouchNot Pro sounds a loud alarm and sends a notification to you and any other registered users. Its internal battery can last months on standby, letting you leave it where it’s needed for a long time without charging it.

Beyond that, it offers useful features, some of which are not found in existing products. It protects your privacy because it uses a suite of sensors instead of cameras. Easy-to-use, subscription-free Cloud IoT connectivity lets you use TouchNot Pro for years without any additional fees.

Protect What’s Precious

TouchNotPro goes further than other camera-based security systems, letting you attach a physical alarm to whatever objects you want. Thoughtful features like its auto-wake functionality, customizable scheduling, smart home integration, and a silent alarm mode all let you use it however you see fit. When the alarm is triggered, you can quickly deactivate it using a four-button PIN with TouchNot Pro’s physical buttons.

It can be used with or without the companion app, letting you use it in places where you don’t have nearby Wi-Fi. No matter the level of your technology skills, TouchNot Pro is simple for anyone to set up and fast to deploy.

An advanced, optional feature enables motion pattern detection:

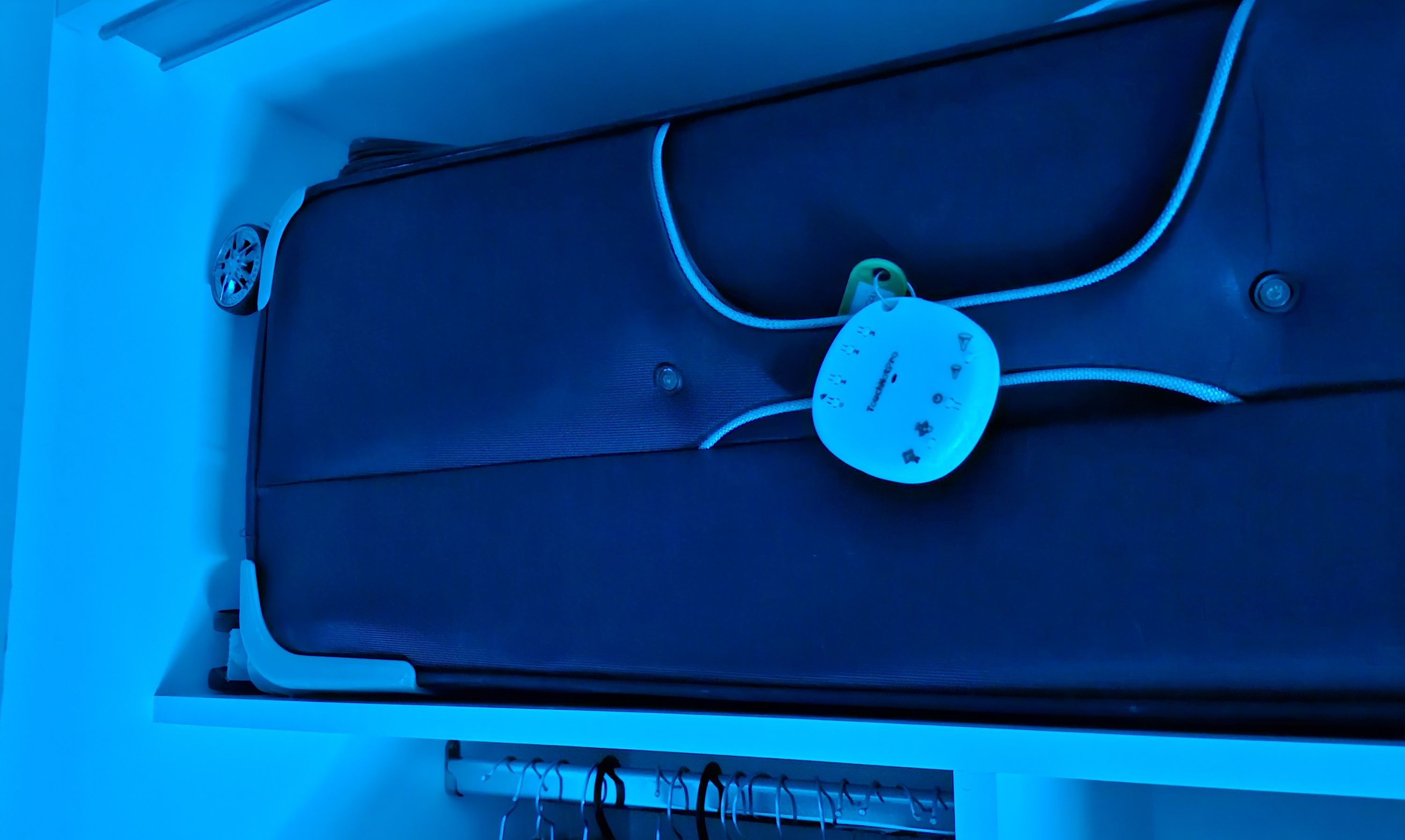

Whether you’re a tourist who wants to protect their luggage in a hostel or a parent looking to discourage children from approaching household dangers like a gas stovetop, TouchNot Pro can give you increased peace of mind.

Features & Specifications

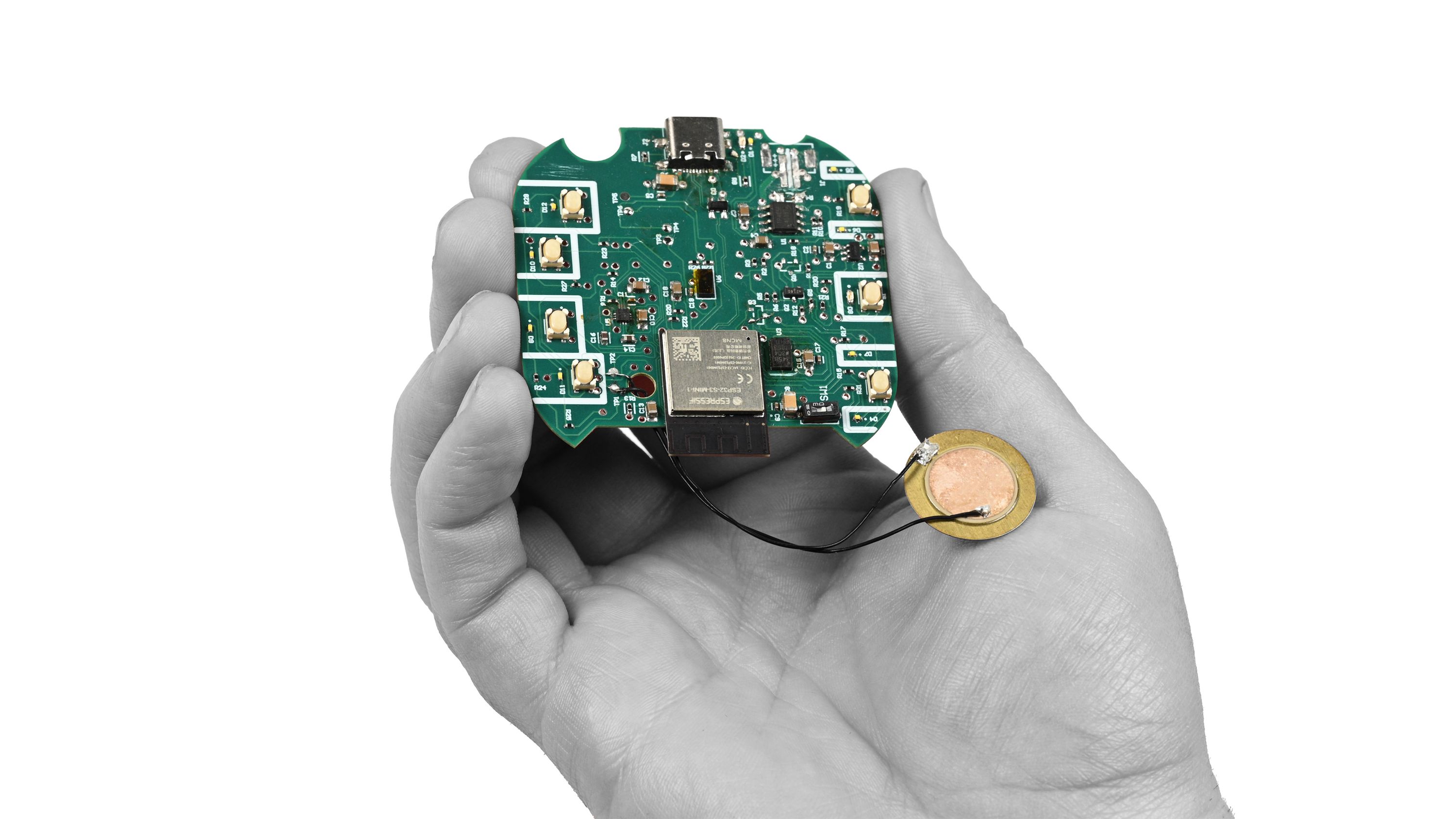

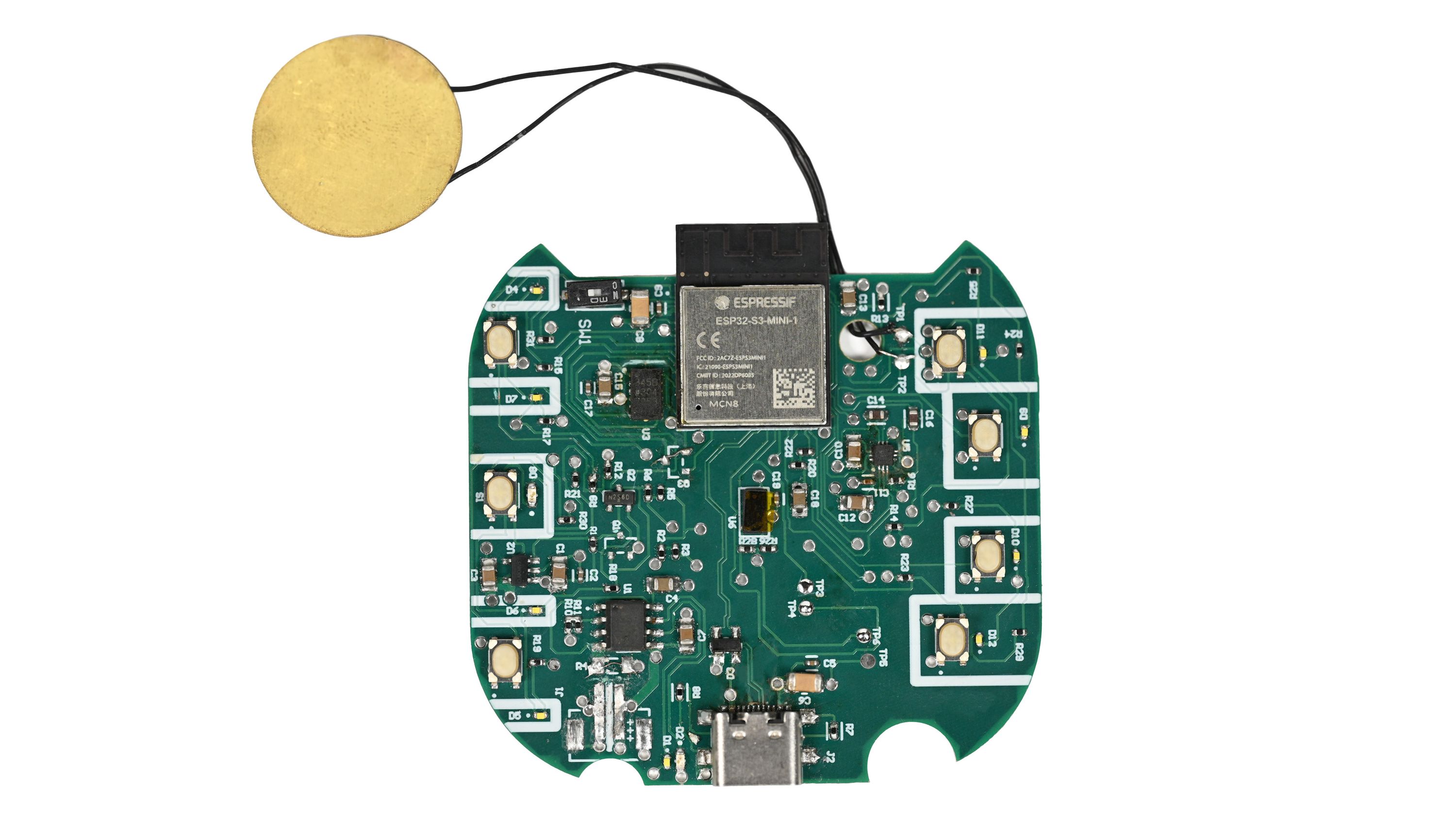

Processor

• ESP32-S3

Power

• Average 70 uA power draw (both sensors armed, sleep mode)
• ~300 days uptime (assuming the alarm is not triggered)
• 9 uA deep sleep
• Built-in 500 mAh Li-Po battery
• USB Type-C charging port

Stated battery life is based on the current HW/FW revision and is subject to ongoing optimizations

Sensors

• Analog Devices ADXL345 touch/vibration sensor
• Texas Instruments VL53l0x time-of-flight motion sensor

Sound

• 30 mm buzzer
• PAM8907 buzzer driver

User Interface

• 9x indicator LEDs
• 7x buttons
• Android and iOS apps for advanced setup

Connectivity

• USB Type-C (debug)
• Wi-Fi & Bluetooth LE
• Cloud IoT connectivity (ESP Rainmaker server)
• Automatic Wi-Fi credential provisioning from the phone app

Weight & Size

• 70 x 67 x 20 mm (2.76 x 2.64 x 0.79 in)
• 30 g (1.06 oz)

Open Source

TouchNot Pro is open hardware and uses open software. Both are still under development, but we will make files available under a standard license on our GitHub before we ship to backers. More design support files will be published after devices start shipping.
