ANAVI Macro Pad 8
Open source, programmable, eight-key keypad with backlighting, underlighting, and OLED screen
ANAVI Technology
Home Automation
Microchip

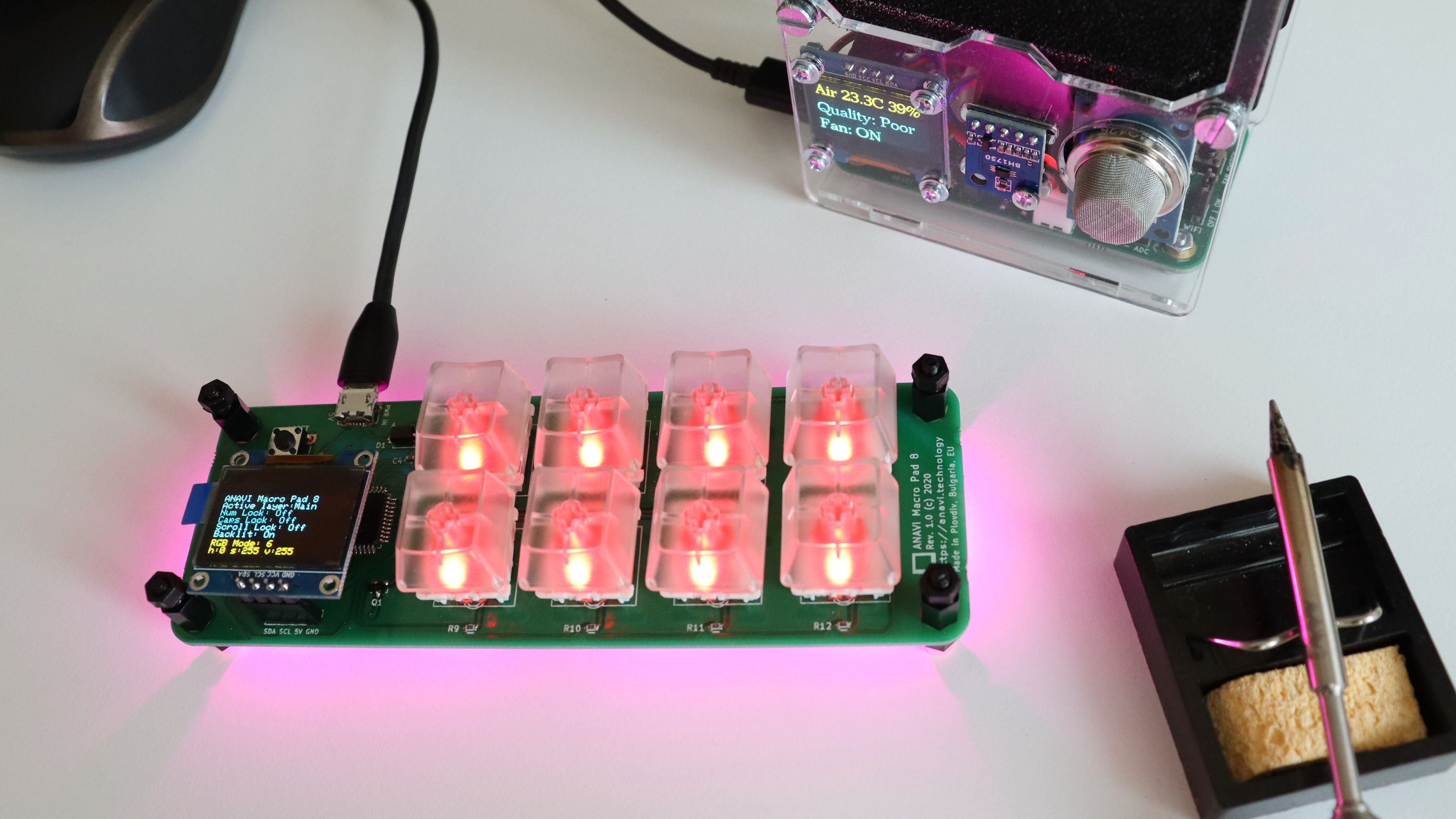

ANAVI Macro Pad 8 is an open source, custom-programmable, mini 8-key keyboard/keypad. Each key can be reprogrammed to activate a macro or even a dedicated shortcut - all without any coding experience! Powered by the advanced, but easy-to-use Quantum Mechanical Keyboard (QMK) open source firmware.
ANAVI Macro Pad 8 can be customized to fit multiple use cases across various industries: video or audio editing, video conferencing software, entertainment broadcasting, product and graphic design, gaming, engineering, programming, etc. It boosts your daily productivity by providing amazing level of control with gorgeous light effects on your fingertips!
Getting started with and assembled ANAVI Macro Pad 8 is easy. Just connect it to your Linux, Windows, or macOS computer, and use a browser to configure and load your kewswitch macro or shortcut settings.
ANAVI Macro Pad 8 relies on the Quantum Mechanical Keyboard (QMK) firmware, To configure and modify the keyboard layouts you can use QMK Configurator, an online graphical user interface that generates QMK firmware hex files directly in a web browser or use the source code. Press the RESET button on ANAVI Macro Pad 8 to enter flash mode and upload the new firmware.
Furthermore, ANAVI Macro Pad 8 is powered by a Microchip ATmega32U4 microcontroller, so it is possible to use as an Arduino Leonardo-compatible development board and upload Arduino sketches through Arduino IDE or PlatformIO.
ANAVI Macro Pad 8 is an entirely open source project that combines open source hardware with free and open source software.

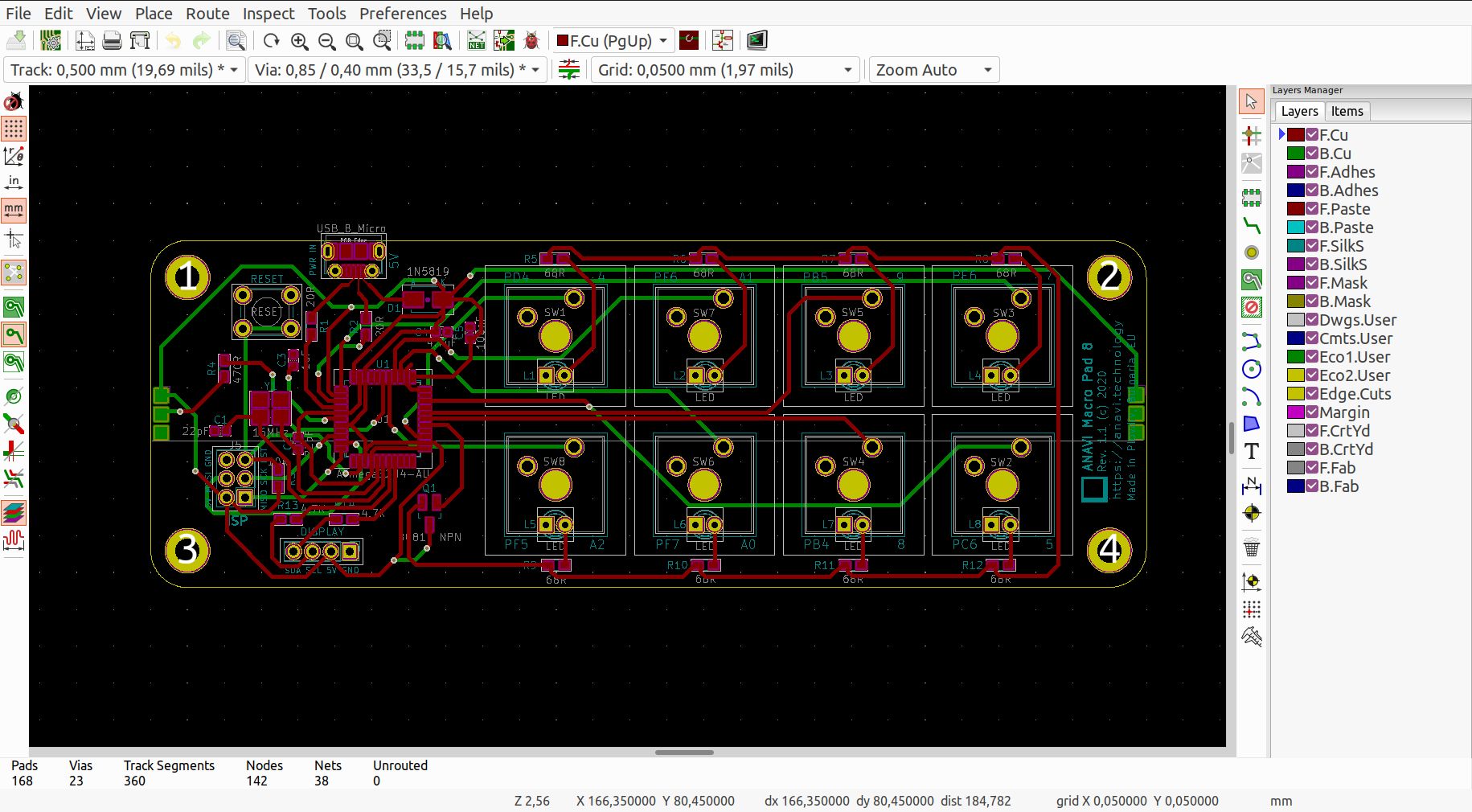

Only free and open source software tools like KiCad, OpenSCAD, and Inkscape were used to design ANAVI Macro Pad 8. Quantum Mechanical Keyboard (QMK) is the default open source firmware. Arduino sketches will be available as examples for people interested in explore embedded development with a mini keyboard. Source code and schematics are available on GitHub. A comprehensive user’s manual will be provided.
All printed circuit boards will be made in Plovdiv, Bulgaria, EU and packaged in eco-friendly recyclable cardboard boxes.
| Maker Kit | Developer Kit | |
|---|---|---|
| ANAVI Macro Pad 8 | Yes | Yes |
| WS2812B LED strip | Yes | Yes |
| 8 Gateron red mechanical switches | Optional | Yes |
| 8 translucent keycaps | Optional | Yes |
| Keyswitch backlighting | Optional | Yes, red LEDs |
| Acrylic enclosure | Optional | Optional |
| Mini OLED display | Optional | Optional |
NOTE: USB to Micro USB cable is not included in any of the kits.

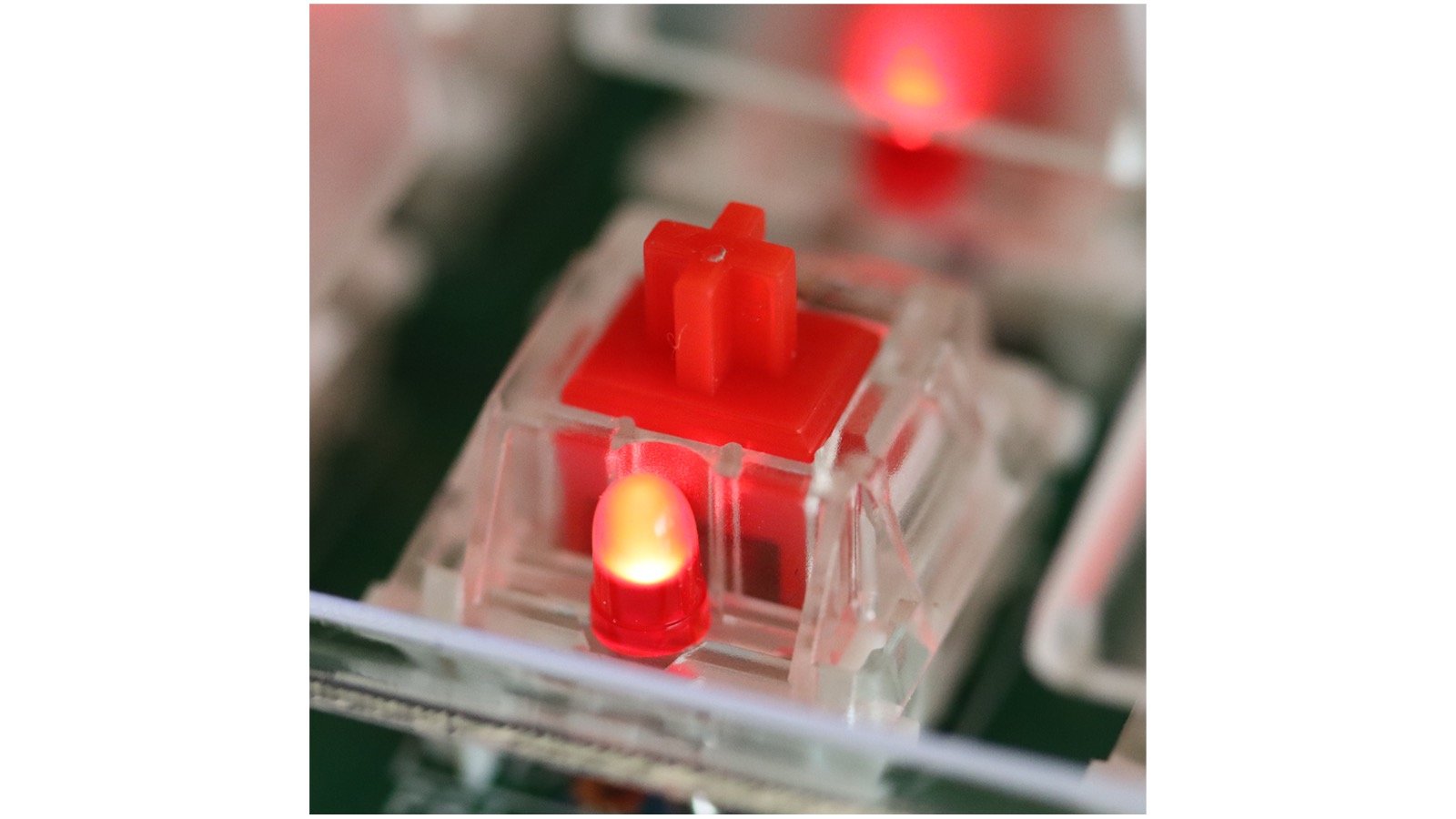

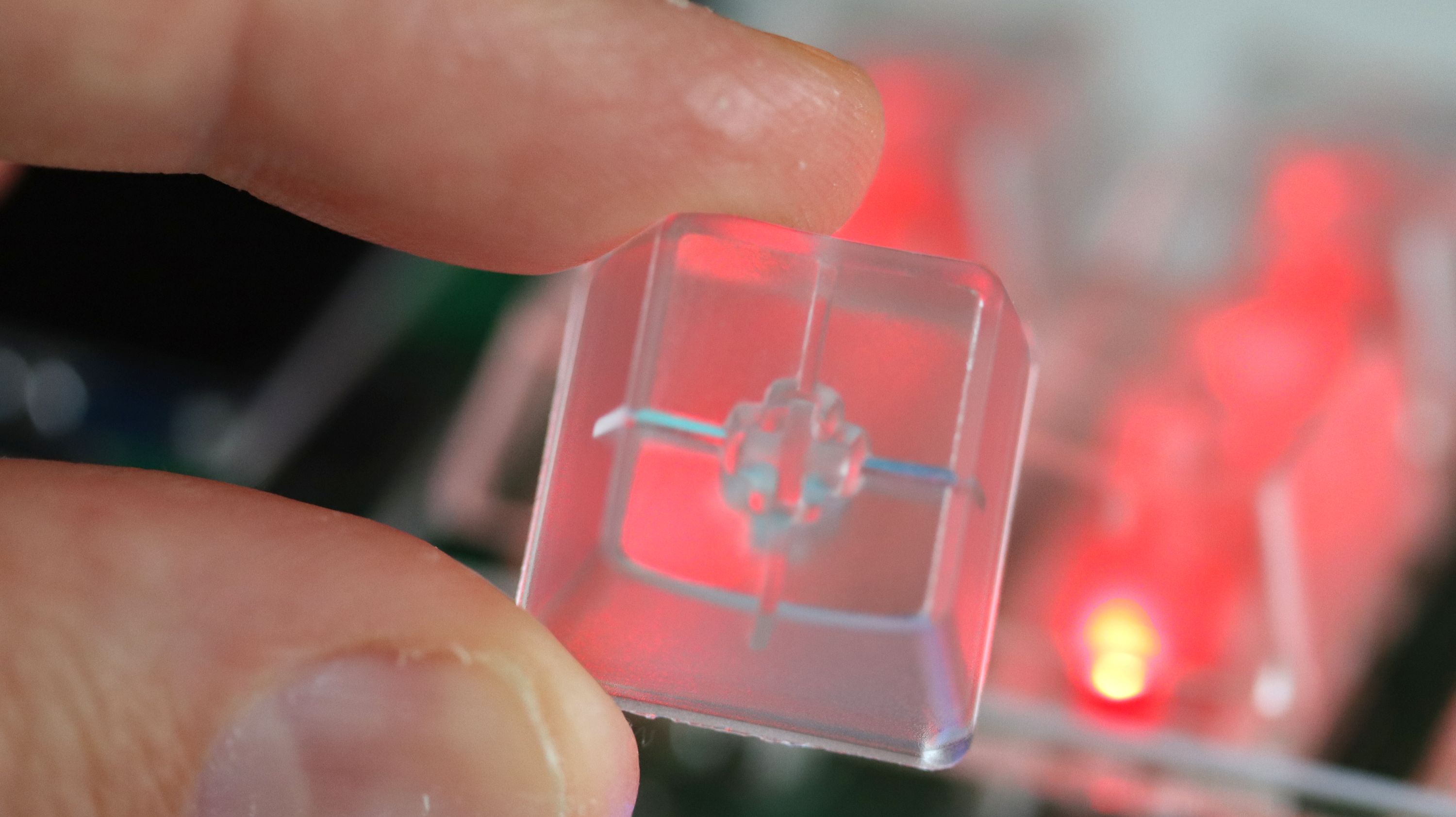

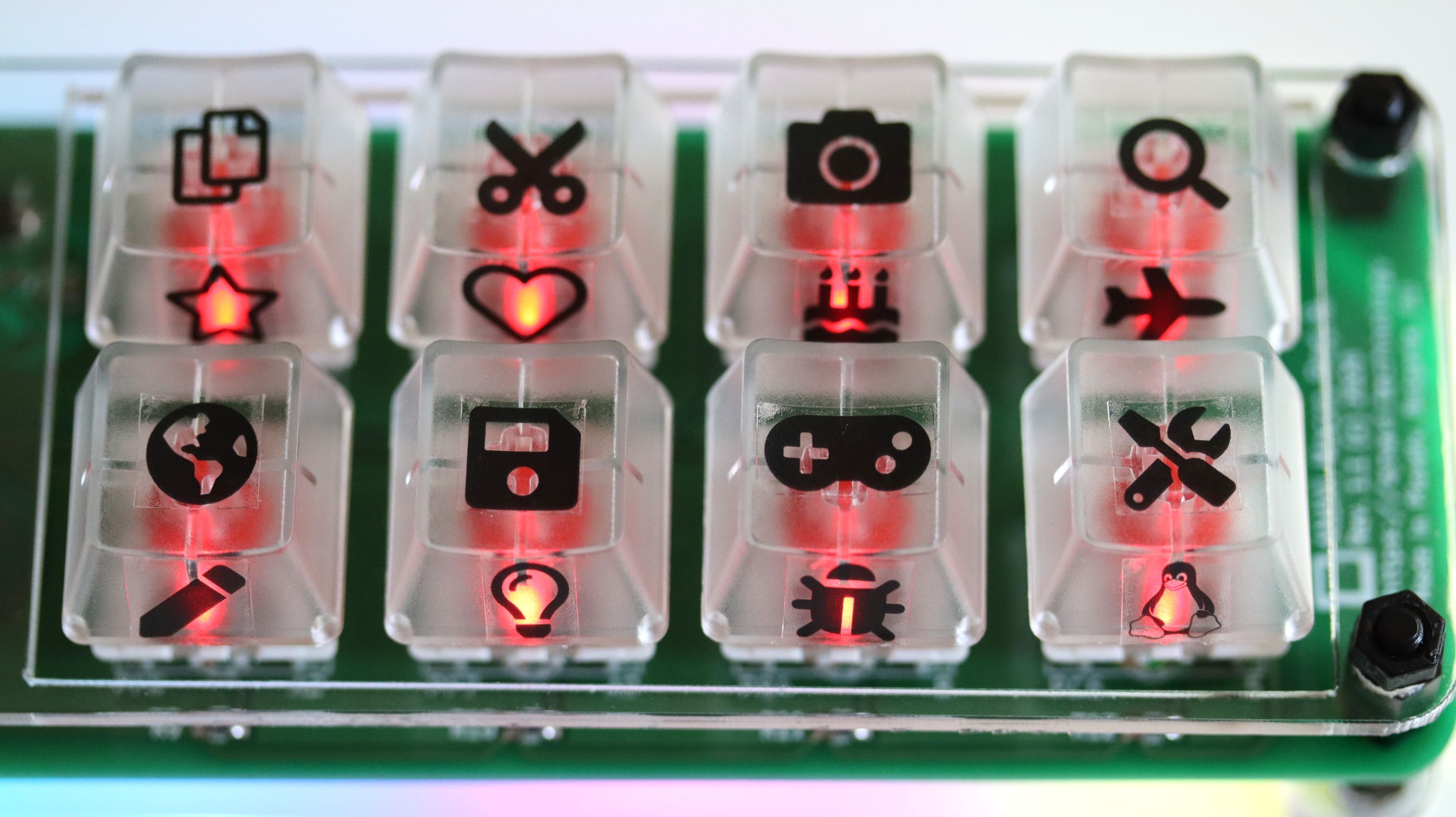

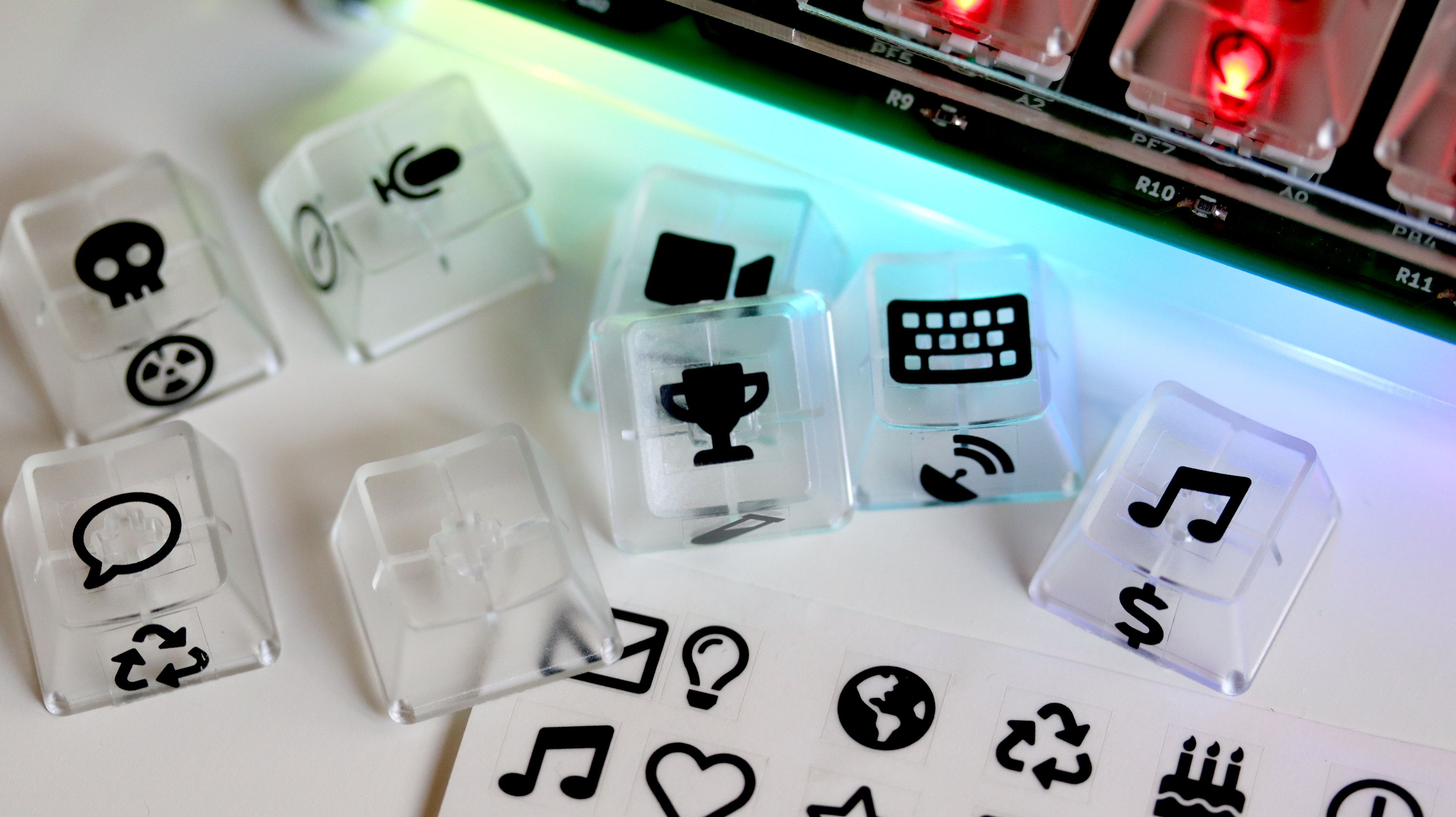

The Developer Kit does not require any soldering. It features Gateron red mechanical switches and translucent keycaps with red backlighting. The Developer Kit is easy to get started with, and it is perfect even for newbies. Just pop the keycaps on, and you’re ready to go.
The Maker Kit is for advanced users only. It requires soldering, but provides you the opportunity to pick your own mechanical switches (compatible with Cherry MX plate footprint), color of 3 mm backlit LEDs, and keycaps. These can easily be purchased from Mouser or other distributors of electronic components.

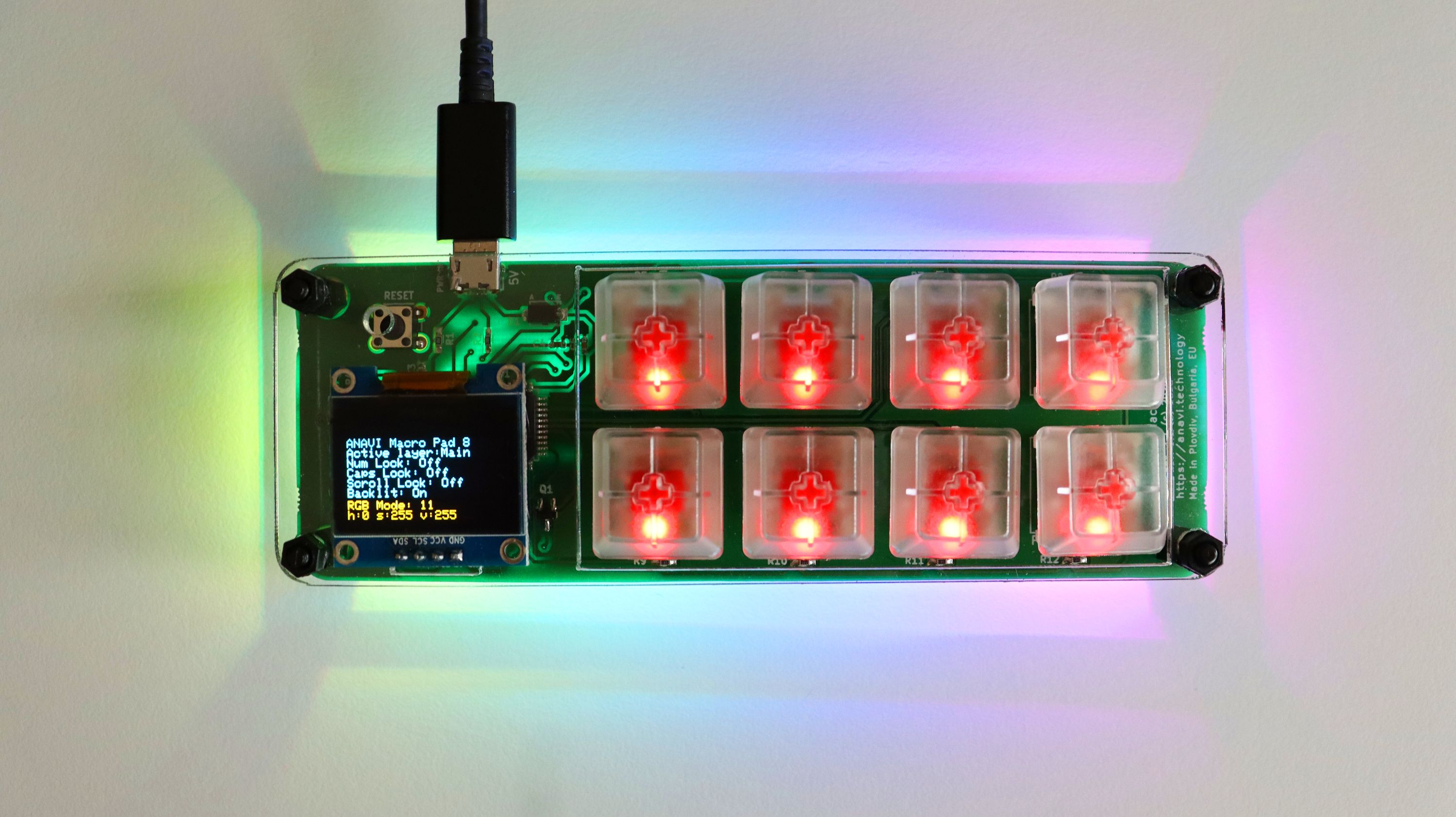

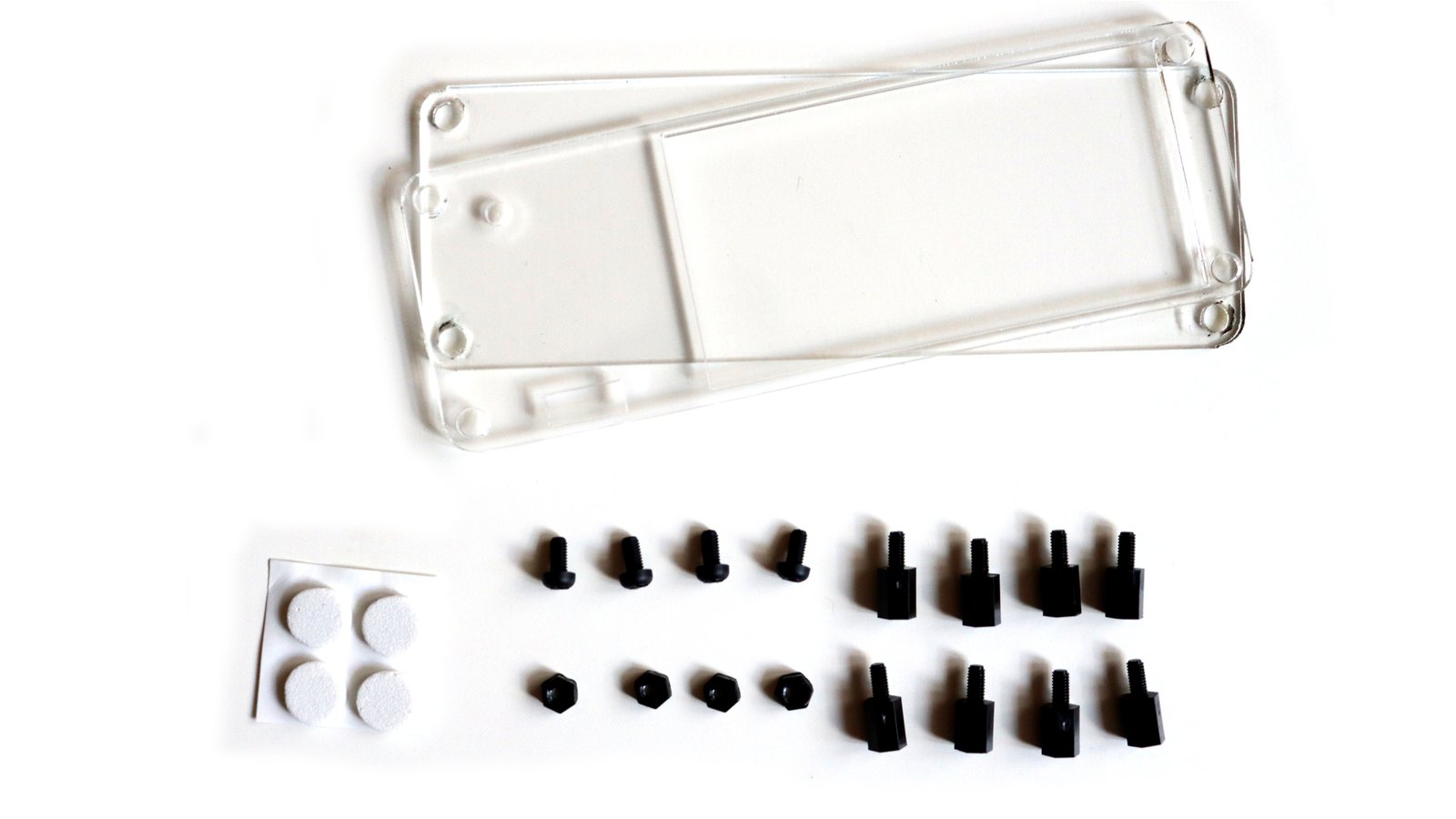

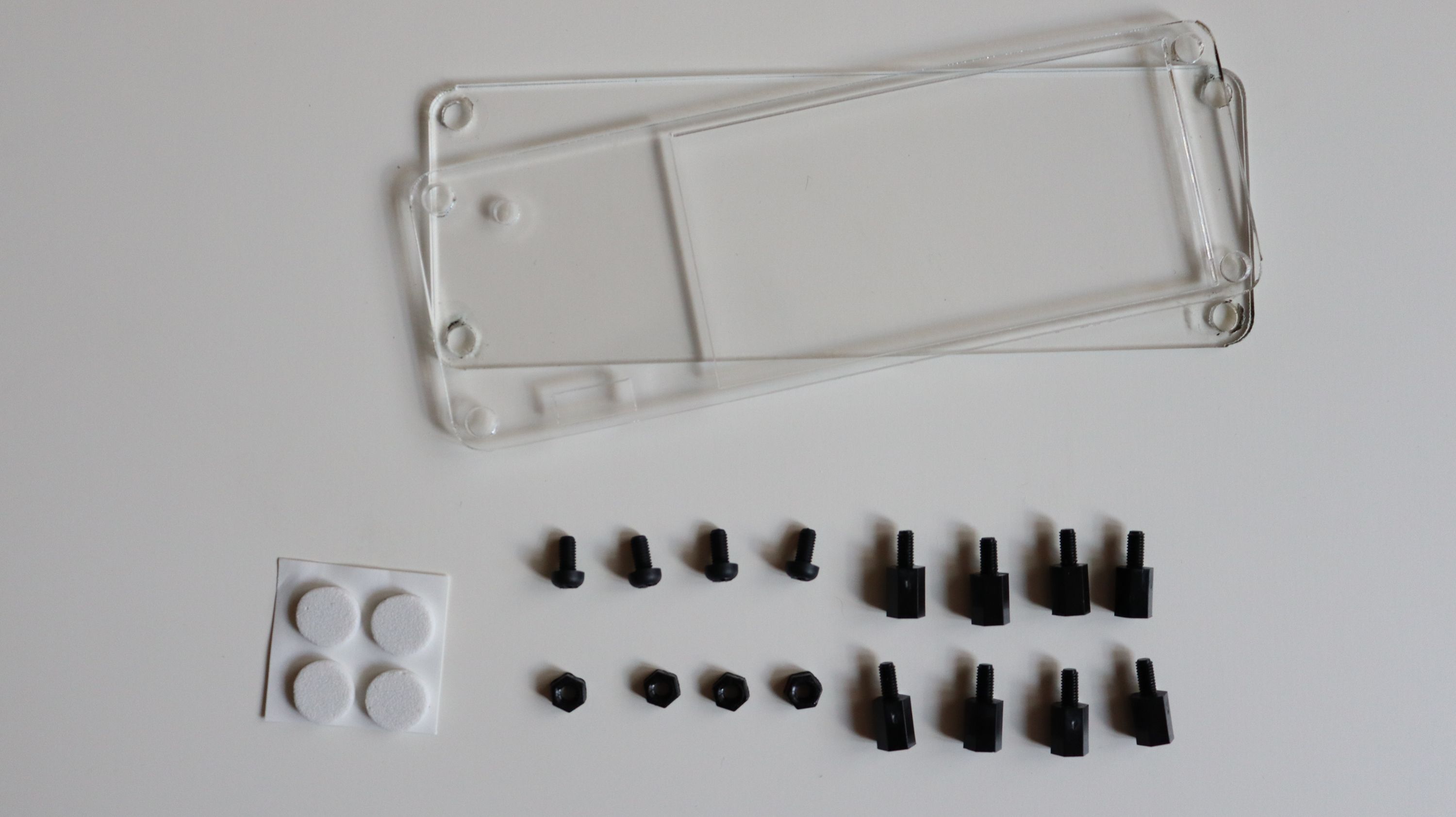

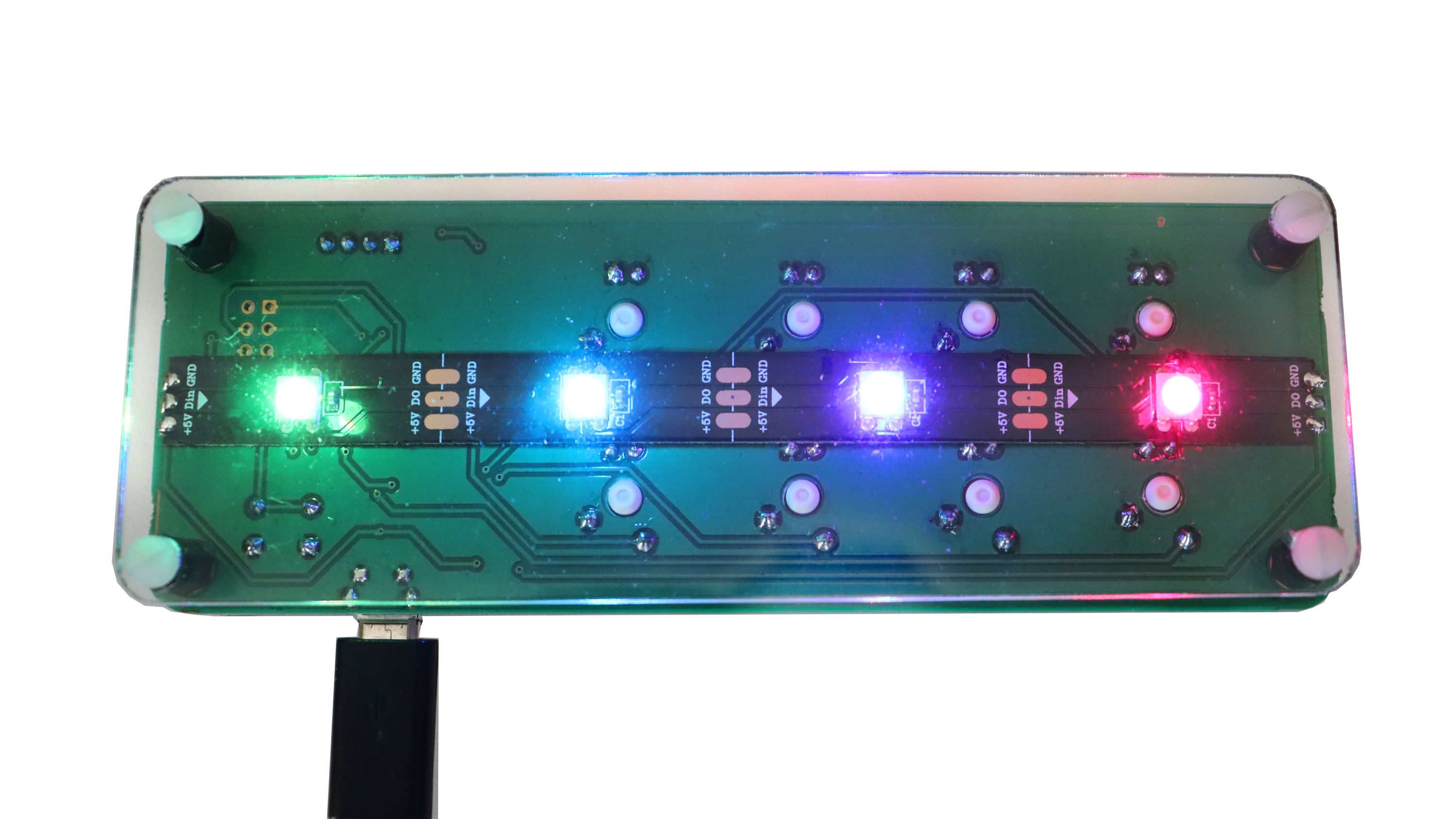

This enclosure gives your ANAVI Macro Pad 8 a bit of protection, lifts the board off the table so the underlighting is maximally effective, and helps keep the board in place with four rubber bumpers. The acrylic panels are screwed together easily with included hardware.

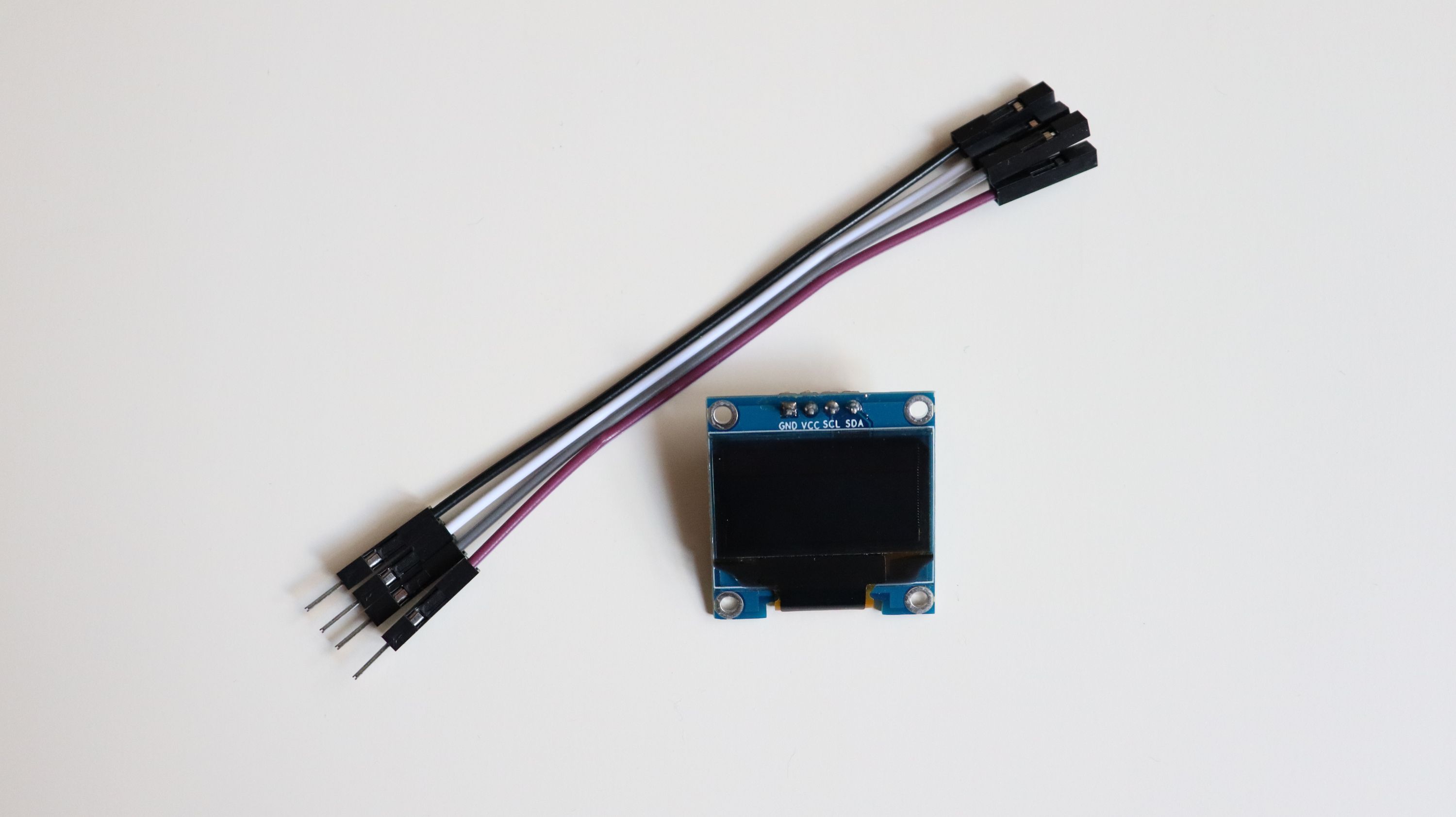

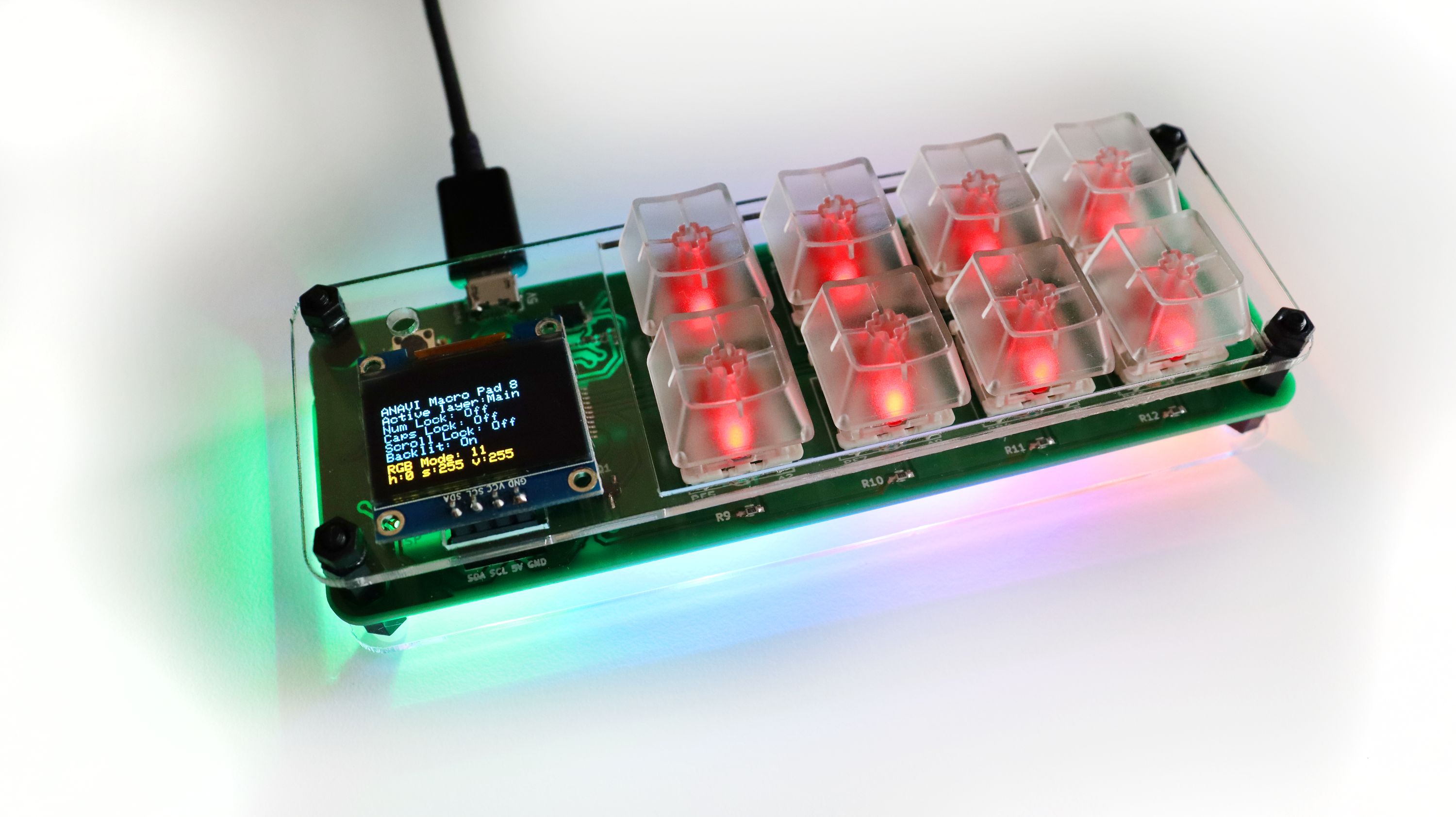

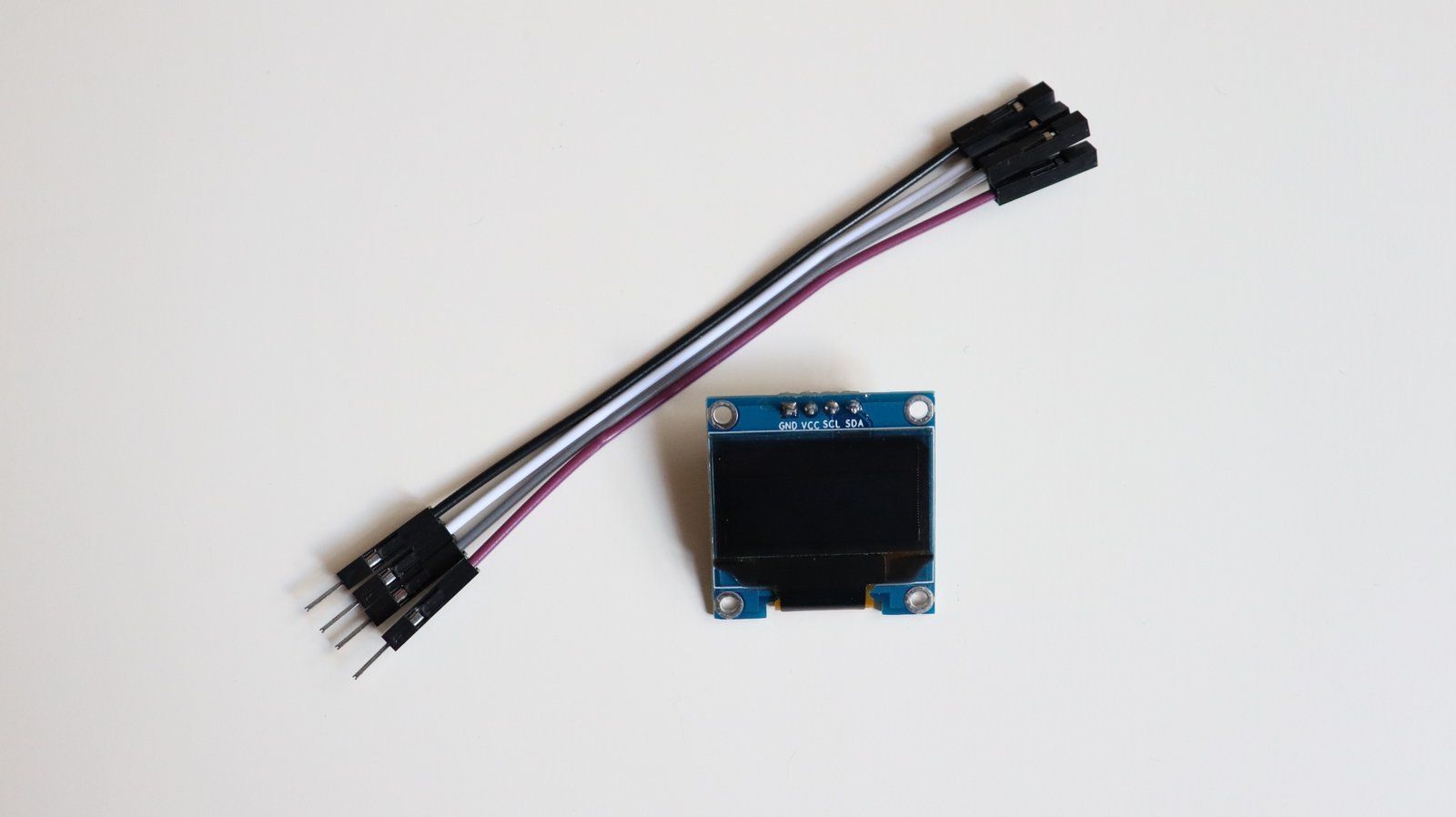

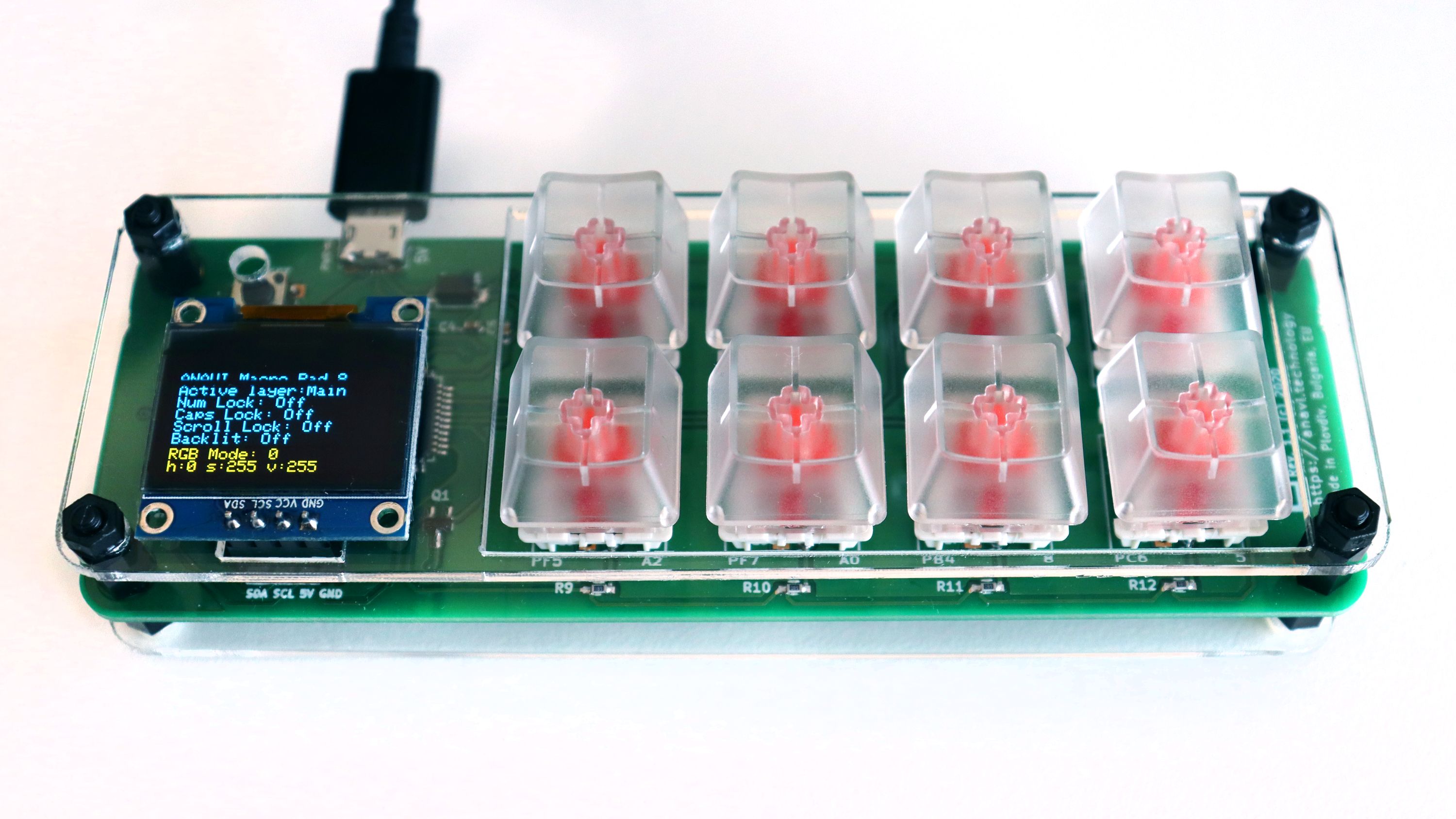

A 0.96" mini OLED display that connects with the board over an I²C interface. A short extension cable is also included if you’d rather have the display slightly separate from the board. The display can be programmed with whatever information you want through Arduino IDE.
There are literally hundreds of mechanical keyboards on the market. Unlike the rest, ANAVI Macro Pad 8 is entirely open source, affordable, compact, highly customizable and suitable for a wide range of applications. The developer kit is super easy to assemble and requires no soldering!
ANAVI Macro Pad 8 is an entirely open source project powered by the QMK firmware. Schematics and examples are available in our GitHub repositories. Please have a look at the following links:
If you have a question about ordering, paying, or shipping, please refer to The Crowd Supply Guide.
If you have a technical question about the operation of ANAVI Macro Pad 8 or any of its applications, please visit our website or contact us at info@anavi.technology.
"This QMK-based board features customizable macro keys, lighting effects, and OLED display — and will be fully open in firmware and hardware."
"If you are searching for a low-cost eight key keypad, with backlighting, and the lighting and handy OLED screen, the open source ANAVI Macro Pad 8 is definitely worth more investigation."
Produced by ANAVI Technology in Plovdiv, Bulgaria.
Sold and shipped by Crowd Supply.

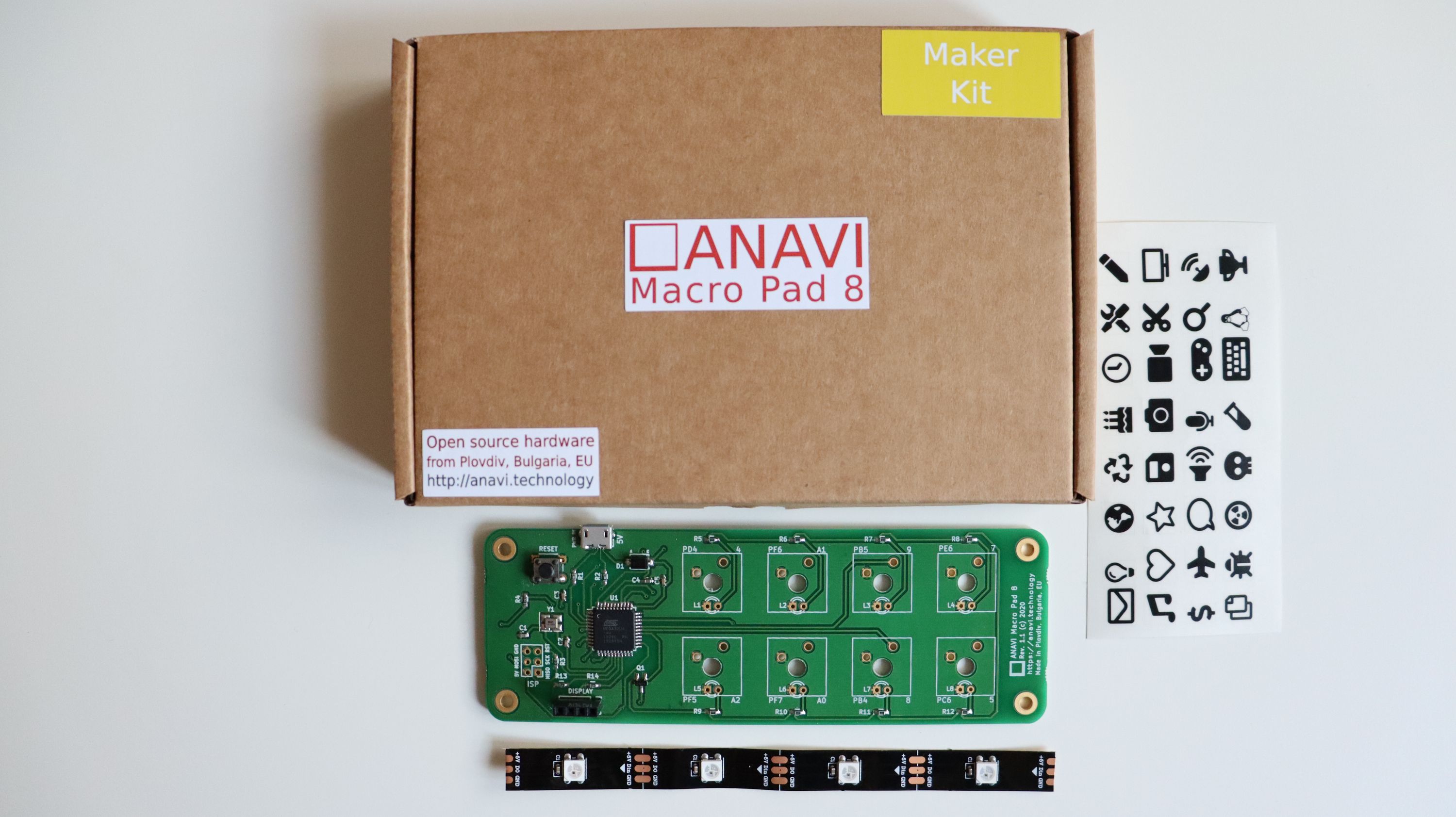

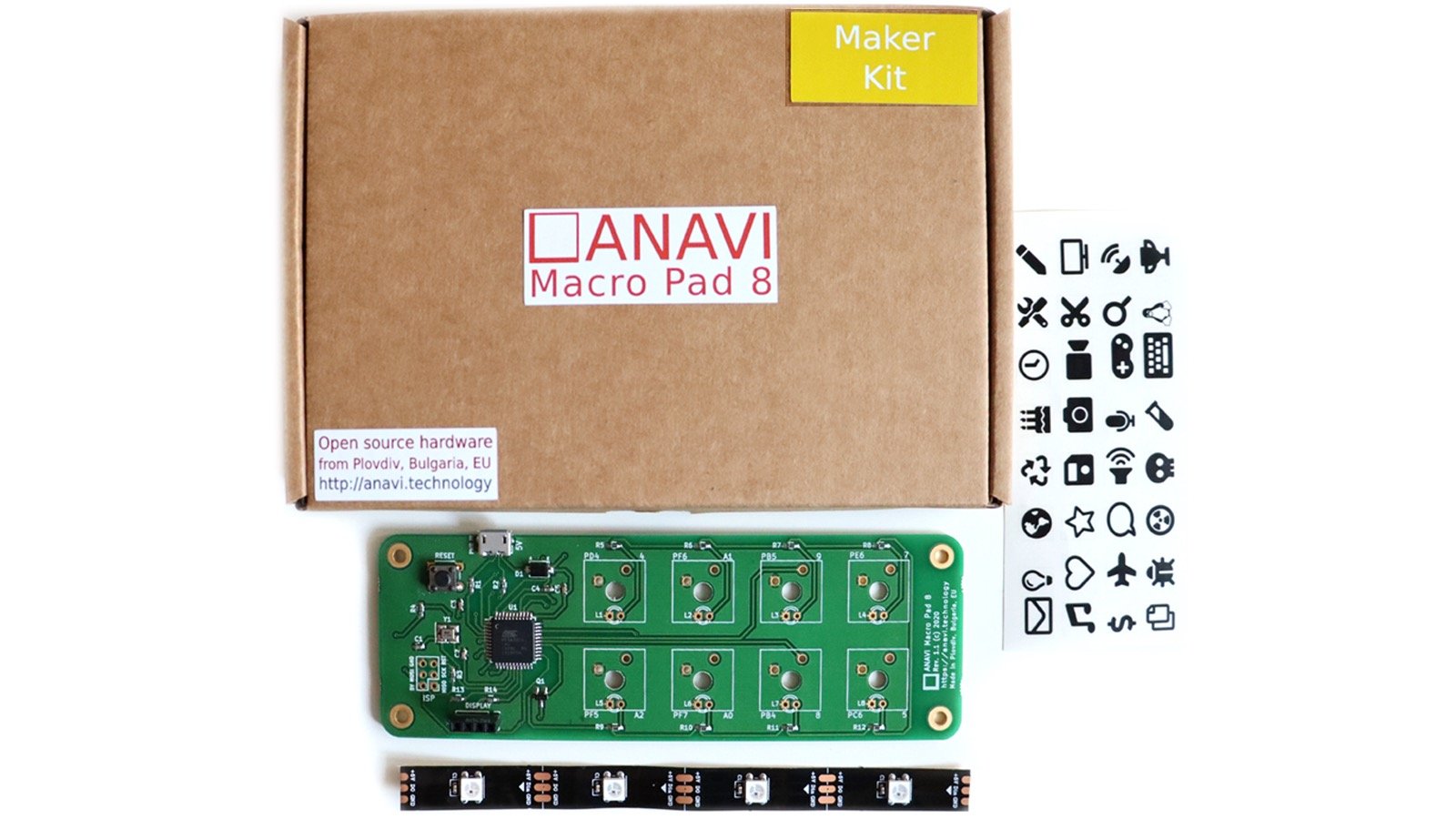

A kit for anyone interested in using their own mechanical switches and keycaps. Requires soldering. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1).

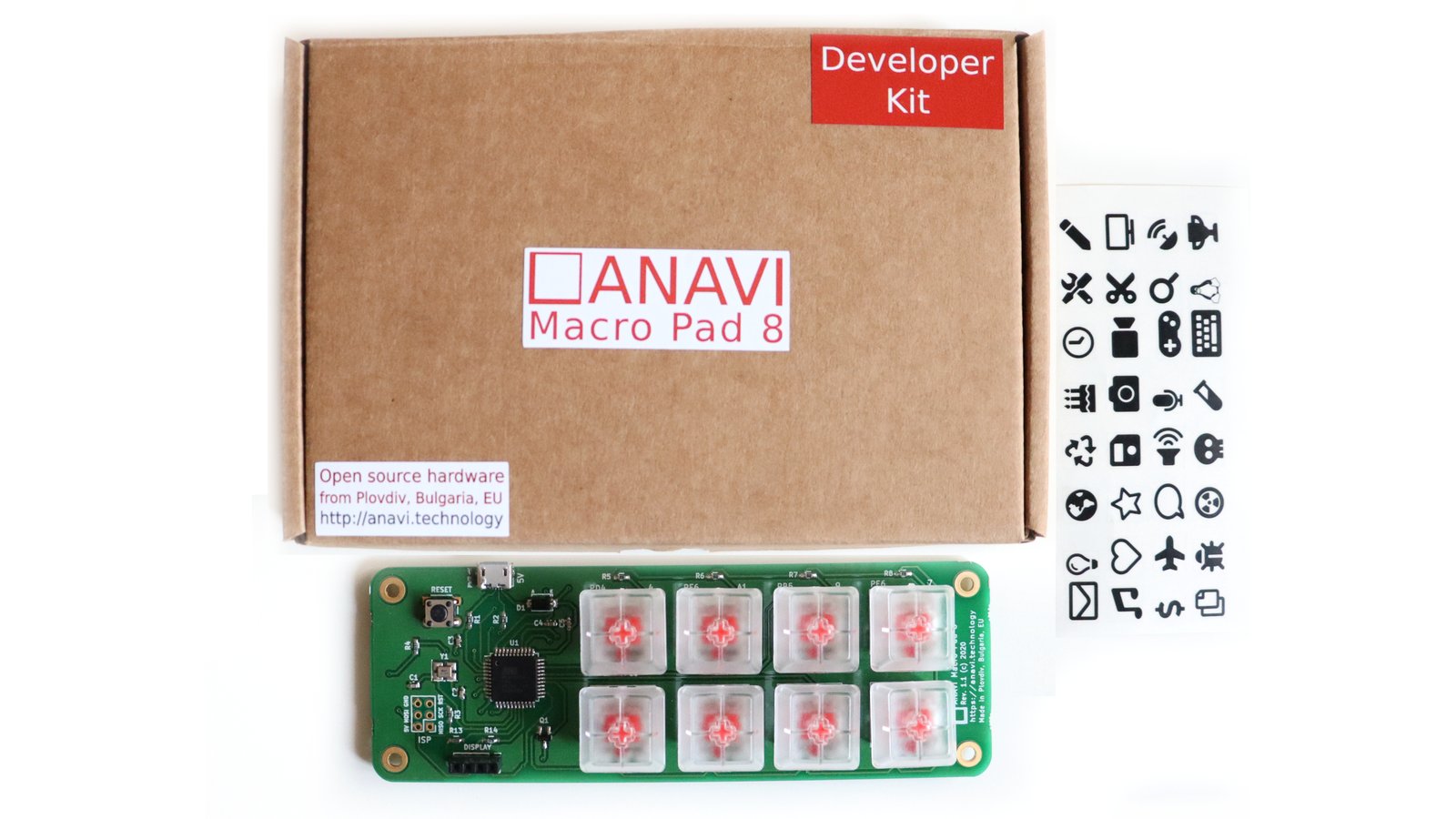

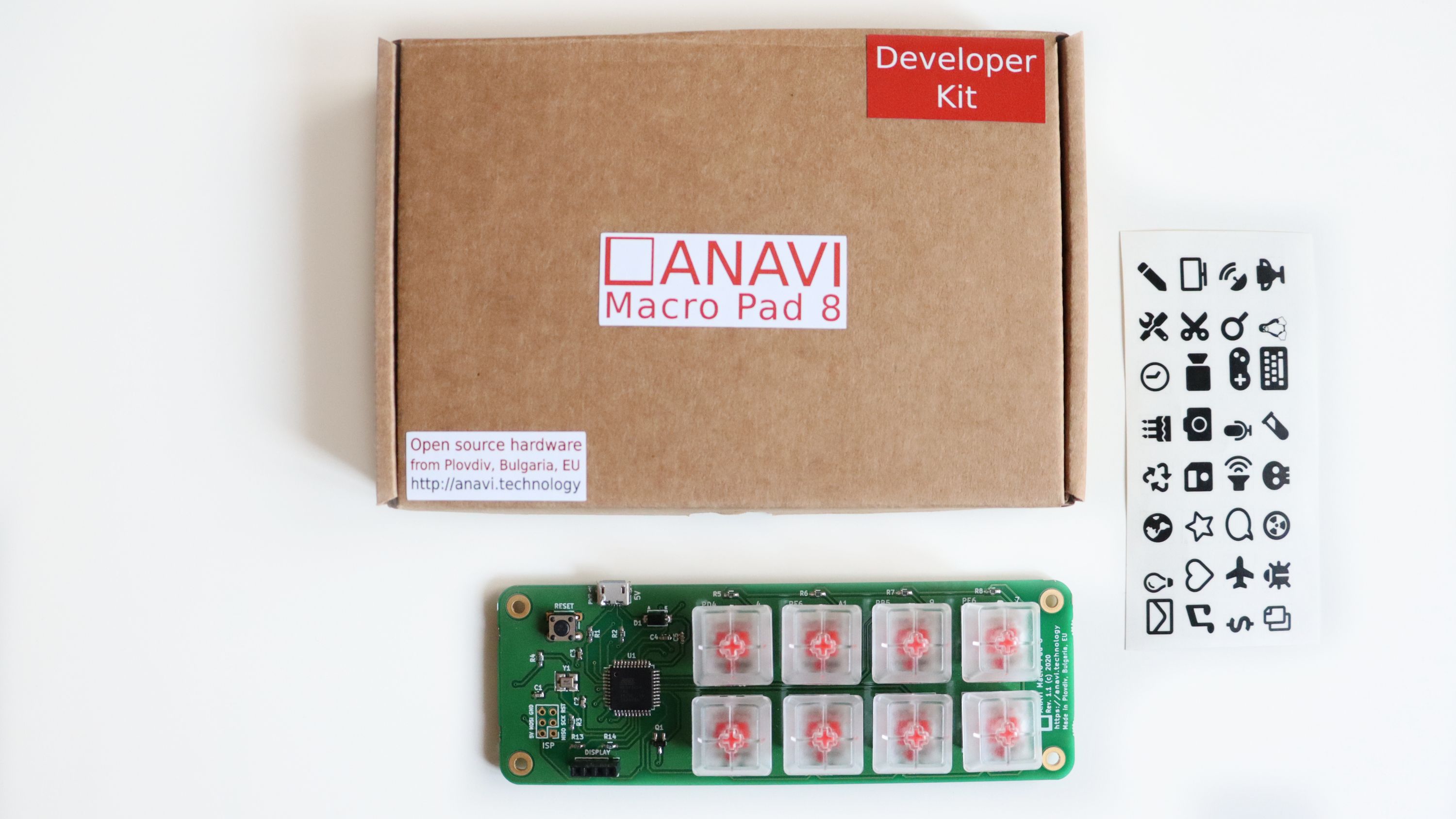

The ultimate solution! No soldering required. Includes ANAVI Macro Pad 8 printed circuit board with Microchip ATmega32U4 (1) and WS2812B LED strip (1), Gateron red mechanical switches (8), transparent keycaps (8).

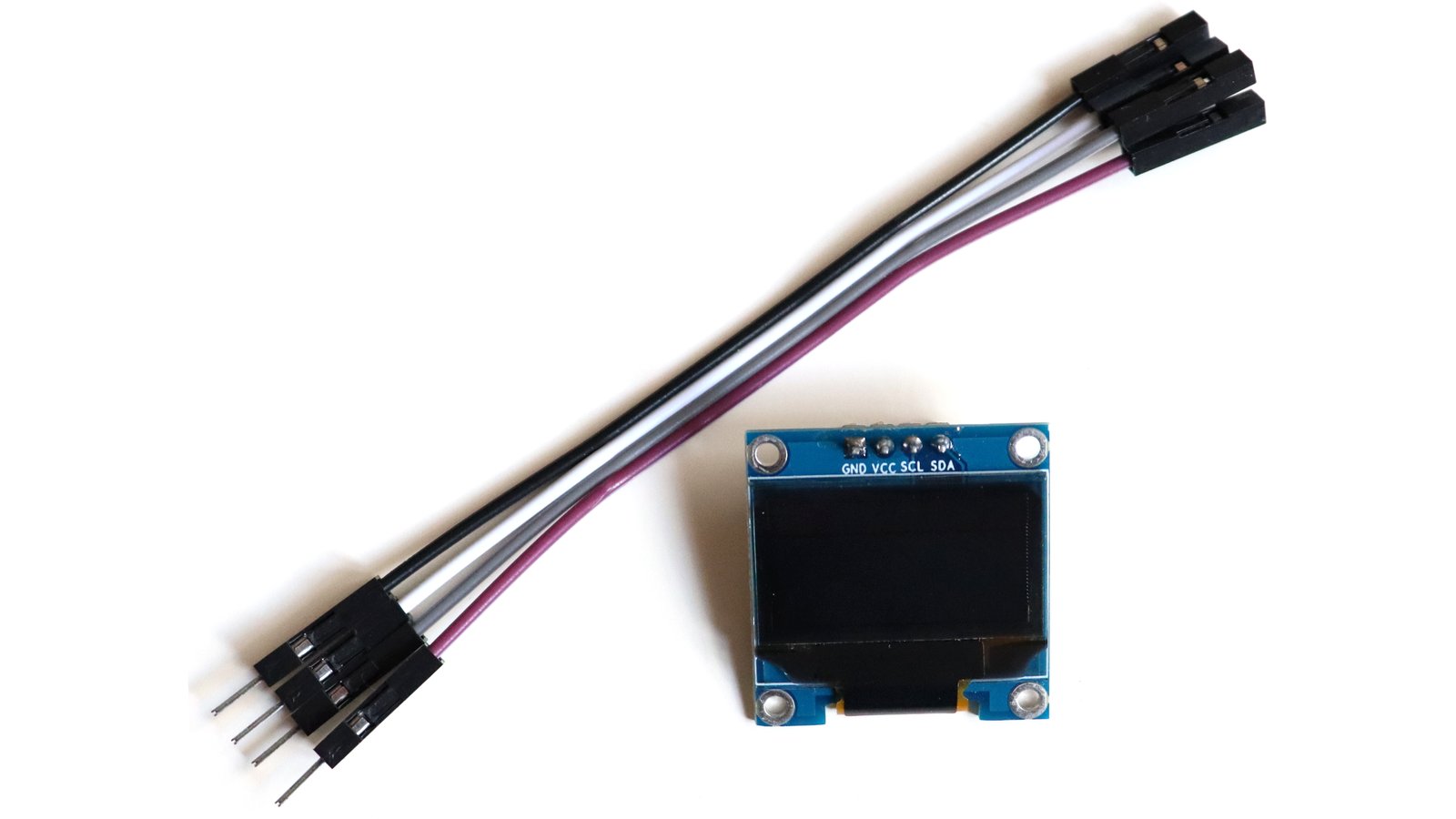

Mini 0.96" OLED I2C display, yellow-blue. For use with ANAVI Macro Pad 8.
Acrylic enclosure for ANAVI Macro Pad 8.
Accessories for the ANAVI Macro Pad 8 Maker Kit: Switches, keycaps and red LEDs. (These accessories come included and pre-soldered for the Developer Kit.)
