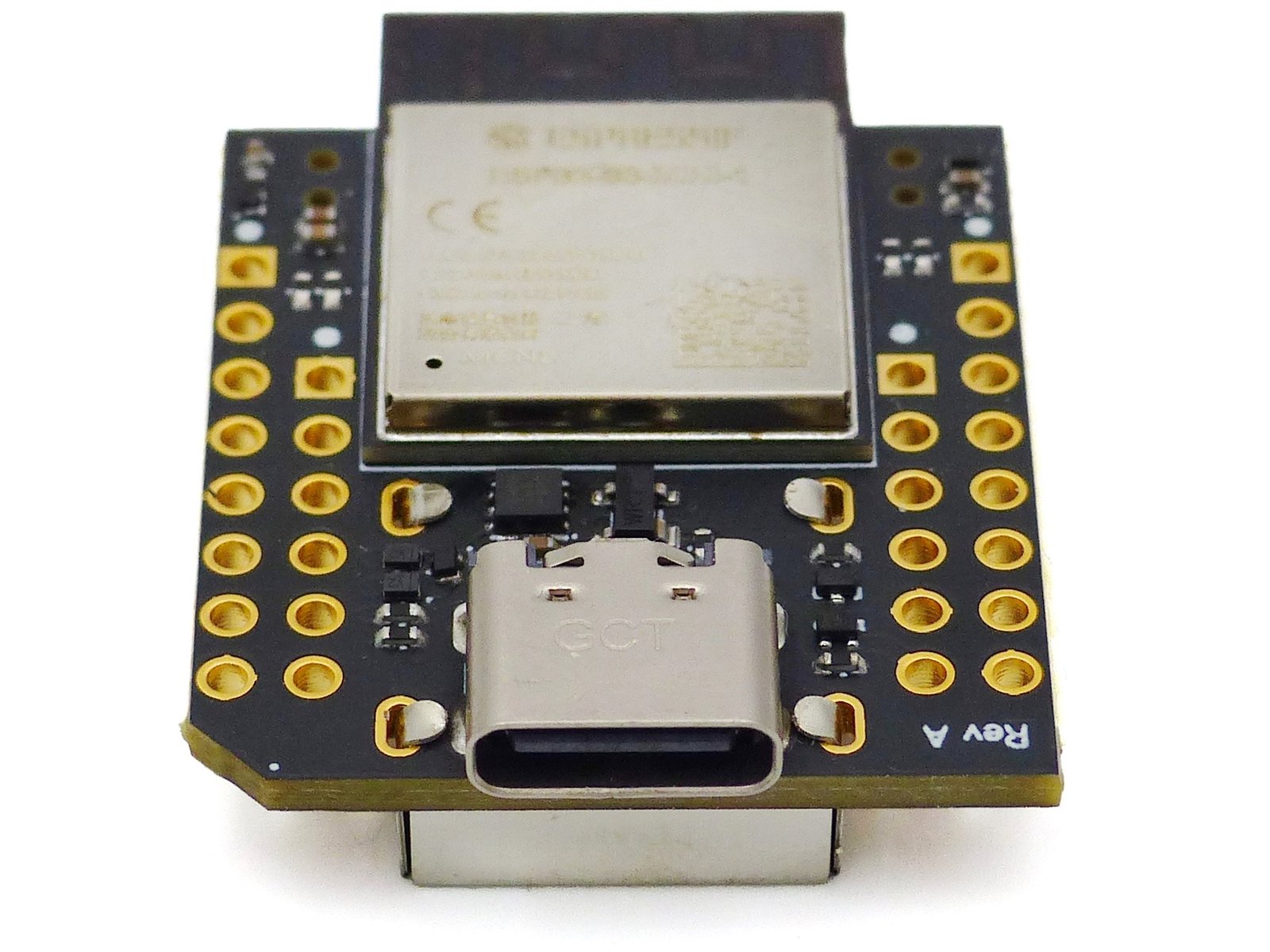

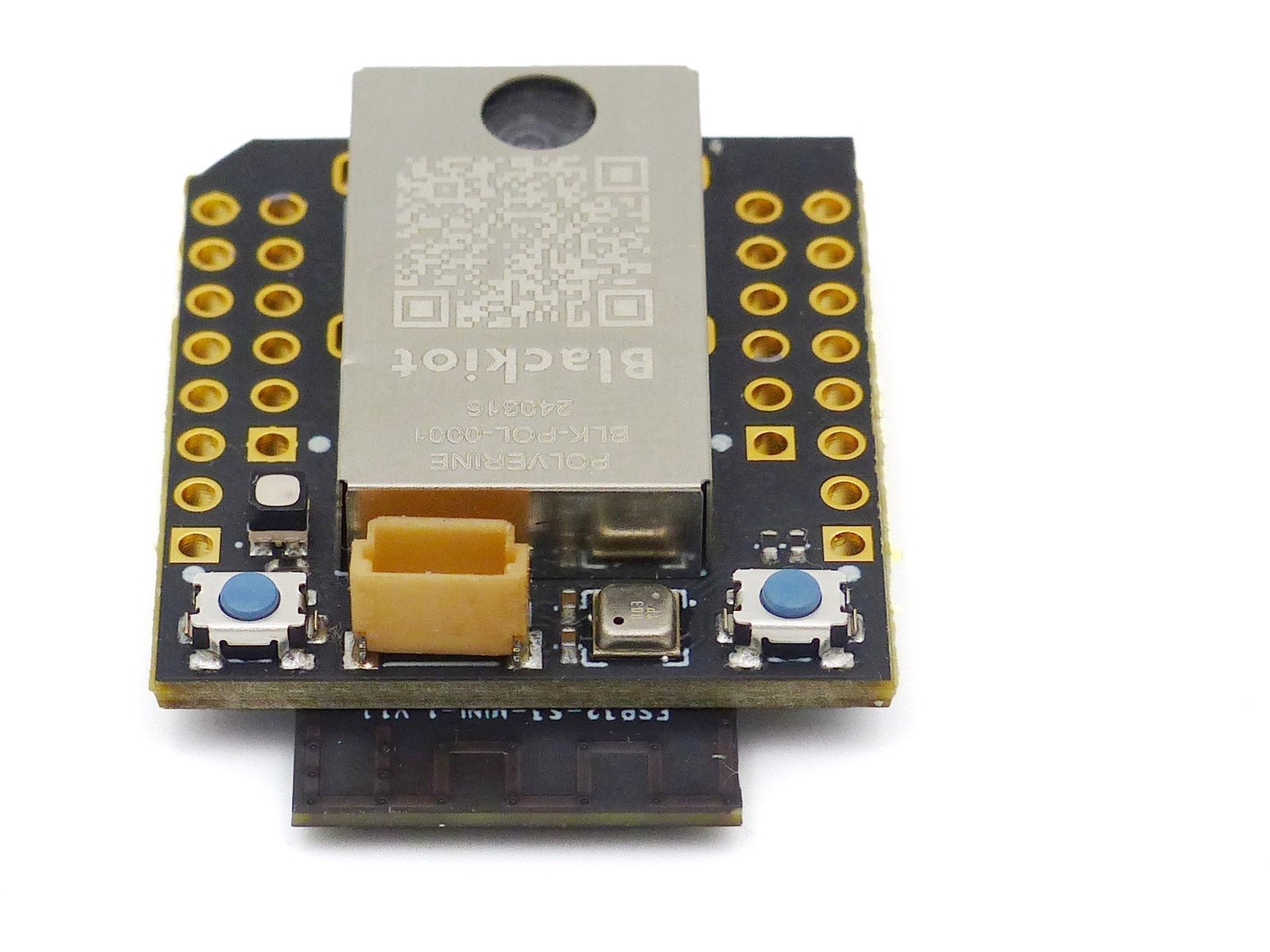

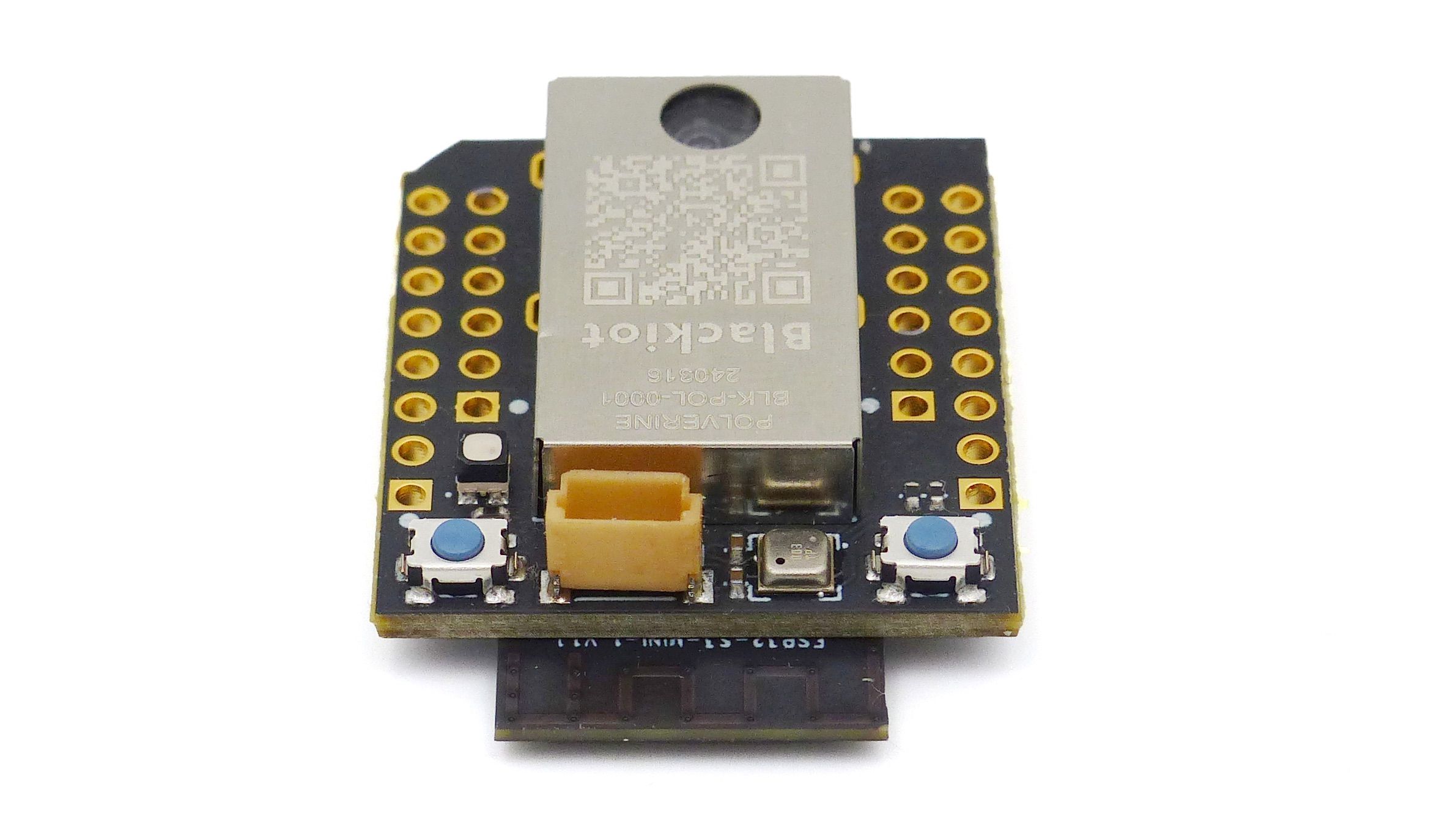

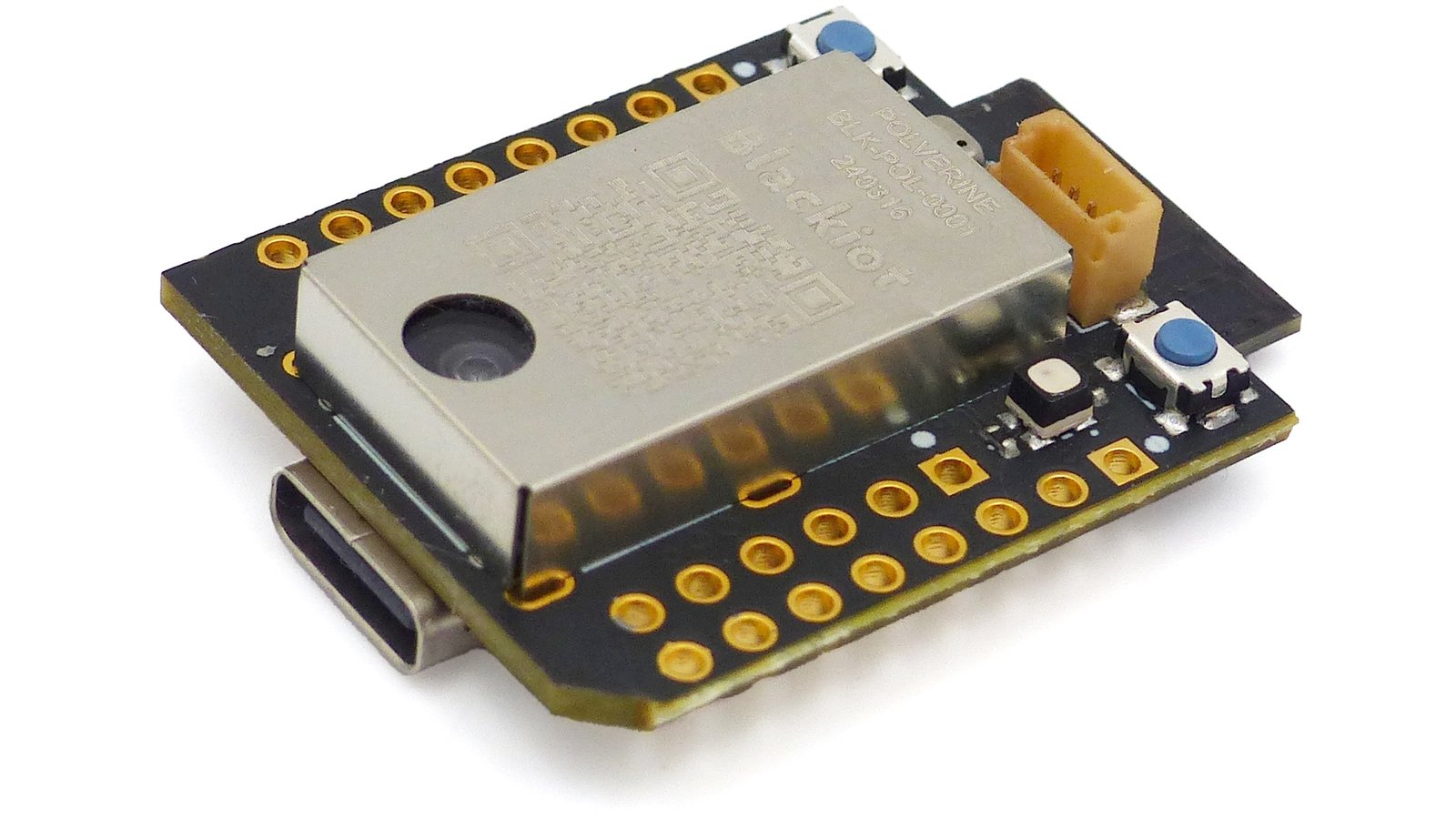

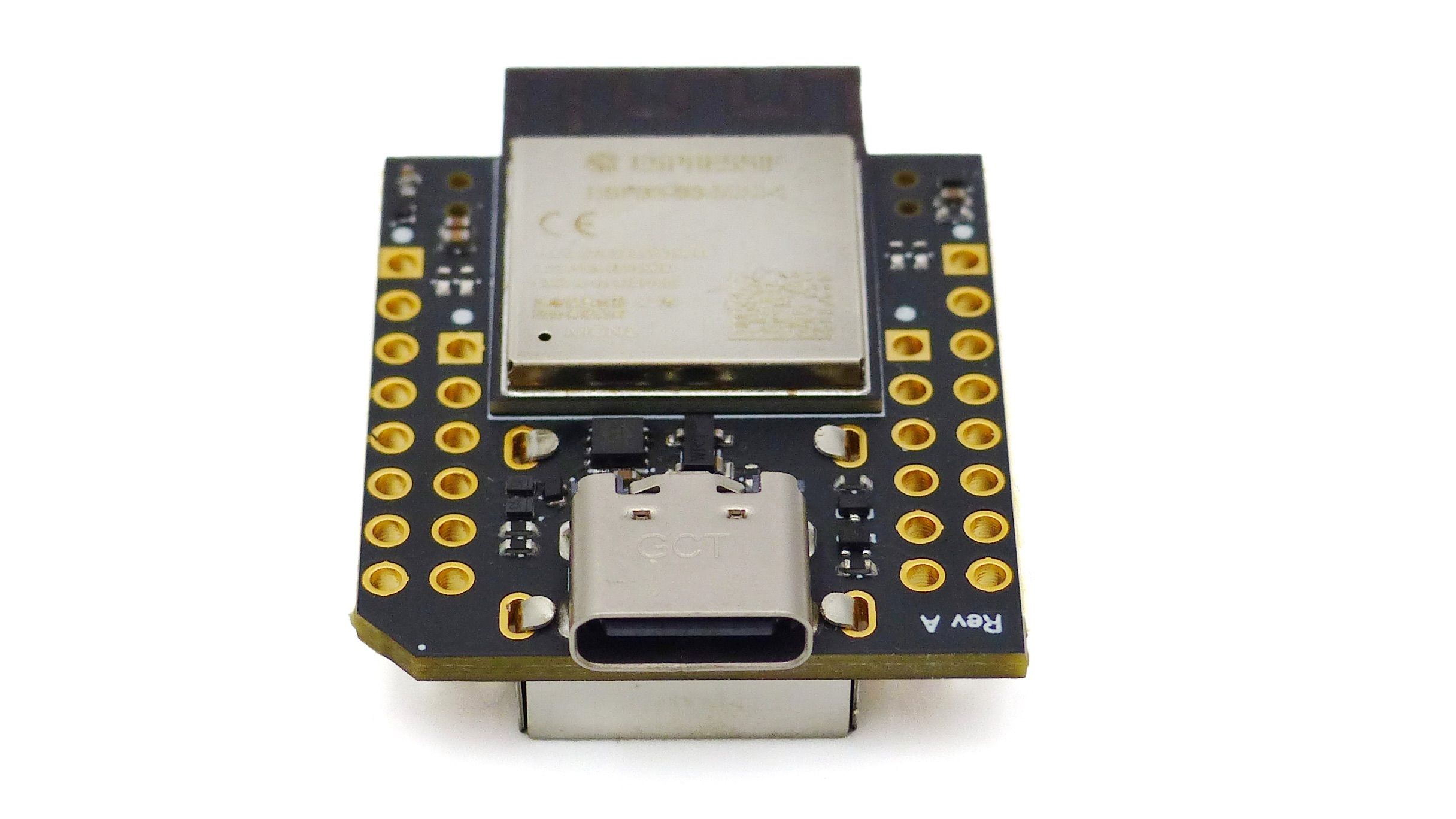

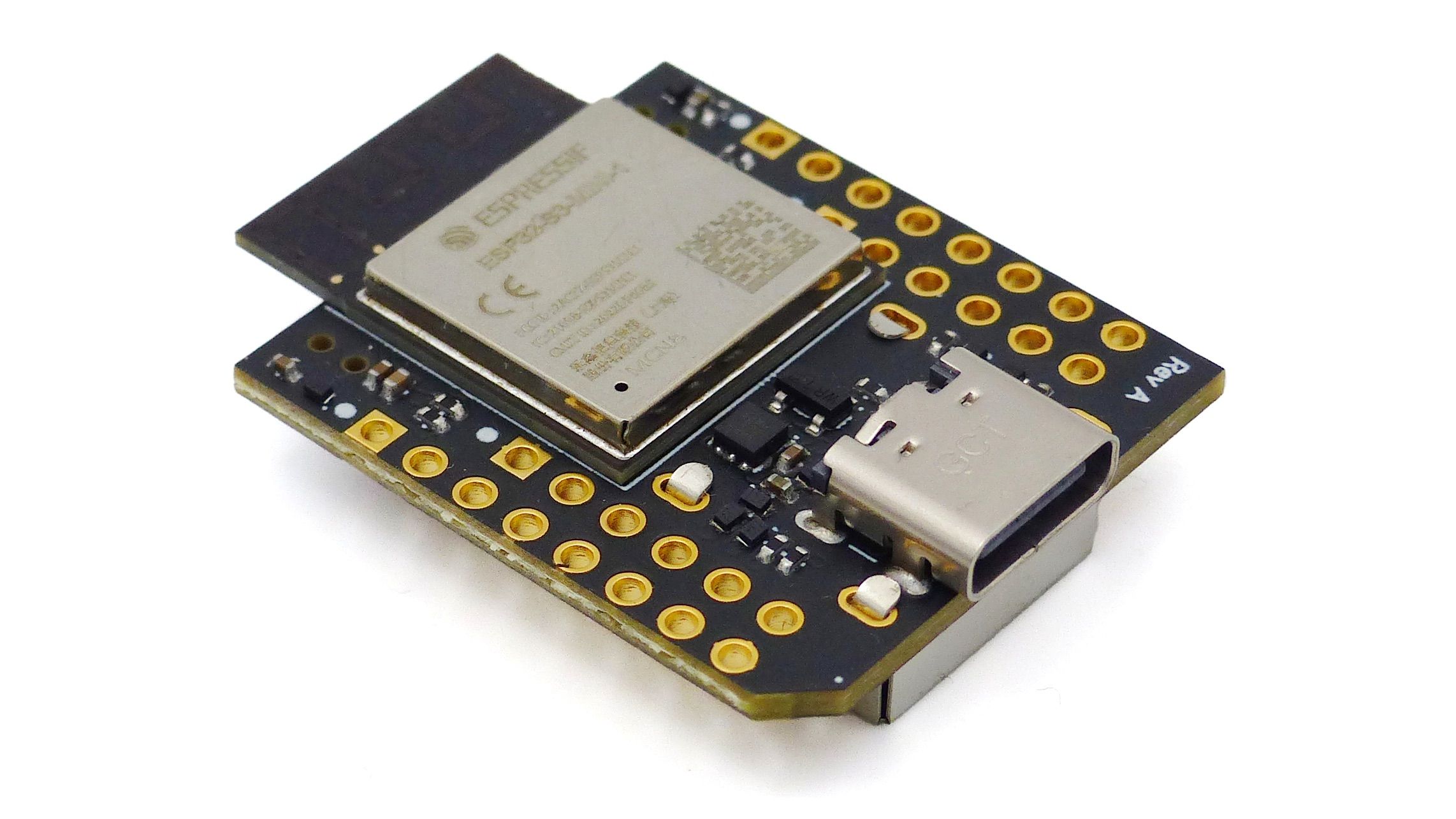

Polverine is a mikroBUS-compatible board featuring the BMV080 PM2.5 sensor and the BME690 gas sensor, both from Bosch Sensortec. These sensors are managed by an on-board Espressif ESP32-S3-MINI-1 dual-core microcontroller with 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE). Polverine can be programmed with Arduino, Eclipse, and PlatformIO/VisualStudio IDEs. Demo firmware makes sensor evaluation quick and easy.

Compact & Fanless

The new BMV080 sensor is the world’s smallest PM2.5 air quality sensor. Its innovative fanless design keeps it extremely compact and relatively low-power, with a sleep current draw of less than 30 μA. Polverine allows you to quickly put the BMV080 to use.

Features & Specifications

• MCU Core
  • Espressif ESP32-S3-Mini-1
  • Xtensa dual-core 32-bit LX7 MCU @ 240 MHz
  • 8 MB flash memory
  • 0.5 MB PSRAM
  • AES, SHA, RSA, ECC, RNG
  • Secure Boot, Flash Encryption, Digital signature, HMAC module
• 2.4 GHz Radio
  • Wi-Fi (802.11 b/g/n)
  • Bluetooth 5 (LE)
• Sensors
  • Bosch BMV080 for particulate matter (PM) 2.5
  • Bosch BME690 for temperature, pressure, humidity, and volatile organic compounds (VOCs)
• I/O Interfaces
  • USB
  • Serial (SPI, I2C, UART)
  • GPIO/PWM/INT
  • Analog IN
  • Qwiic Connect System
  • JTAG
• User Interfaces
  • RGB LED
  • User/bootloader button
  • Reset button
• Dimensions
  • mikroBUS S size 25.4 mm x 28.6 mm

Block Diagram

Pinout Diagram
