POLVERINE_FULL_MQTT_DEMO

Last week, we introduced the three demo applications we shared on GitHub. This week, we will delve deeper into the data flow of the POLVERINE_FULL_MQTT_DEMO.

The POLVERINE_FULL_MQTT_DEMO is a comprehensive data acquisition system that can be tailored to a wide range of scenarios, from a single Polverine sensor in a local setup to a geographically distributed network of thousands of Polverine sensors.

The firmware for the POLVERINE_FULL_MQTT_DEMO gathers data from its onboard sensors and transmits it using the MQTT protocol. The integrated WiFi module enables connectivity to a local WAN and subsequently to the internet.

Data is published to topics that include the device’s unique SENSORID (specifically, the last six characters of its MAC address).

1. polverine/SENSORID/bmv080
2. polverine/SENSORID/bme690
3. polverine/SENSORID/sys

The message contains the data in JSON format:

1. bmv080 message

{
  "ID": "54ADD8",
  "R": 9131.2,
  "PM10": 32,
  "PM25": 24,
  "PM1": 11,
  "obst": "no",
  "omr": "no",
  "T": 11.1
}

2. bmv690 message

{
  "ID": "54ADD8",
  "R": 8556.6,
  "T": 6.25,
  "P": 98956.57,
  "H": 98.75,
  "IAQ": 73.9,
  "ACC": 3,
  "CO2": 1026.85,
  "VOC": 1.76
}

3. sys message (to be implemented)

{
  "ID": "54ADD8",
  "T": 6.25,
  "S": 1,
}

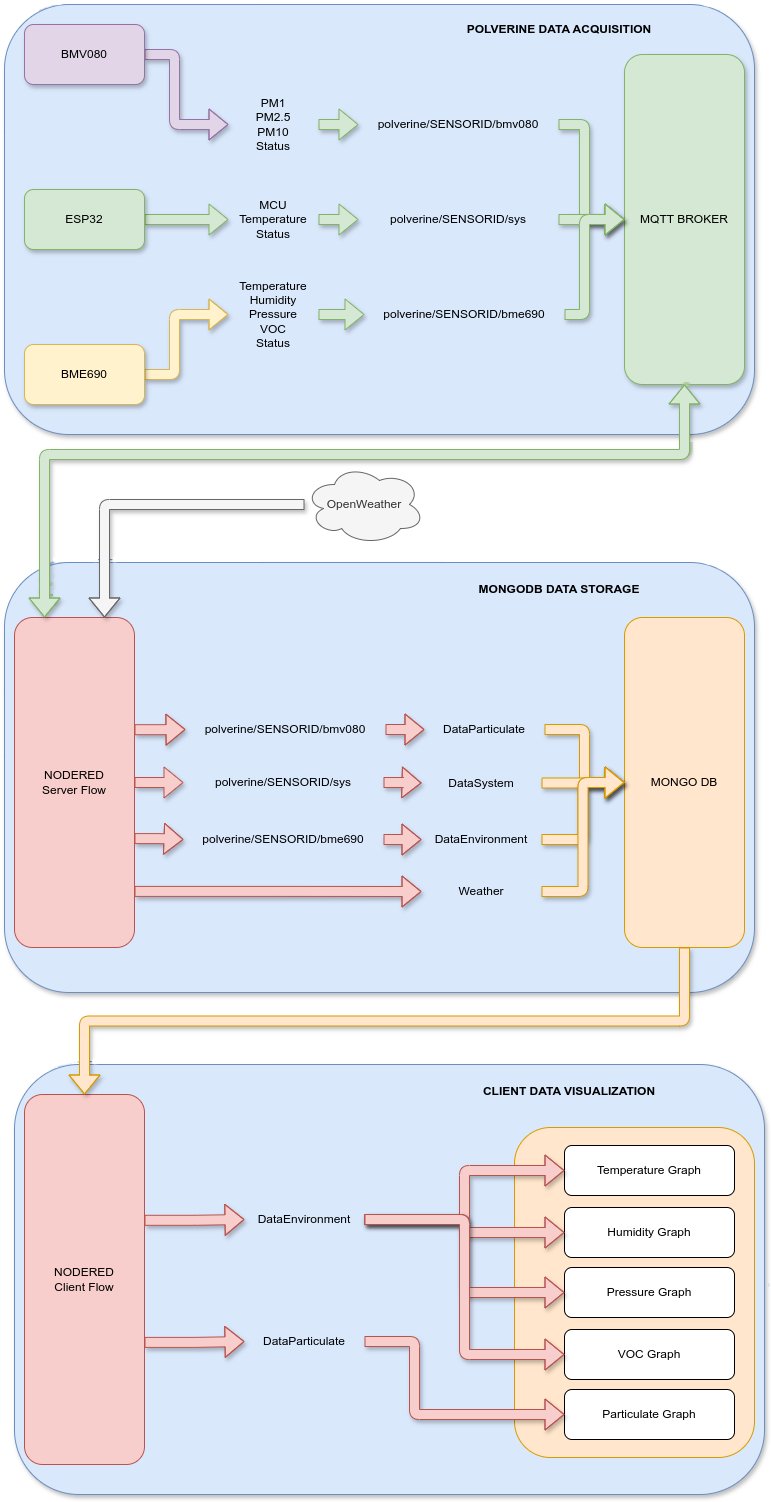

Data flow diagram

The data flow is divided into three main blocks:

1. Data Acquisition and Transmission: Data is collected from the Polverine Sensor Device and transmitted to an MQTT Broker using the TCP protocol.

2. Data Processing and Storage: A NodeRed Flow running on a server subscribes to the following MQTT topics:

   • polverine/+/bmv080
   • polverine/+/bme690
   • polverine/+/sys (planned for implementation)

   The data received from these topics is then stored in a MongoDB time-series collection.

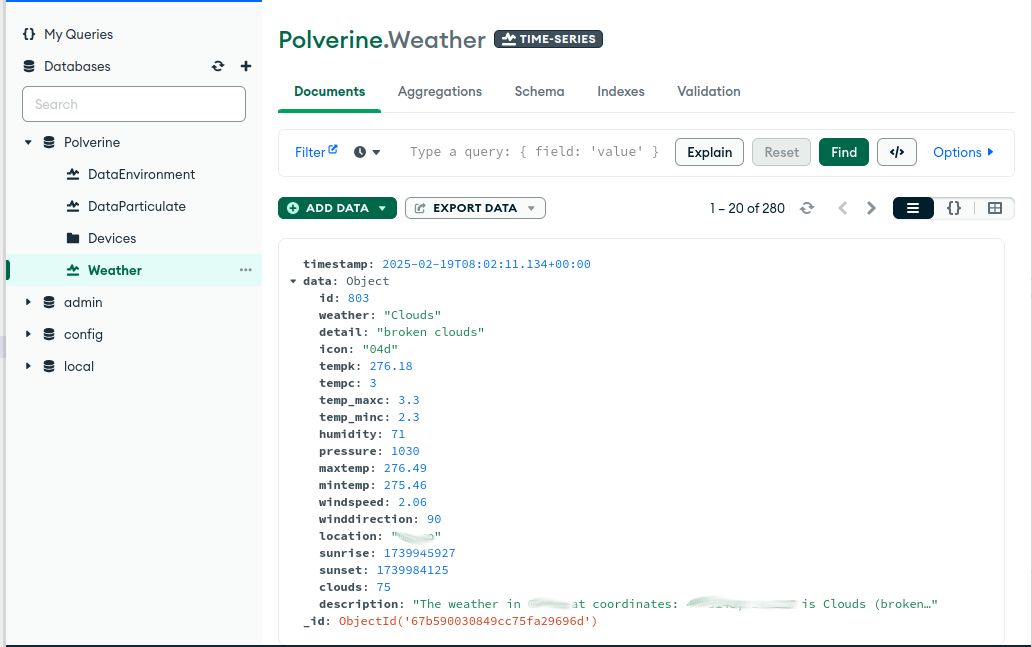

Additionally, the server flow connects to the OpenWeatherMap API to download and store time-series meteorological data in a database. This information can be useful for understanding and correlating the Polverine sensor’s readings of outdoor weather conditions.

3. Data Visualization: Another NodeRed Flow, this time on a client, retrieves data from MongoDB and visually displays historical data on charts in an HTML web page.

NodeRed

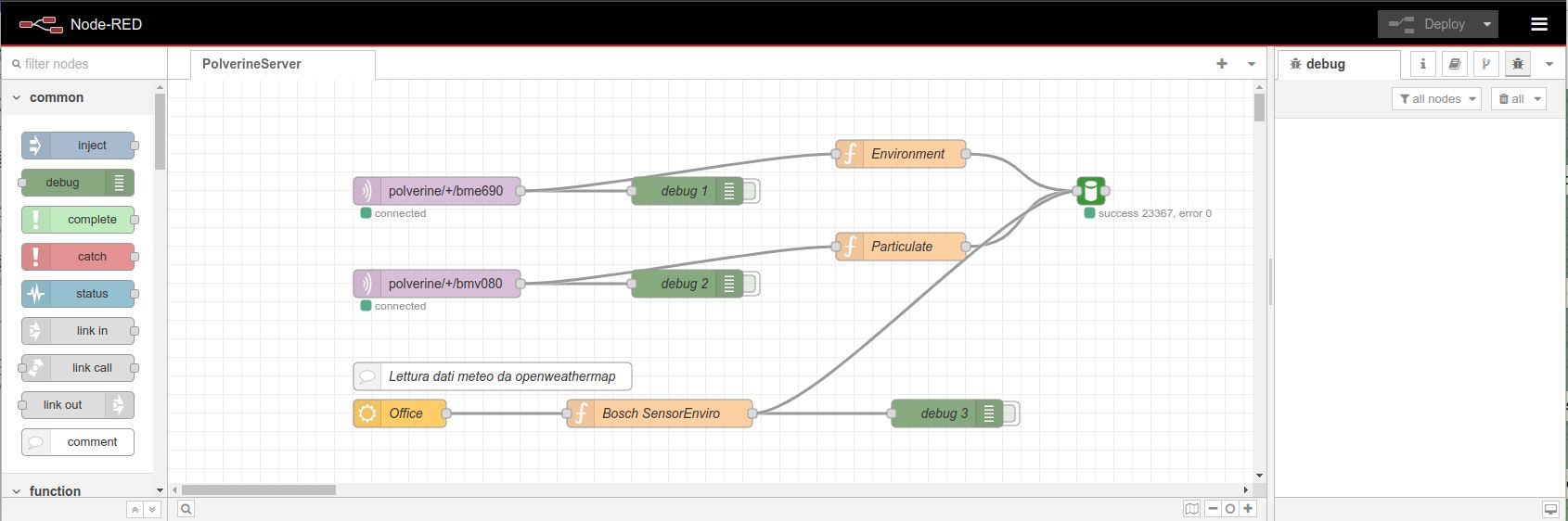

NodeRed Flows are quite straightforward, as can be seen in the following images:

MongoDB

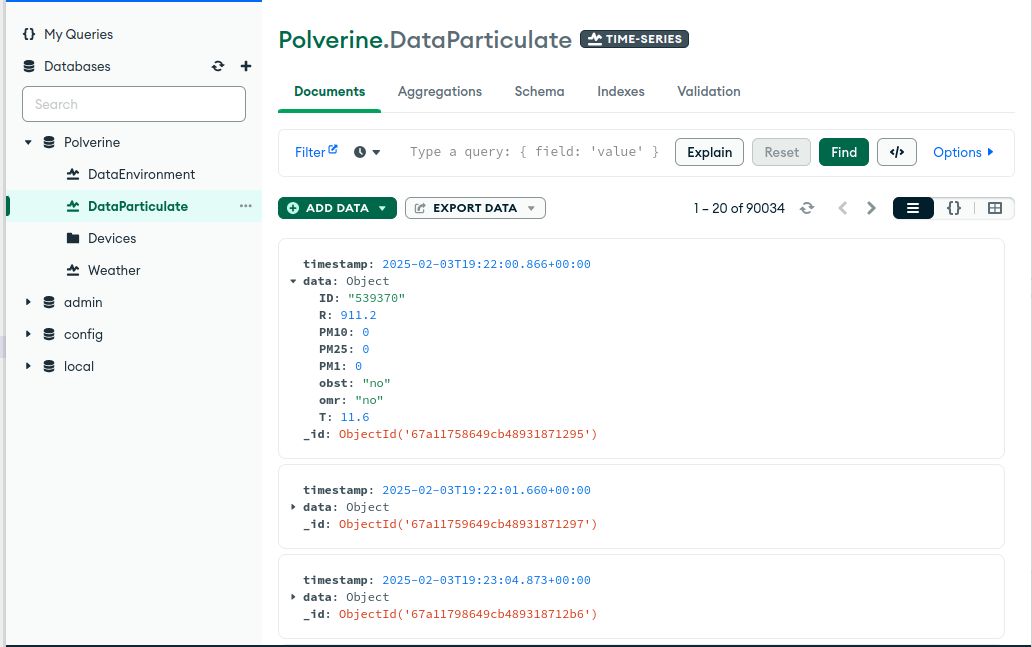

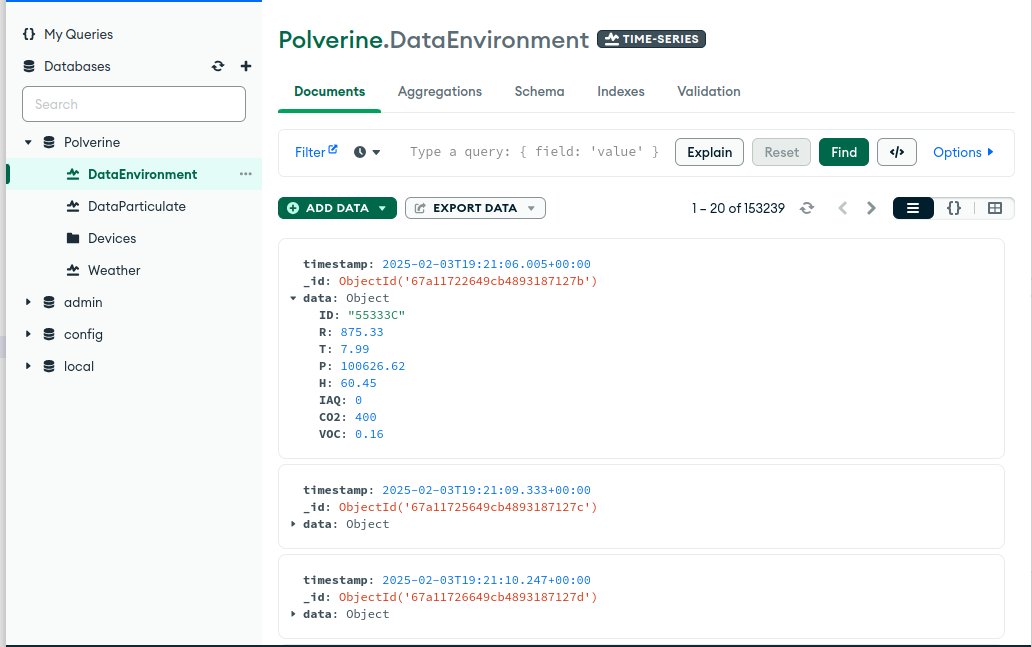

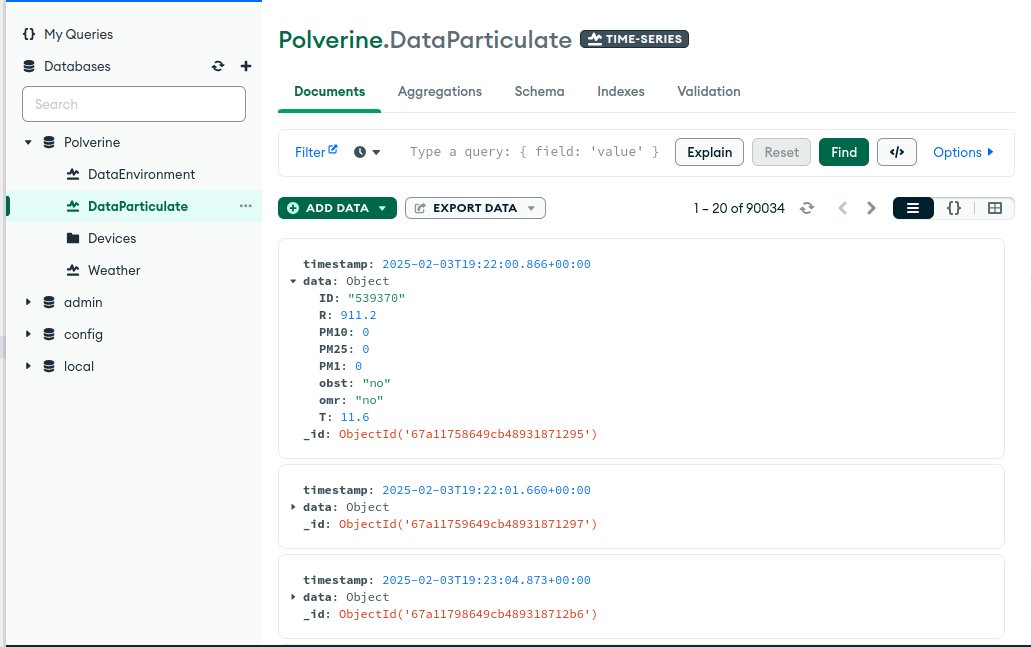

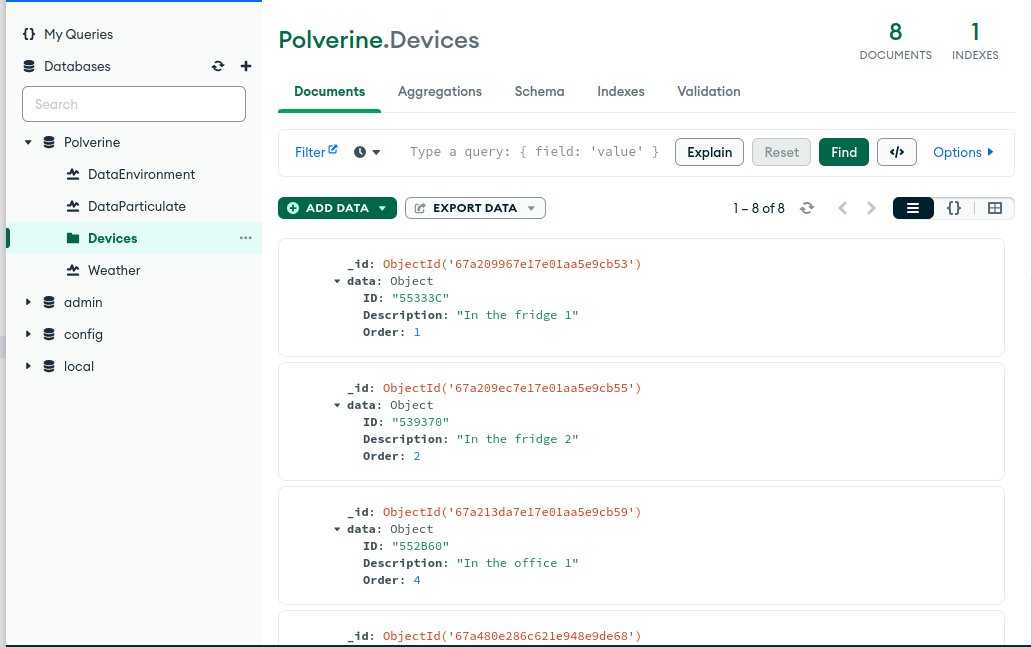

The MongoDB non-relational database stores the sensors data and makes it accessible for display and analysis, with each data record being time-stamped. A list of all Polverine devices is stored alongside the recorded data.
