Easy Temperature Sensing for Home Automation

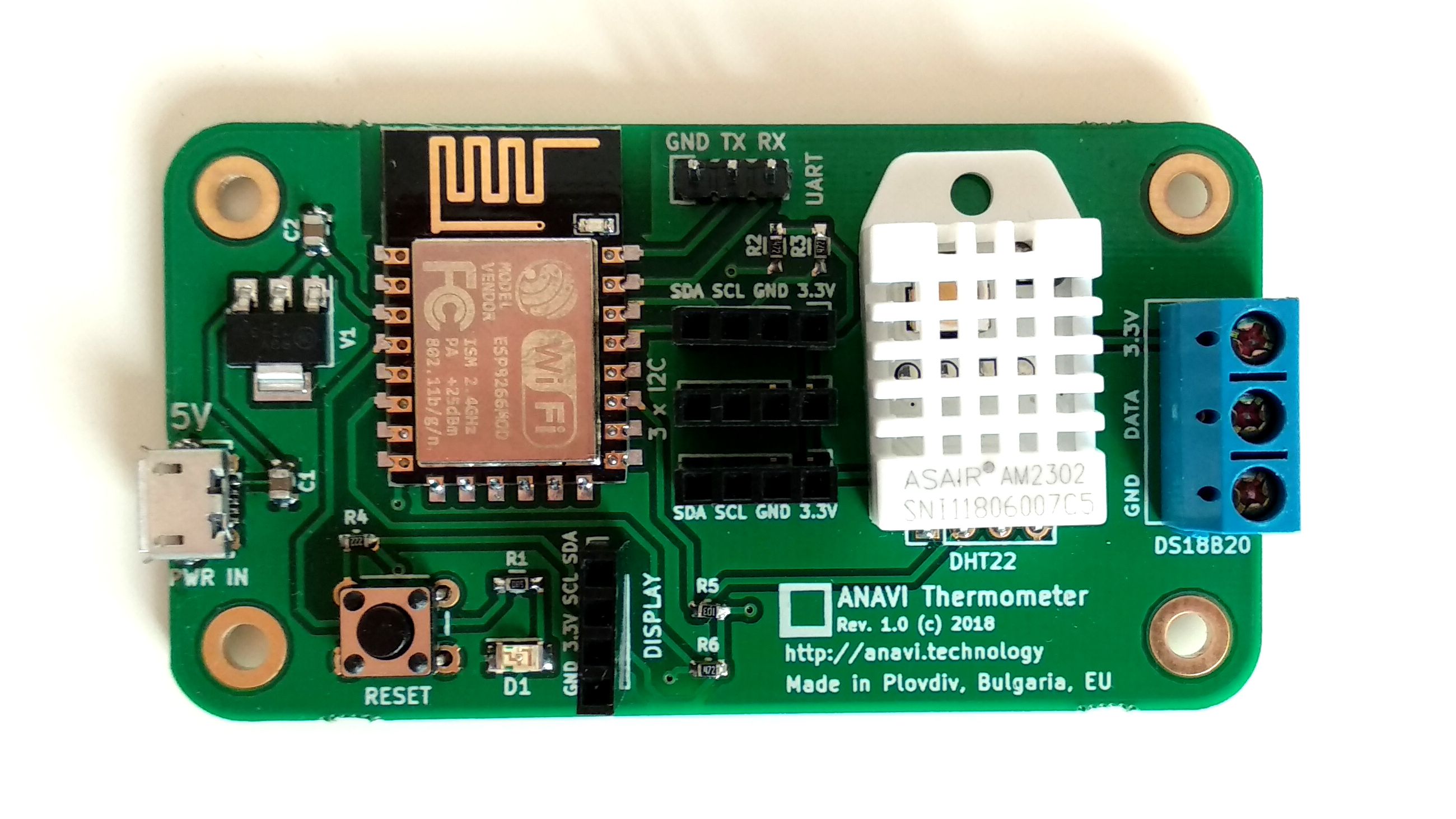

ANAVI Thermometer is an open source hardware, Wi-Fi development board for measuring temperature that’s powered by an ESP8266 processor. It comes with a built-in DHT22/AM2302 temperature and humidity sensor and has slots for a mini OLED display, waterproof DS18B20 temperature sensor, and empty slots for up to three additional I2C sensor modules. All these features make ANAVI Thermometer appropriate for developers, makers, students and open source enthusiasts interested in home automation.

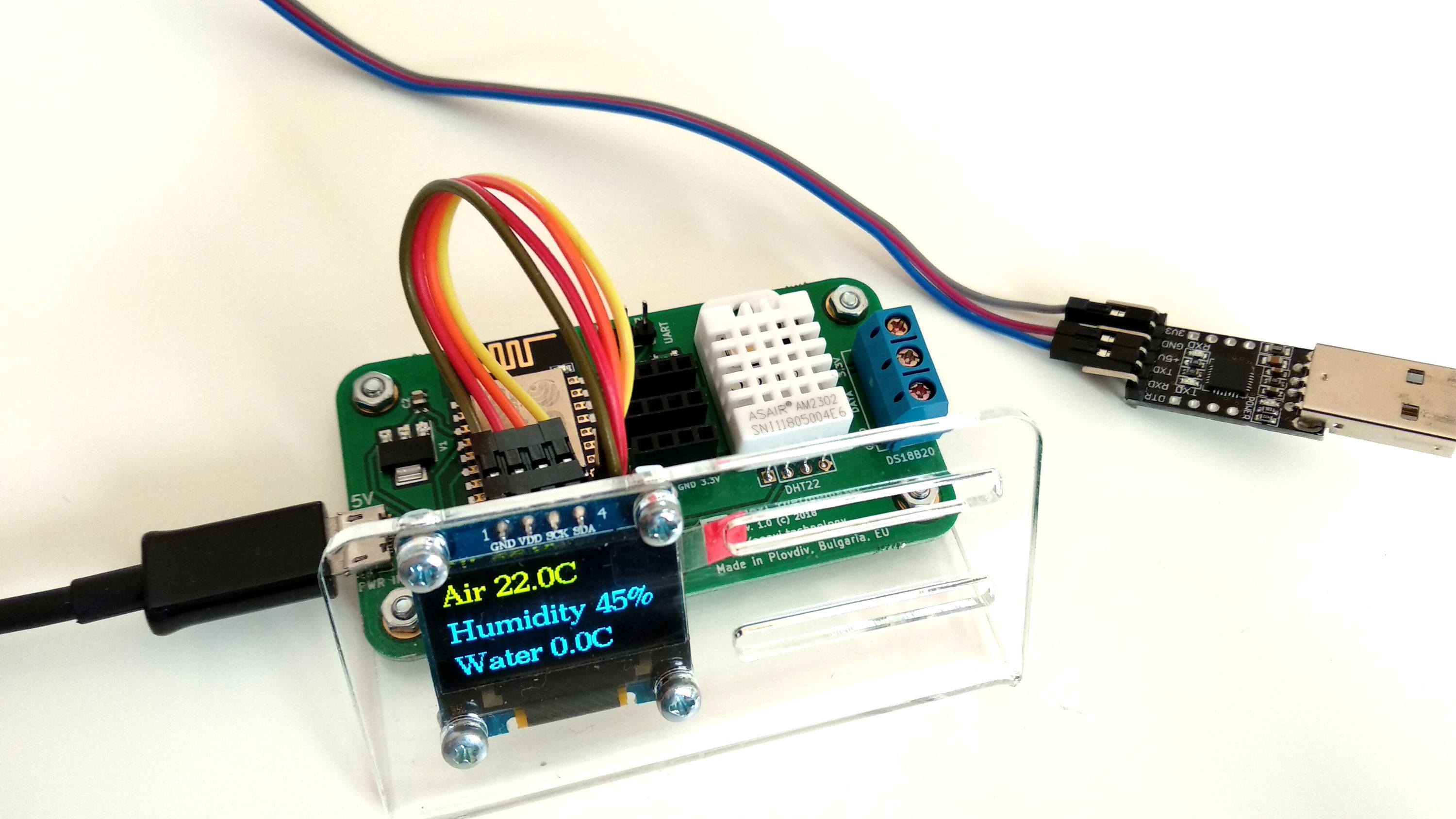

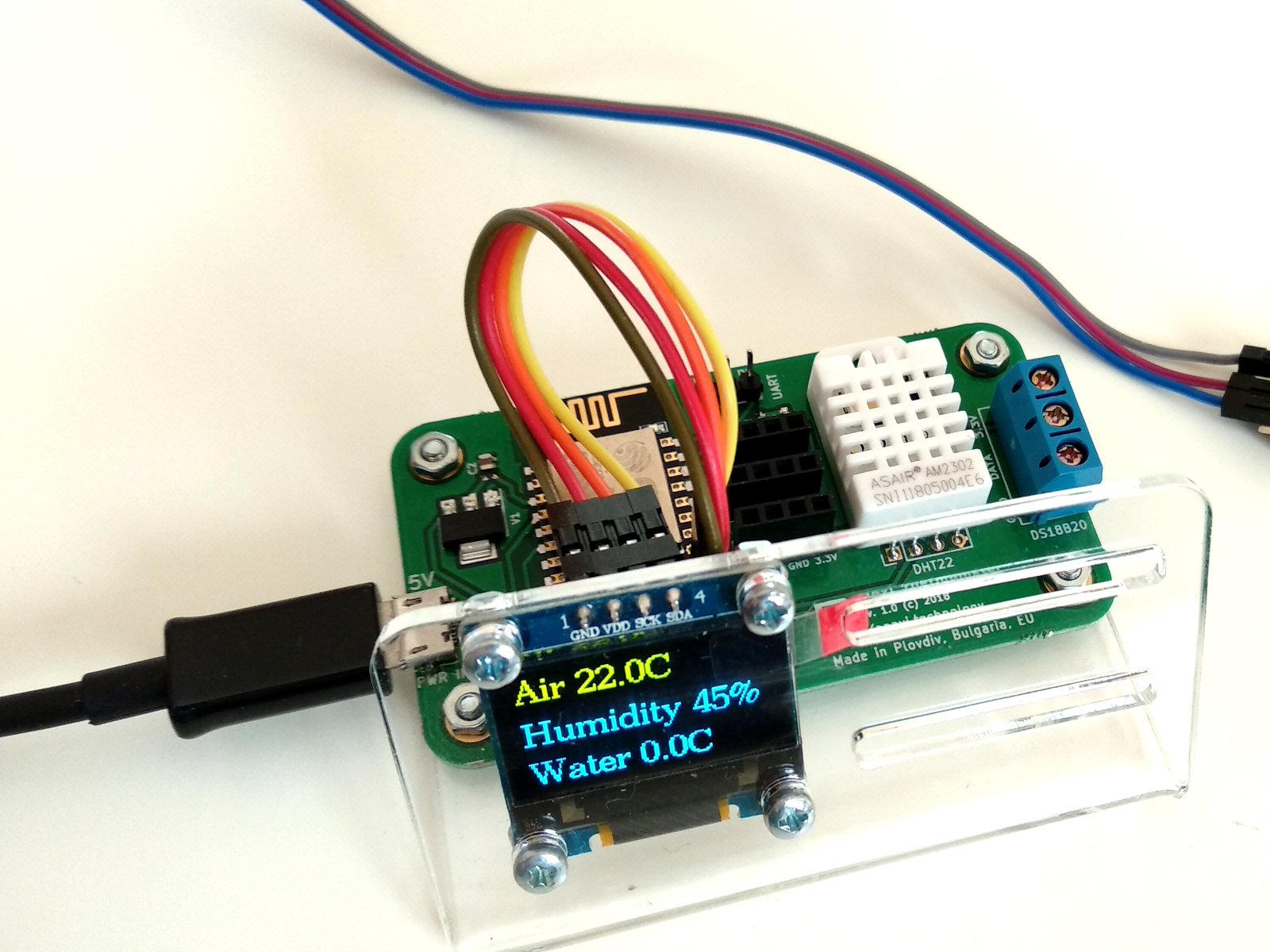

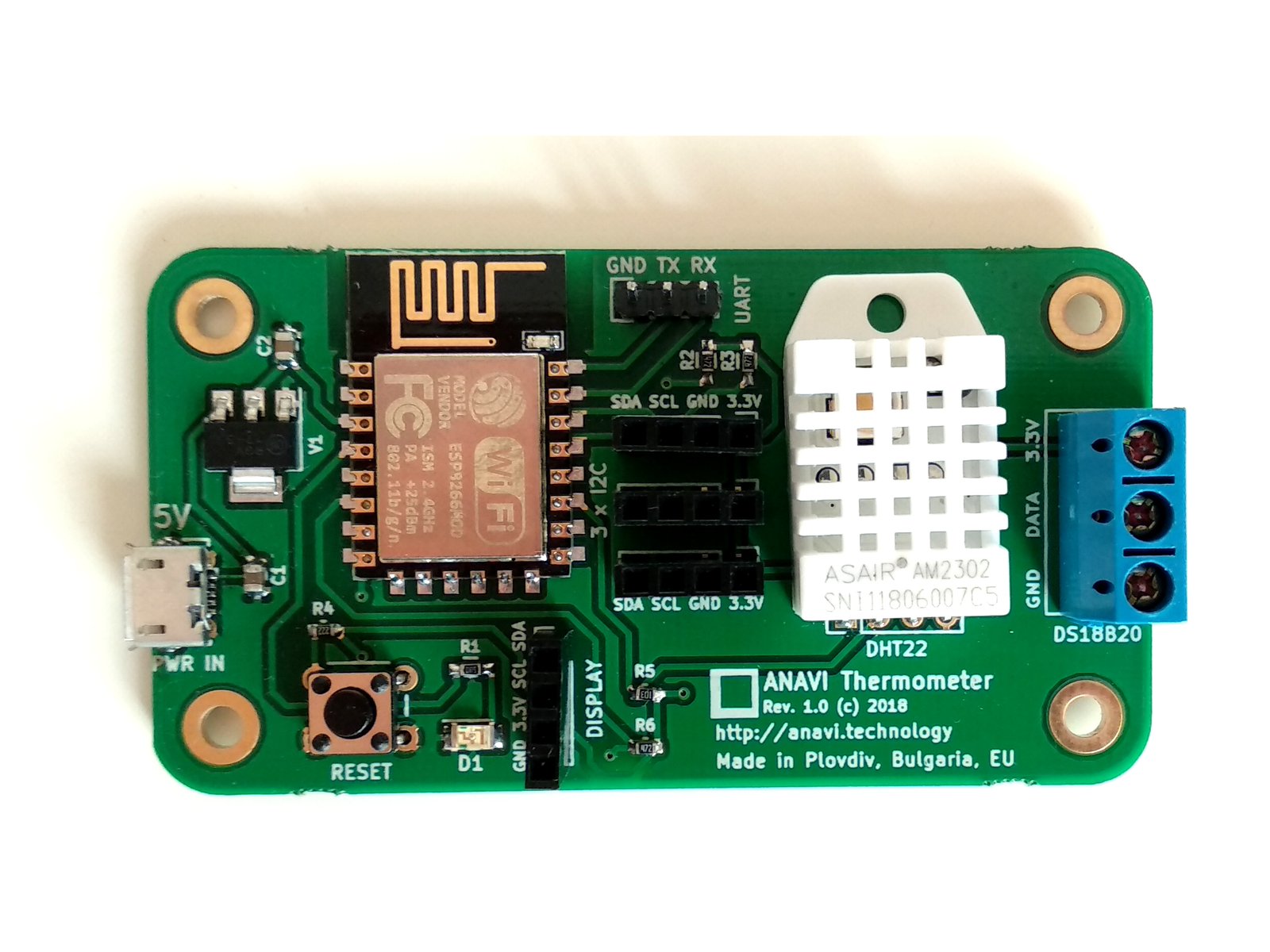

ANAVI Thermometer

Quick Setup

Getting started with ANAVI Thermometer is easy. No soldering is required. To turn on ANAVI Thermometer, just plug a standard USB charger into its microUSB connector. We will provide a comprehensive user’s manual with exact steps for using all the features of ANAVI Thermometer.

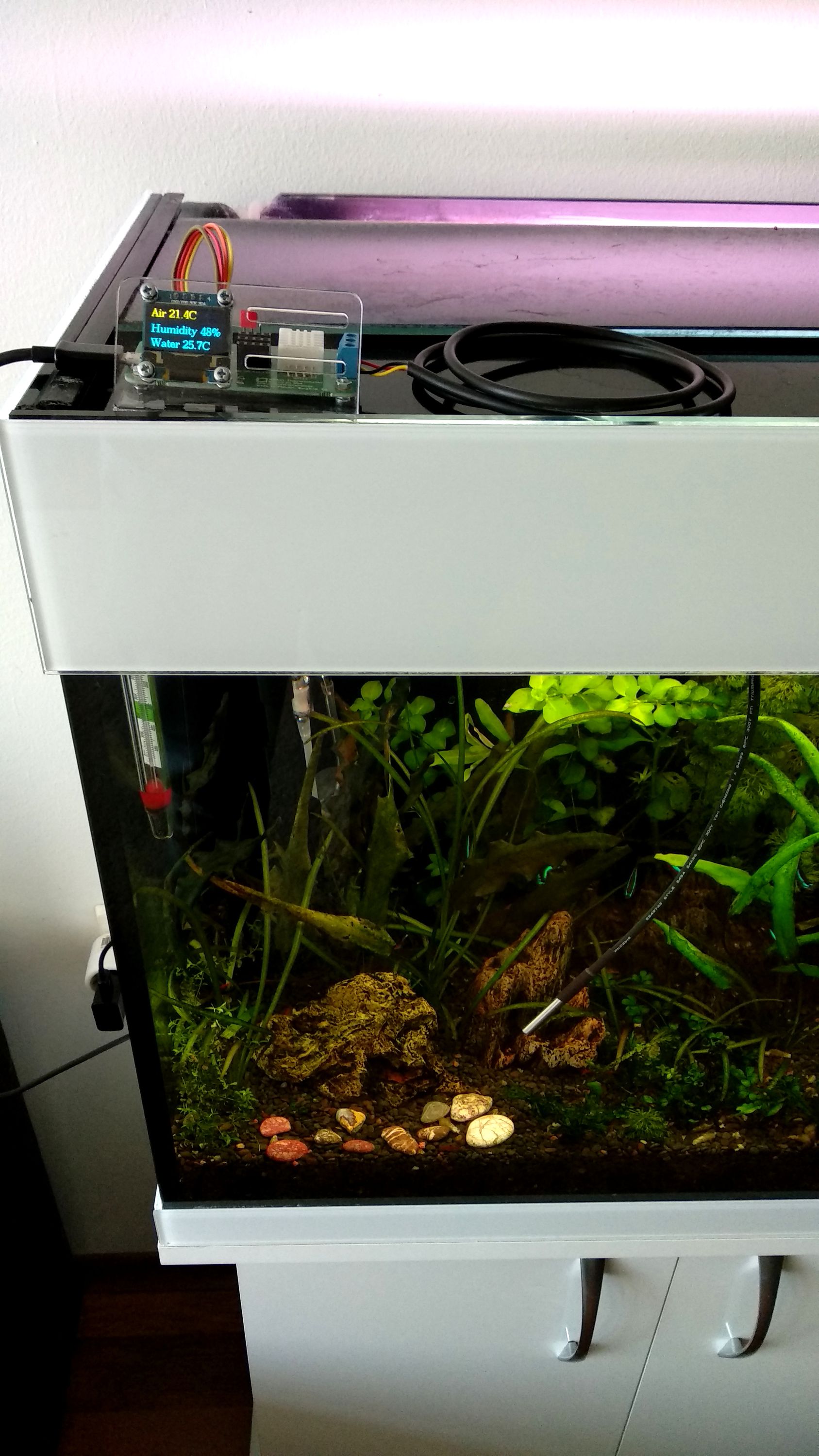

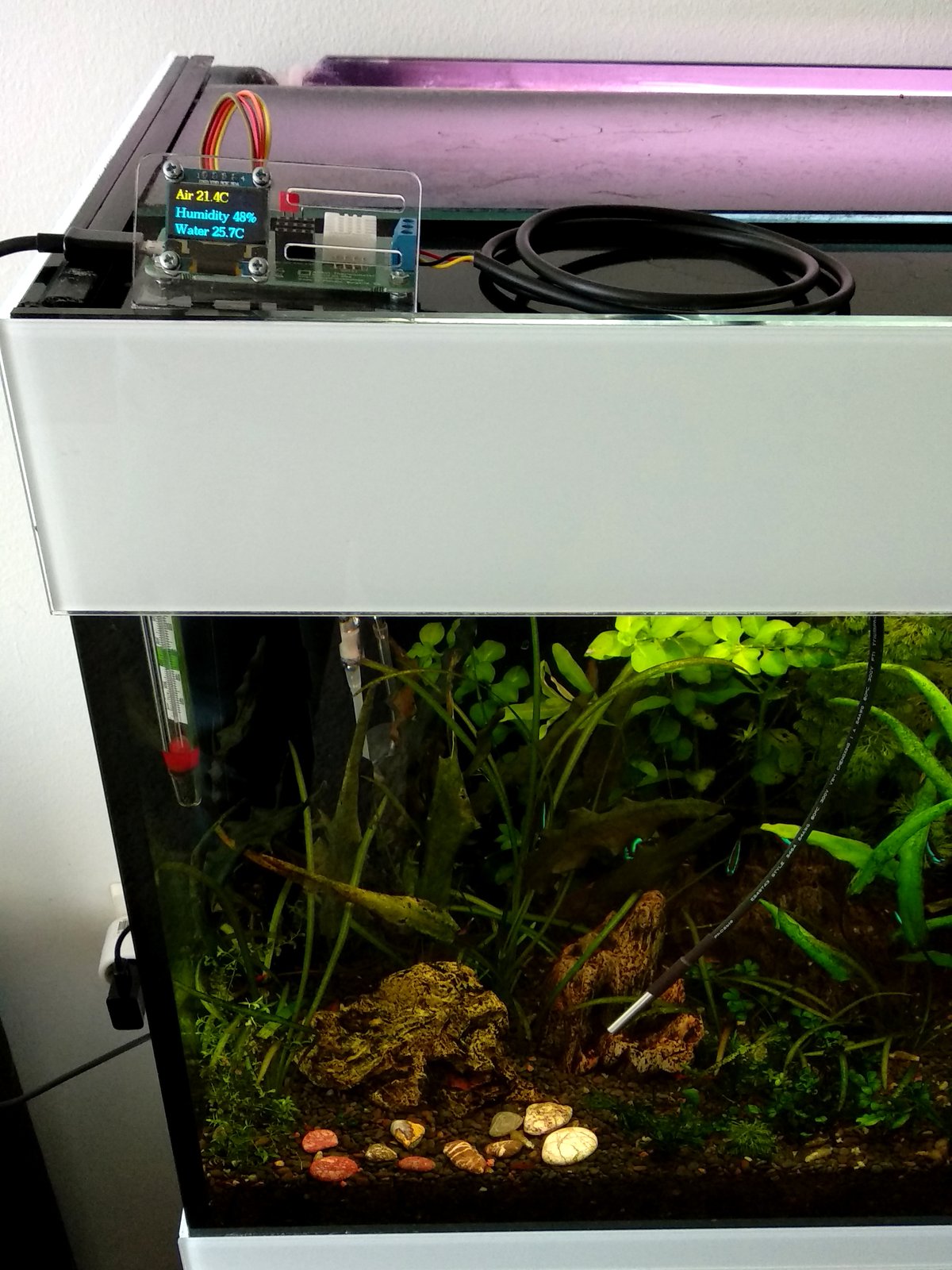

ANAVI Thermometer in fishtank

Certified Open Source

ANAVI Thermometer is an entirely open source project that combines open source hardware with free and open source software. It has been certified by the Open Source Hardware Association under UID BG000017.

Measure air, humidity and water temperatures with ANAVI Thermometer

The free and open source software tools KiCAD and OpenSCAD were used to design ANAVI Thermometer and its acrylic enclosure. Source code and schematics are available at GitHub. All units will be manufactured in Plovdiv, Bulgaria.

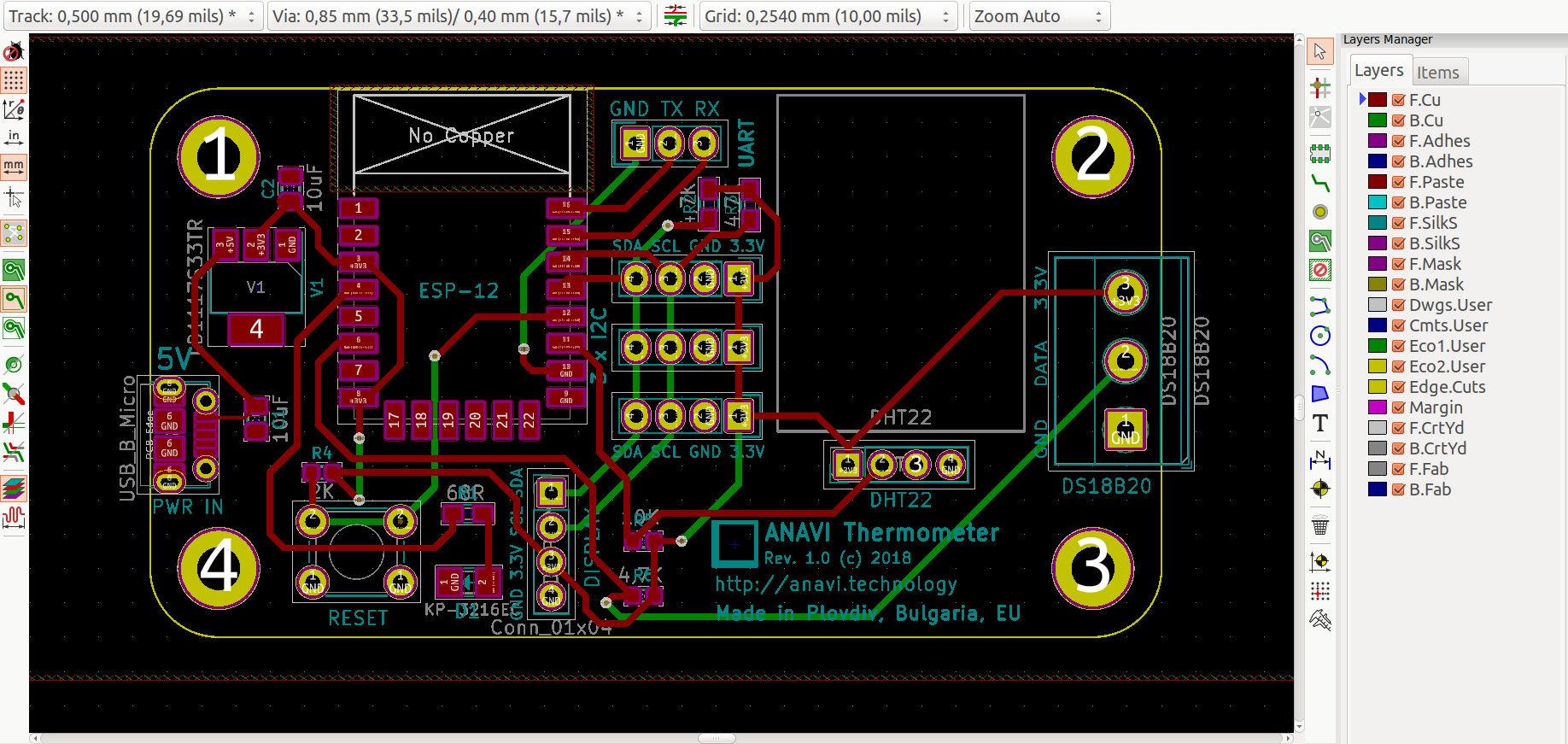

ANAVI Thermometer KiCad

Fun For All Skill Levels

ANAVI Thermometer is fun and easy to use. You don’t need to be a tech whiz to use it. You can assemble it without any tools, and only a screwdriver is needed if you are adding a waterproof temperature sensor. Whether you’re a newbie to temperature sensing or a skilled engineer, ANAVI Thermometer is a great choice for most projects.

ANAVI Thermometer can also serve as a convenient development board for home automation that’s suitable for anyone interested in Internet of Things, coding, and open source.

ANAVI Thermometer is useful for:

• Monitoring indoor ambient temperature and humidity for home automation

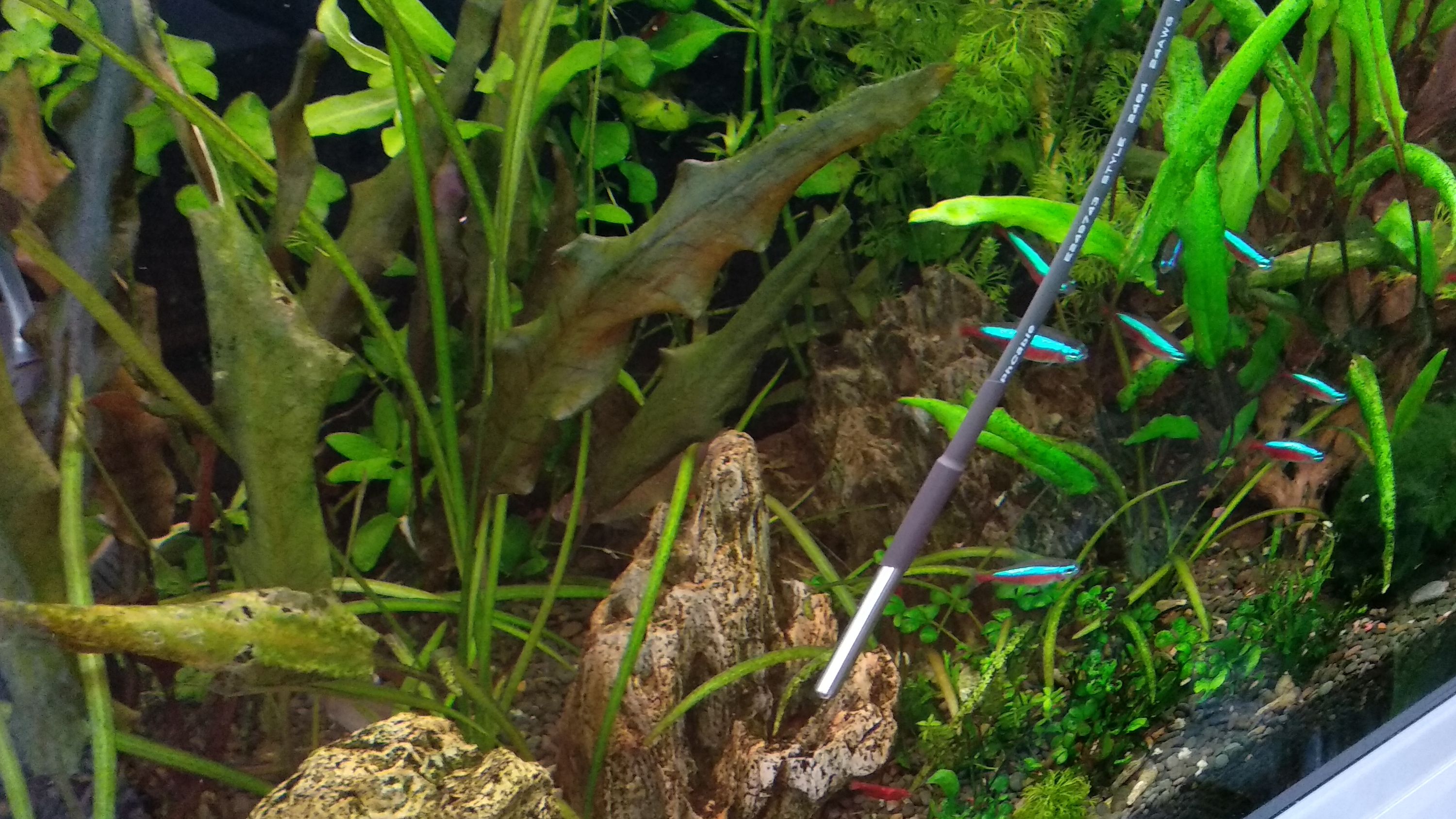

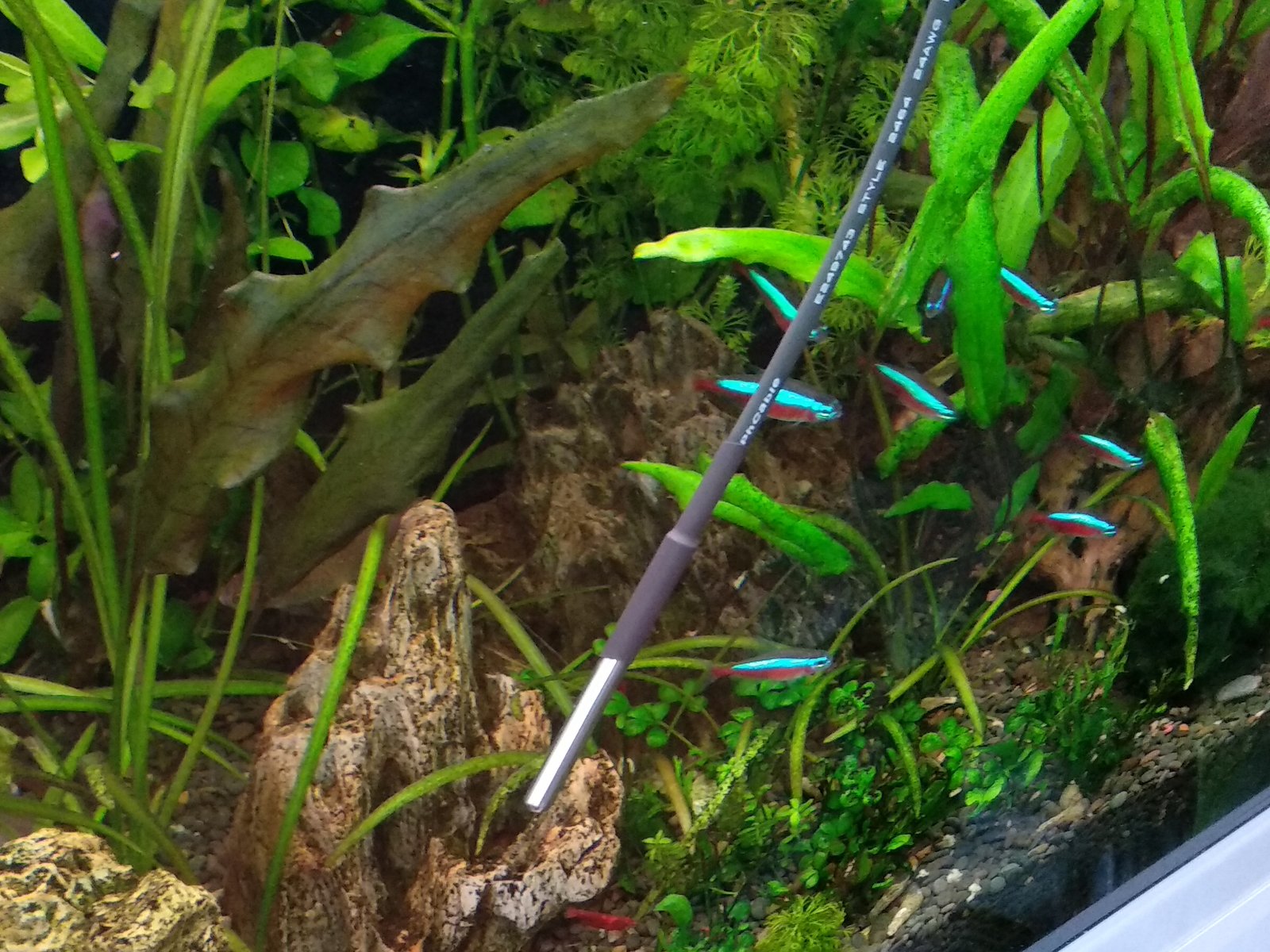

• Monitoring temperature in liquids, for example a fish tank
• Logging data in open source software platforms like Home Assistant, OpenHAB, Domoticz, etc.
• Rapid Internet of Things prototyping and software development
• Learning embedded software development by saving you the hassle of breadboards and jumper cables

Features & Specifications

• CPU: Tensilica L106 32-bit processor (ESP8266)
• Connectivity: WiFi 802.11 b/g/n
• Build-in sensor: temperature and humidity (AM2302/DHT22)
• Peripherals: Mini OLED display, terminal block DS18B20 waterproof temperature sensor, UART pins, button, three slots for I2C sensors
• Compatibility: Arduino IDE, PlatformIO, Home Assistant, MQTT, and any modern web browser
• Certification: Open Source Hardware Association (OSHWA) BG000017
• Dimensions: 75 mm x 40 mm

Sensors

Out of the box, ANAVI Thermometer supports the following modules:

• 0.96" OLED I2C display
• DS18B20 waterproof temperature sensor
• BH1750 I2Csensor for light
• BMP180 I2Csensor for temperature and barometric pressure
• APDS-9960 I2C sensor for RGB color and gesture detection

You can also attach any other I2C sensors, but you will have to take care of their software integration.

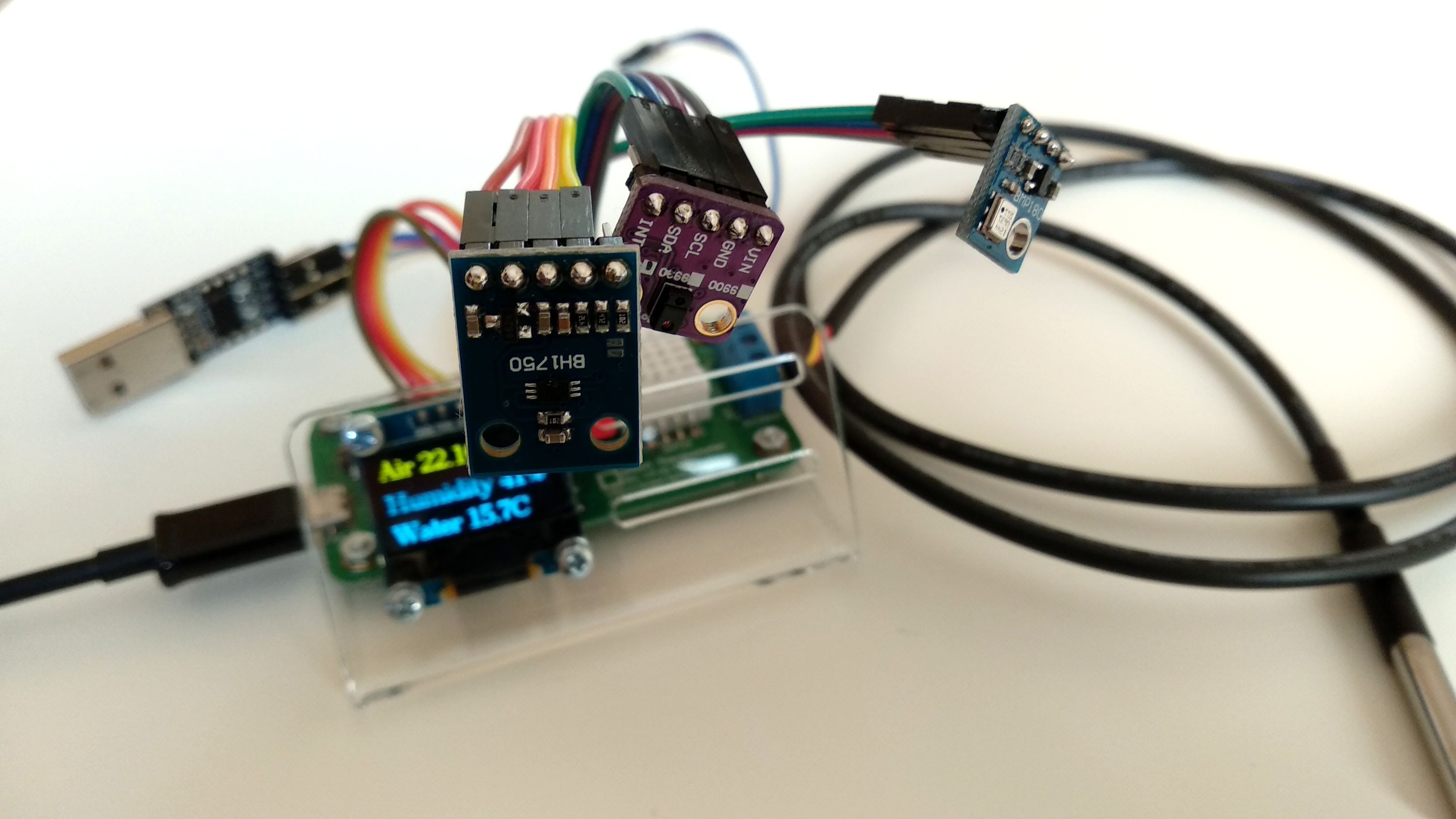

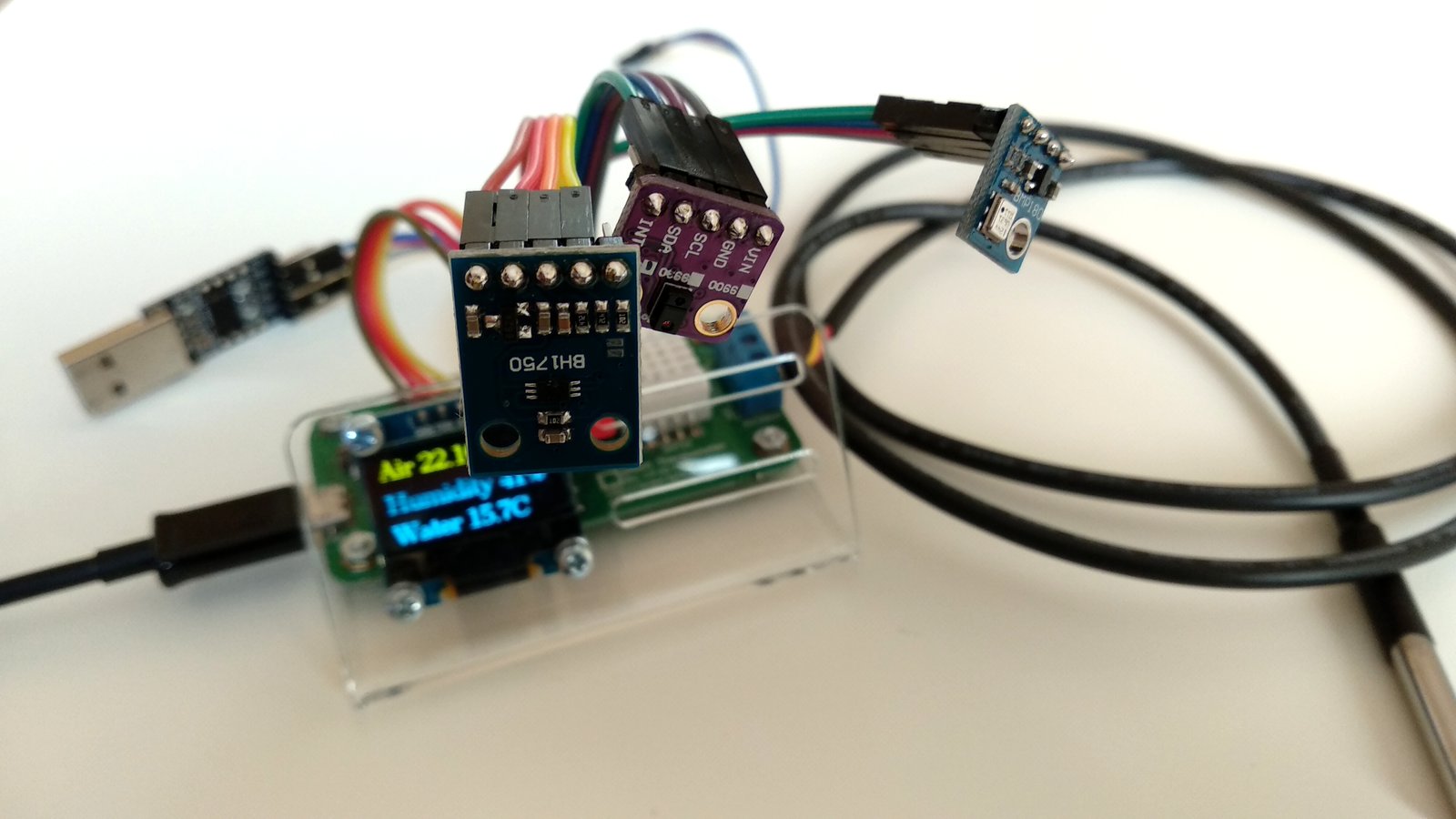

ANAVI Thermometer sensors

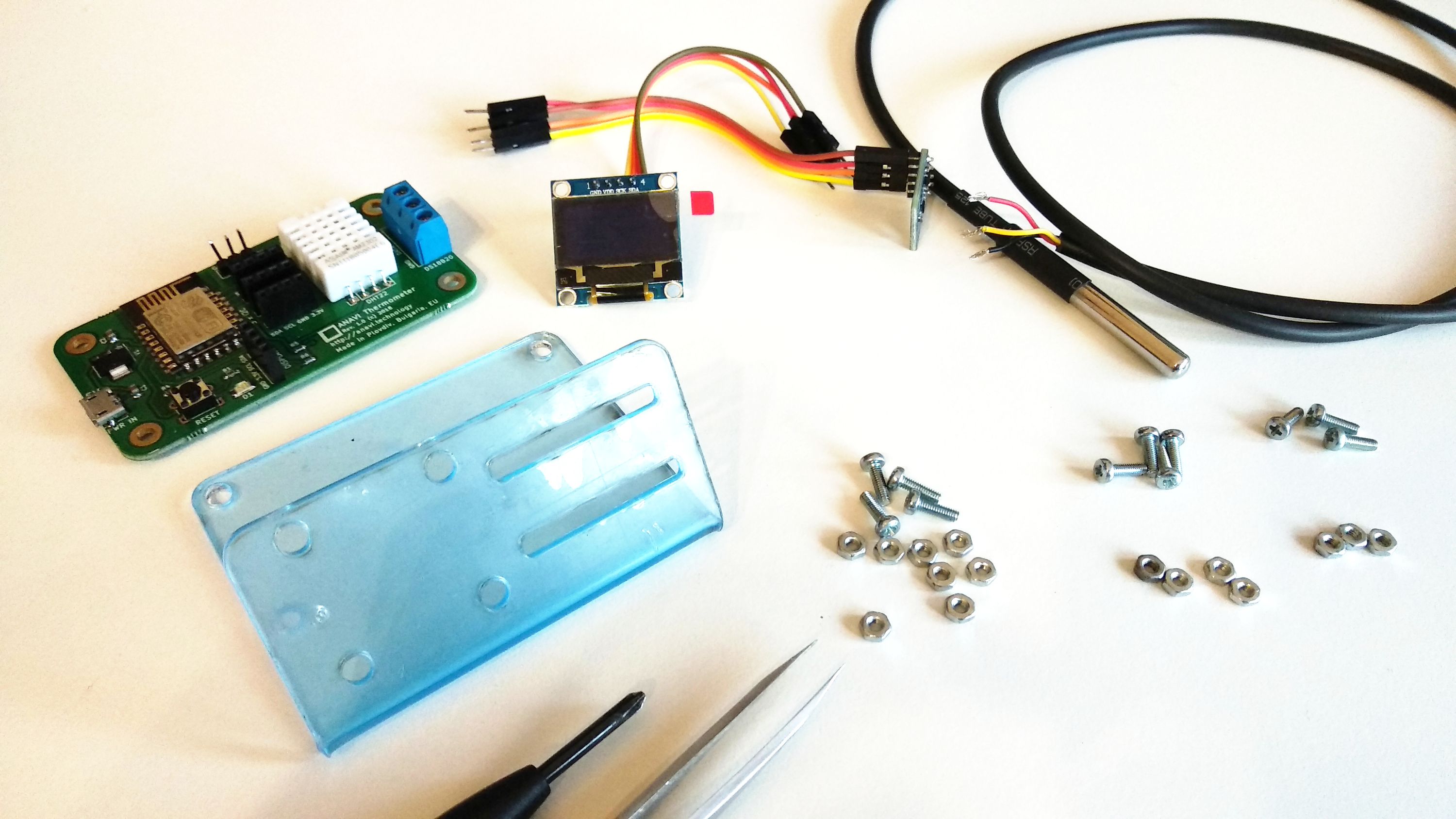

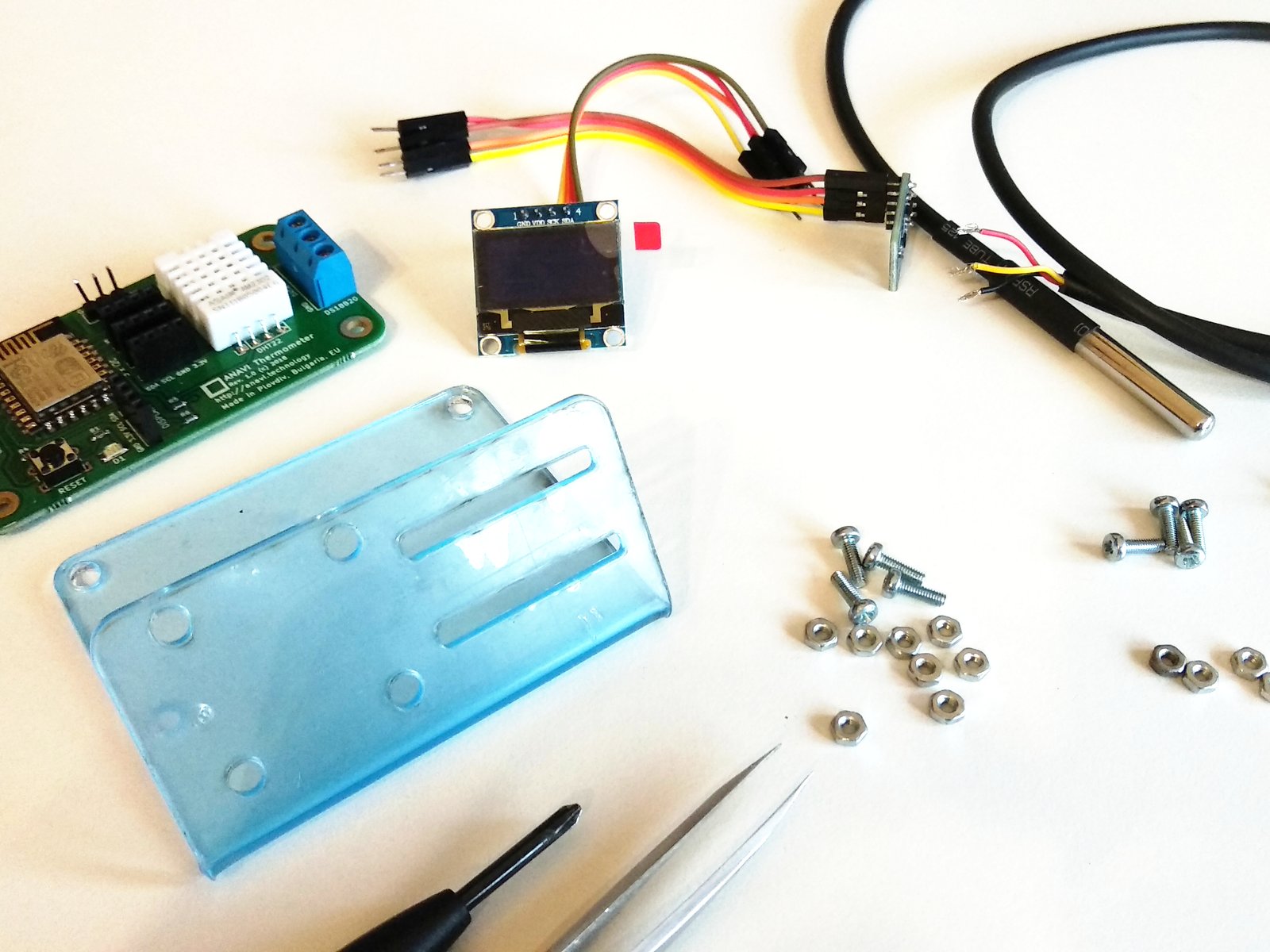

What Comes In A Kit?

Comparisons

There are literally hundreds of project and development boards for logging temperature on the market. ANAVI Thermometer is not like them!

Unlike the rest, ANAVI Thermometer is entirely open source, supports a huge variety of temperature sensors, and doesn’t require a breadboard or soldering iron to get started.

Support & Documentation

ANAVI Thermometer is an entirely open source project, the source code and the schematics are available at our GitHub repositories. Please have a look at the following links:

• User's manual
• Default Arduino sketch

If you have a question about ordering, paying, or shipping, please refer to The Crowd Supply Guide.

If you have a technical question about the operation of ANAVI Thermometer or any of its applications, please visit our website or contact us at info@anavi.technology.
