Surface mount components on 8 mm carrier tape are among the most commonly used in electronics assembly today. Whether you’re a hobbyist, a manufacturer, or a supplier, you probably handle 8 mm reels and cut tape all the time. As the smallest standard size, 8 mm tape carries tiny, densely packed components that are difficult to count by hand. There are plenty of existing methods for counting parts on tape, from the humble ruler-and-calculator technique to large, expensive, automated reel counters. We couldn’t find anything that was both portable and simple to use, though, which is why we designed BeanCounter.

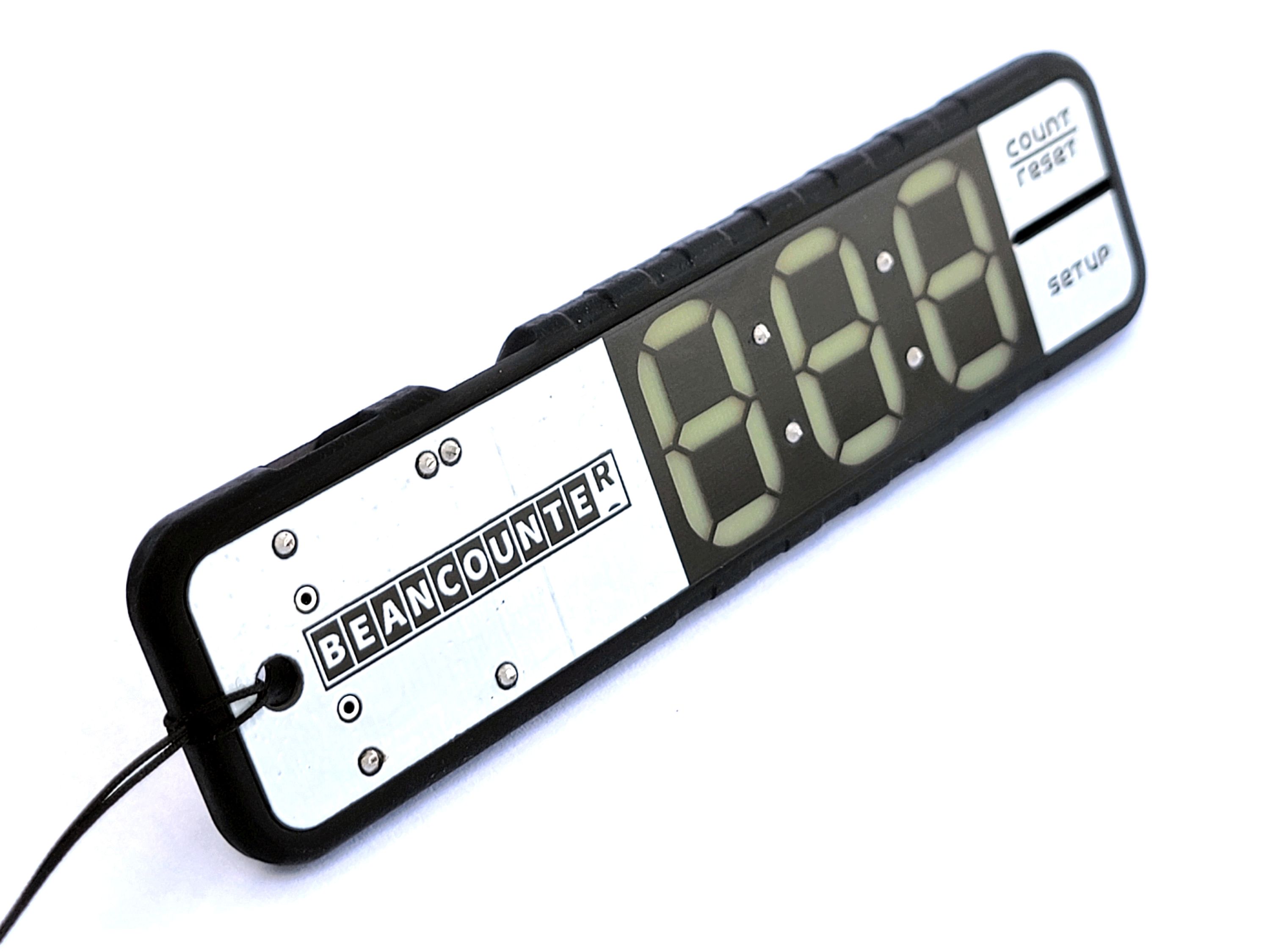

BeanCounter is an SMT parts counter that fits in your pocket. It’s battery powered and uses two IR photointerrupters to count parts about as fast as you can pull them through. It works with any opaque, 8-mm-wide carrier tape up to 2 mm in height, which covers most 0805-or-smaller LEDs and passives, as well as SOT23 transistors. It’s an affordable SMT tape counter without unnecessary bells and whistles.

To use BeanCounter, simply turn it on and start pulling tape through. It will immediately begin counting your parts using one of two modes:

• Inventory Mode - Using just one sensor, BeanCounter polls at its fastest rate, allowing you to count long tapes and partial reels very quickly.
• Dispense Mode - With both sensors active, BeanCounter can detect the direction in which you are pulling tape, which allows it to count upward in one direction and downward in the other. This feature is useful in kitting contexts where you may be cutting fixed quantities off the end of a full reel.

Part pitch is configurable in either mode, so you can accurately count any part that physically fits through the counter.

Digging a little deeper, what BeanCounter actually does is count feed holes and divide by the part pitch. Because it cannot differentiate between parts and empty pockets, you will need to ensure that it begins counting after empty tape has been pulled through and stops counting before it reaches the tail. To help with this, we’ve added a "pause" button that you can use to freeze the count while pulling empty tape.

On the Bench

Counting your parts before a build can prevent frustration and wasted solder paste. Keep BeanCounter at your bench to quickly count your cut-tape components. Putting together kits for your online shop and need to cut a bunch of strips of resistors? Use Dispense Mode to count out your portions quickly.

In the Warehouse

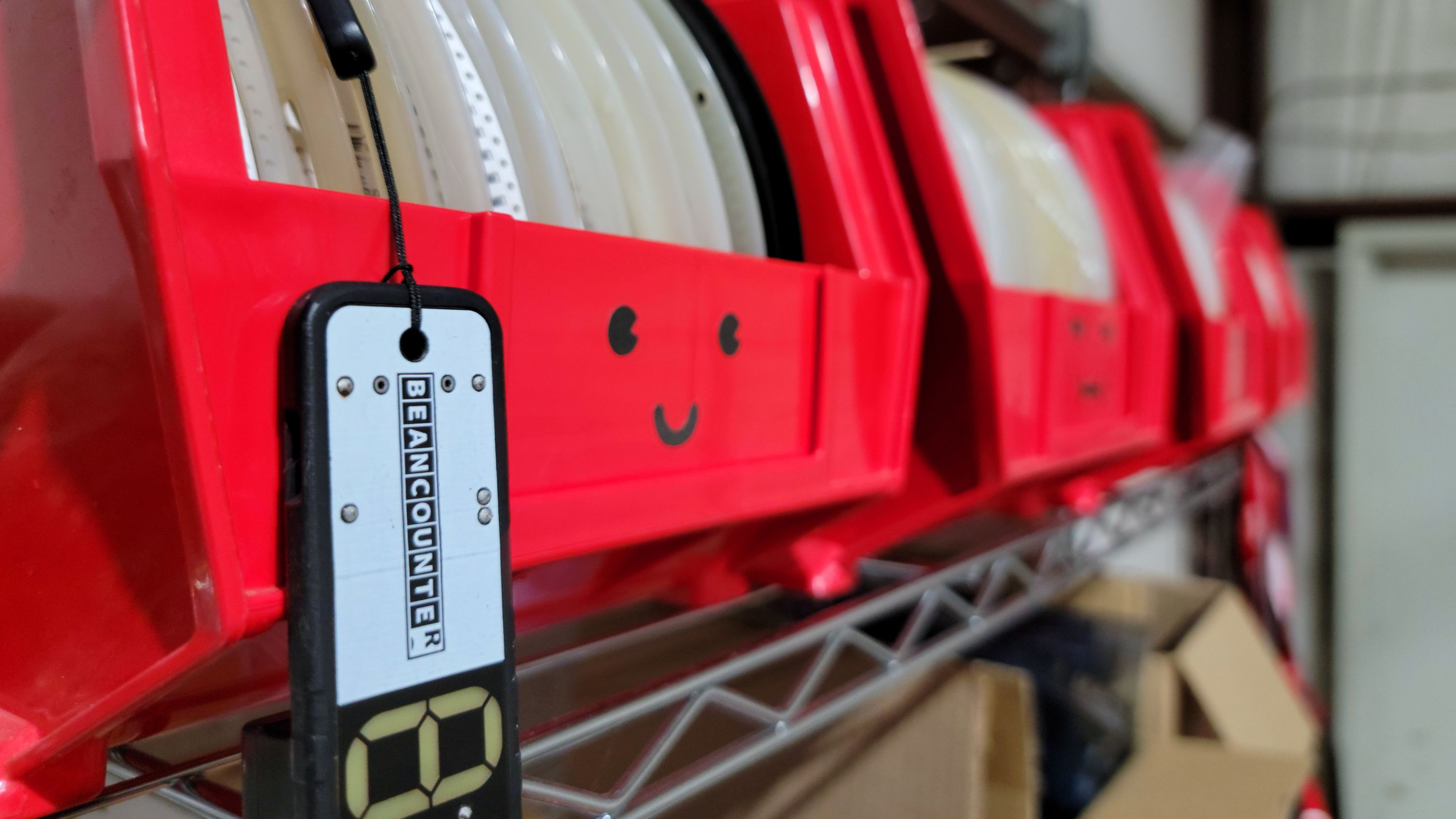

A tape-and-reel counter that you can carry around the warehouse floor is a game changer for inventory management. Spot check a partial reel before you start a build or pick a length of cut tape from a reel without dragging the whole thing to a tabletop reel counter. Equip each member of your team with their own BeanCounter or use the lanyard hole to anchor them to inventory shelves so they don’t get lost.

In the Field

Ever find yourself at a swap meet or surplus store browsing partial reels? With BeanCounter in your kit, you can determine whether or not that specified quantity—the one that’s been crossed out and re-written several times—is actually correct.

Features

• Counts any component on optically opaque, 8-mm-wide carrier tape up to 2 mm in height
• Adjustable part pitch
• Two counting modes: Inventory Mode and Dispense Mode
• A "Pause" button for starting or stopping a count mid-tape
• No moving parts means less wear and tear over time
• Runs on a single CR2032 coin-cell battery (or an external 3 V supply)
• LED segment display is visible in all lighting conditions
• A lanyard hole for attaching to a cable or wrist-strap
• Weighs less than 50 grams
