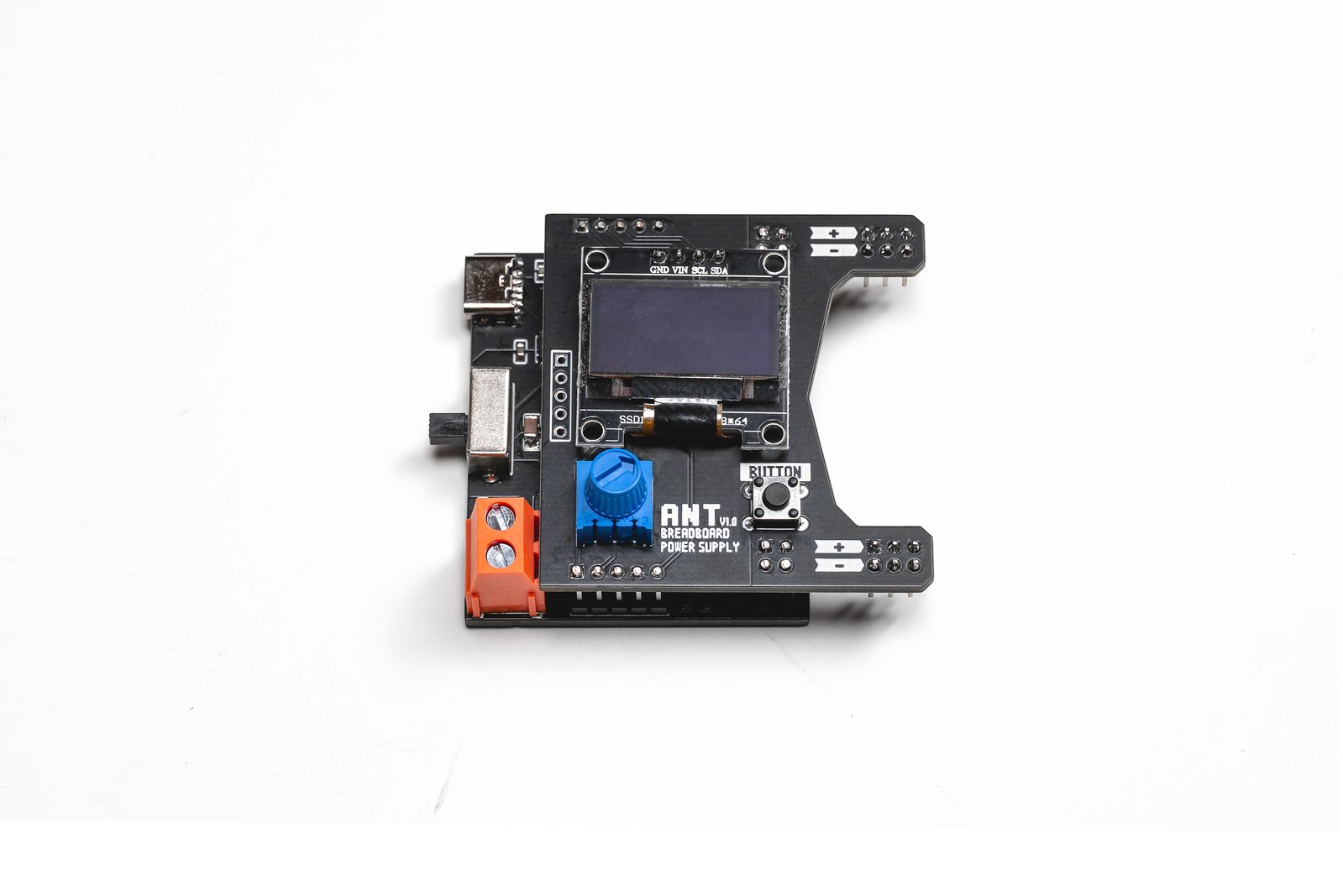

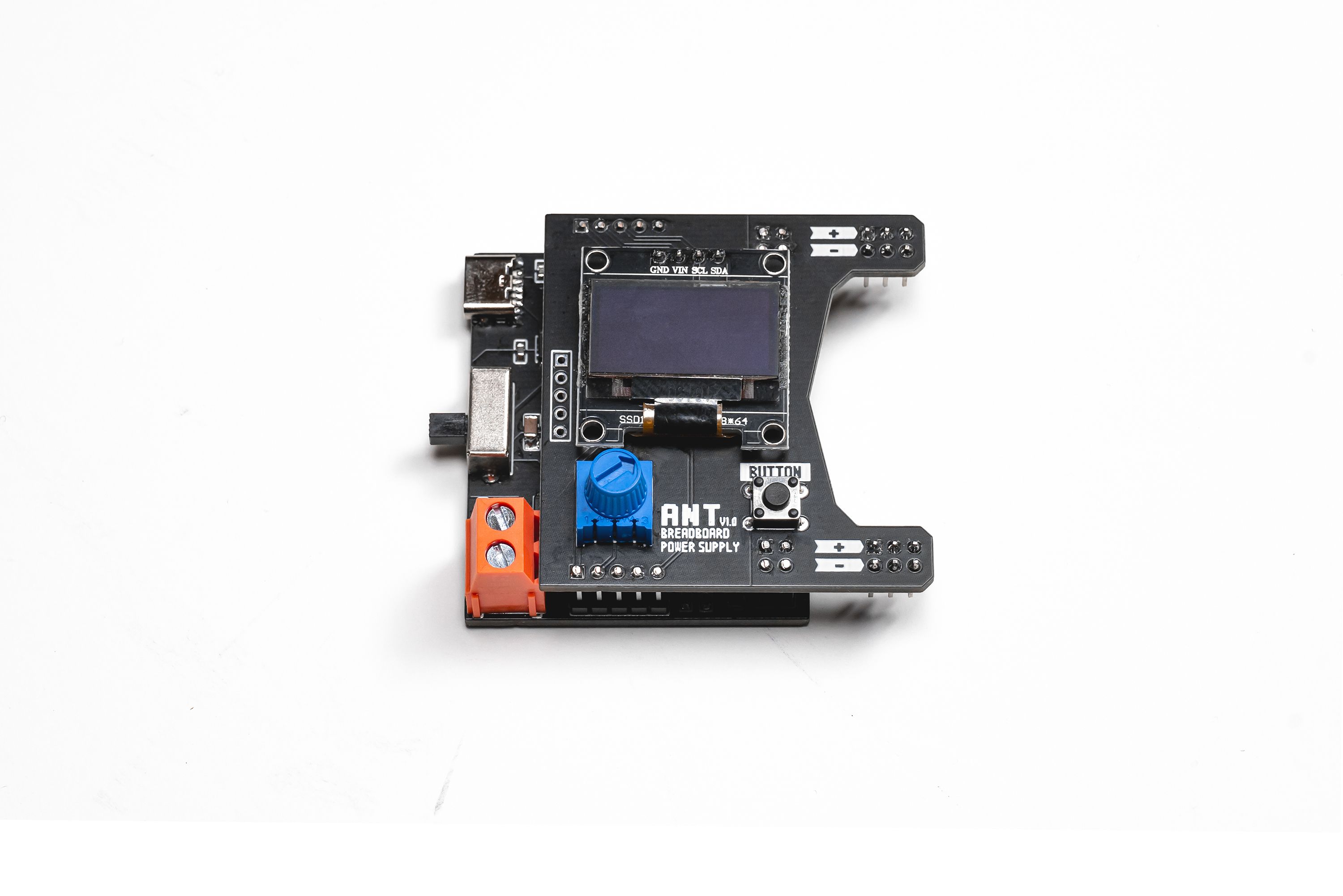

ANT BBPS is a small, elegant breadboard power supply (BBPS) carefully designed to connect to the end of any M102 breadboard. It’s unique shape plugs directly into the power connection pins and does not interfere with anything else.

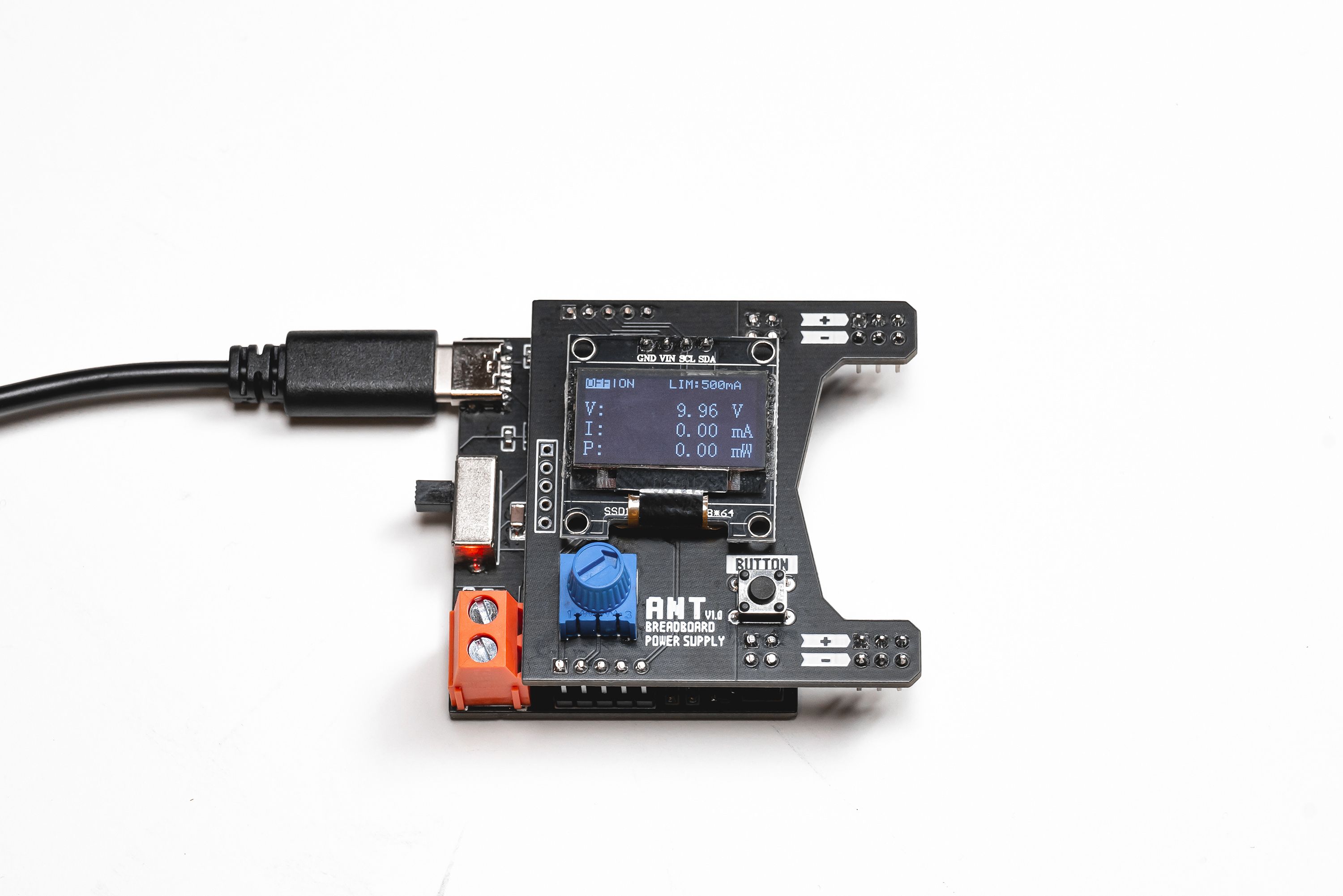

But that’s not all! ANT BBPS displays voltage, current and power on an OLED display. It has a digitally controlled current limit, a wide input voltage range, and up to 12 V DC output. It also has two input connections, a USB type-C connector and a screw terminal. The USB input means a battery bank can easily be used as your power source, and the screw terminal allows any other input source to be connected, such as AA and 9 V batteries, or even an old 7 V wall adapter you might have lying around.

With only one button and one potentiometer dial ANT BBPS is particularly easy to use. The potentiometer sets the output voltage and the button enables it. The button is also used to access the menu. As a final feature, ANT BBPS is designed to be small, light and portable. All of this makes ANT BBPS ideal for prototyping digital and analog circuits.

Features & Specifications

• 4.0 V DC - 13.0 V DC input
• 1.8 V DC - 12.0 V DC @ 1000 mA (12 W) output
• Voltage output set at 10 mV increments
• Digitally controlled current limit
• Current limit set at 50 mA increments
• External input connection
• Designed for M102 breadboards

Intuitive and Simple to Operate

1. Startup

• Switch power to the ON position
• At the top left corner of the screen is your output status, by default it is set to OFF
• Current limit is displayed at the top right corner of the screen
• Press the button to enable the output

2. Set Output Voltage

• Set your output voltage by turning the potentiometer left or right

3. Set Current Limit

• Long press the button until the menu appears
• Select the Current Limit Menu by long pressing the button while highlighted
• Toggle the current limit with a short press of the button
• Long button press one more time to display "SAVED" and exit the menu

Easy to Configure

Over Current Condition

• When an over current condition happens a message will appear on the screen
• Press the button to clear it
• Check your circuit or set new current limit before enabling again

OLED Orientation

• Long press the button until the menu appears
• Quick press the button to scroll to the Orientation Menu
• Long press the button again and the screen will rotate 180 degrees and exit the menu

Comparisons

Open Source

You can find our open source schematics and firmware in our GitHub repo.
