Hello DeepRad Community!
We’re excited to dive deeper into one of DeepRad’s most innovative features: its modular form factor. This update will explore how this design choice empowers you to create, customize, and innovate like never before!
The Power of Modularity
DeepRad’s modular design is more than just a feature—it’s a gateway to endless possibilities. Here’s why it’s a game-changer:
Simplified Integration: No need to design an RTL-SDR from scratch. DeepRad modules handle the complex RF considerations for you.
Customization: Easily adapt DeepRad to your specific project needs without starting from scratch.

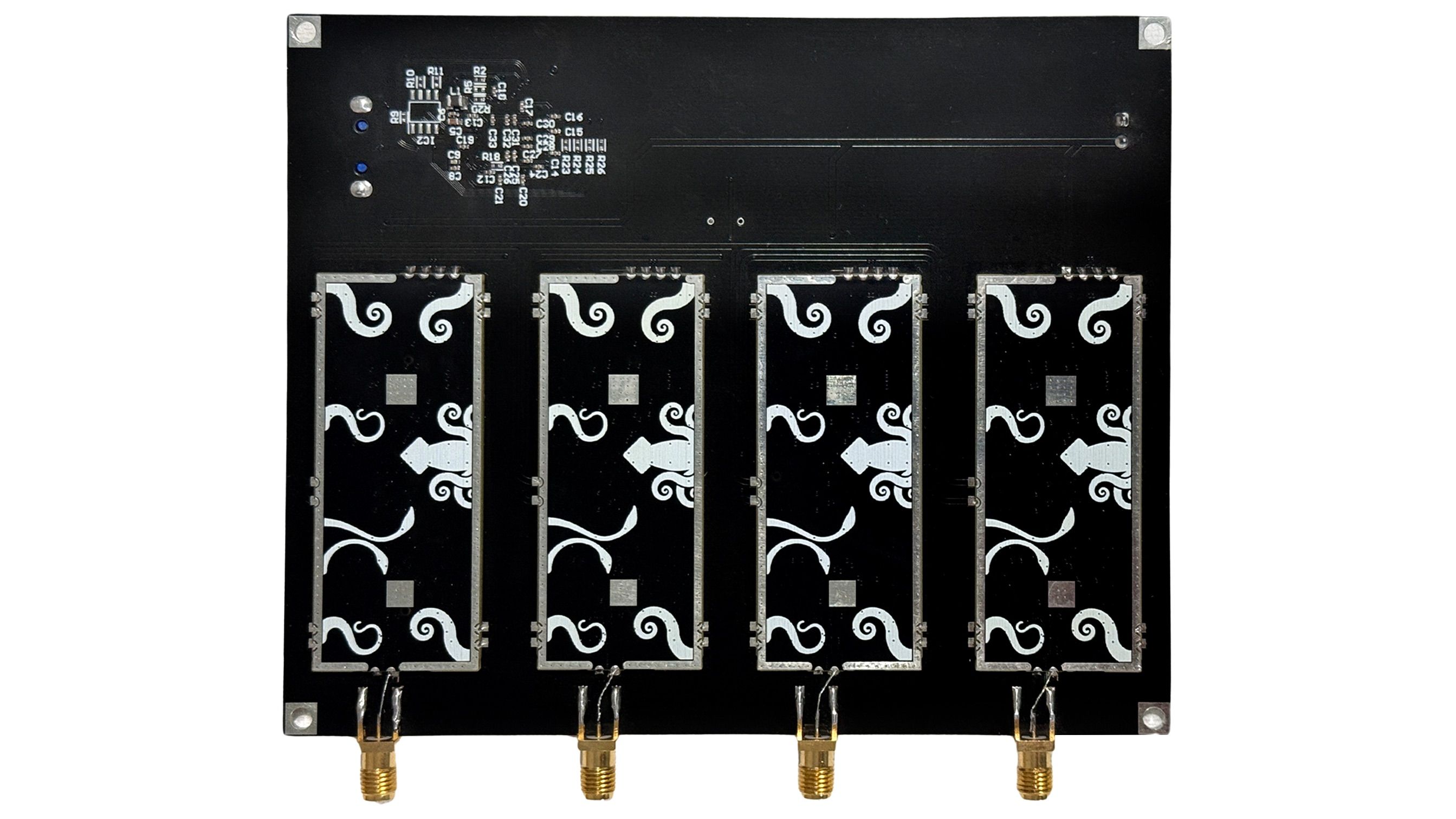

Scalability: Whether you need one receiver or many, DeepRad’s modular nature allows for simple scaling.

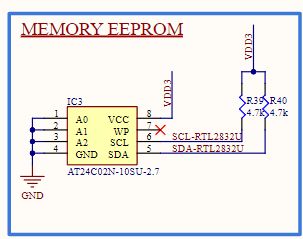

Key Characteristics of the DeepRad Module

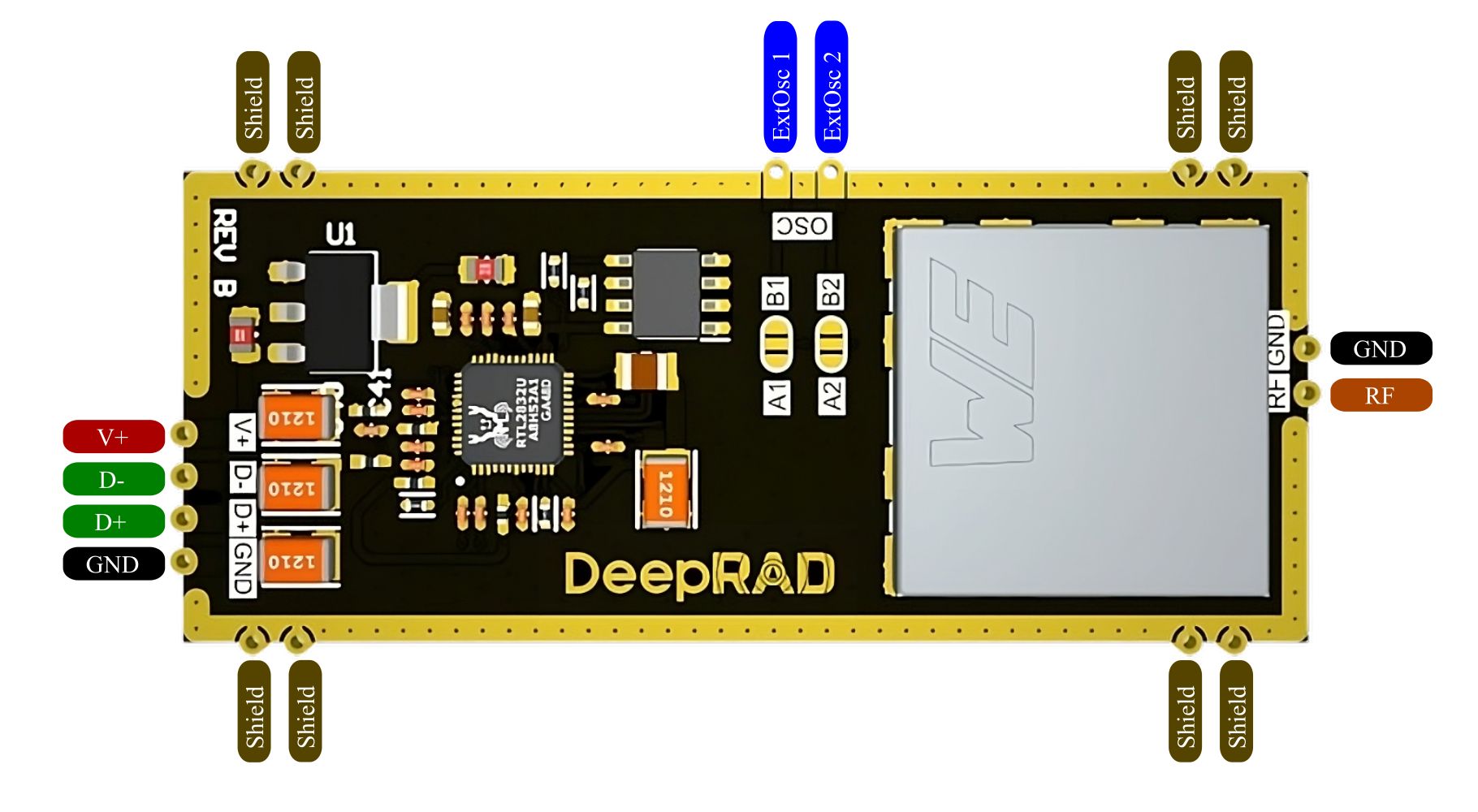

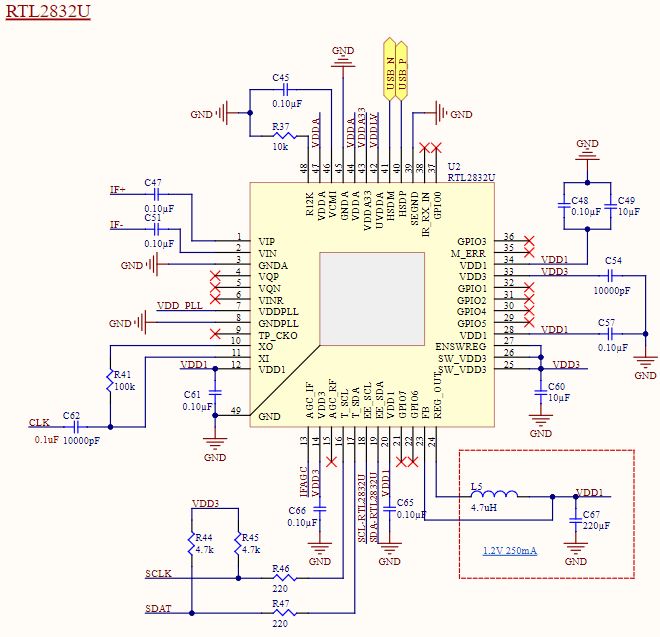

- USB Connectivity: D+ and D- pins for direct USB connection
- Power Supply: V+ pin for 5 V power

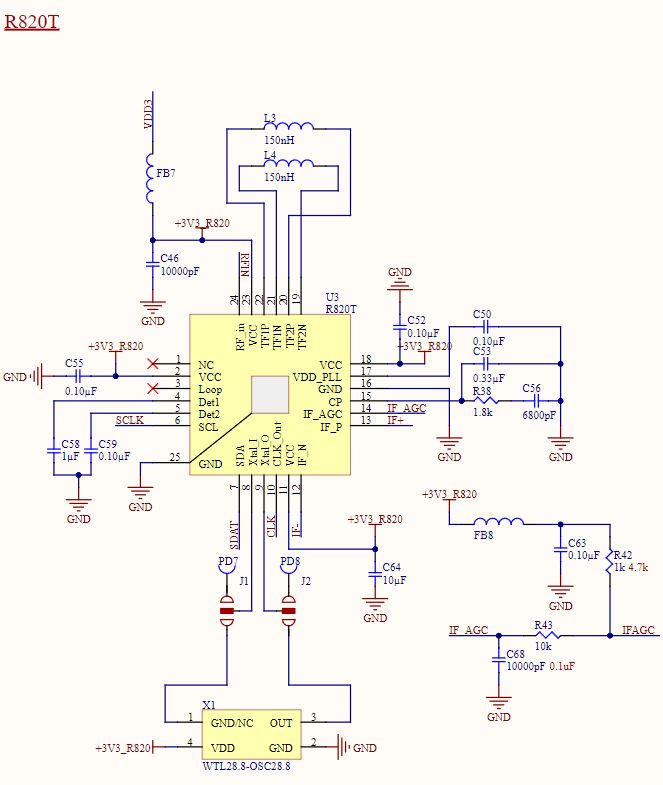

- Oscillator Options: Solderable jumpers (A1-B2/A2-B2) to choose between internal or external oscillator

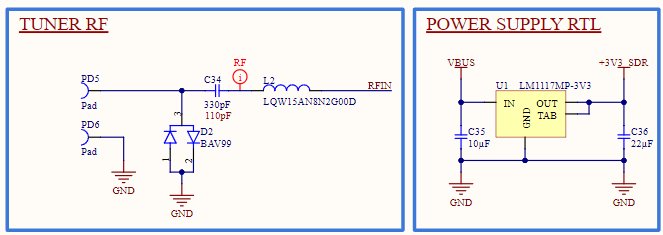

- Antenna Connection: Dedicated RF pin for flexible antenna options
- Mechanical Support: eight-shield pin connector for RF shielding and sturdy mounting
Designing Made Easy
With DeepRad, creating new designs is a breeze:
- Antenna Flexibility: Incorporate any type of antenna connector to suit your needs.
- Signal Enhancement: Add filters or components between the RF pin and antenna to improve signal quality.
- Timing Precision: Choose between internal or external oscillators for optimal synchronization.
- Connectivity Options: Select your preferred USB connector or integrate a USB hub.
- System Integration: Embed a complete system like a Raspberry Pi into your motherboard.
Under the Hood
DeepRad is open source and that means open for improvements. We are doing Twitch and improvements here and there and we want your feedback!
Why This Matters
- Rapid Prototyping: Get your ideas off the ground faster with pre-built RF functionality.
- Cost-Effective: Save time and resources by starting with a proven SDR solution.
- Focus on Innovation: Spend less time on RF design and more on your unique application.
- Community Collaboration: Share your designs and build upon others' work easily.
What’s Next?
We can’t wait to see what you’ll create with DeepRad! To support your journey:
- We'll be releasing detailed documentation on designing with DeepRad modules.
- Our community forum will be the perfect place to share ideas and get support.
- Stay tuned for design challenges and showcases of community projects!
Remember, whether you’re building a single-module project or a multi-receiver setup, DeepRad’s modular design has got you covered.
We’re thrilled to put this powerful tool in your hands and we can’t wait to see the innovative projects you’ll bring to life with it!
Happy designing!
The DeepSea Development Team
