Please note, this project page is now retired, and the M4 Breadstick project has been completely revamped and is now called Raspberry Breadstick.

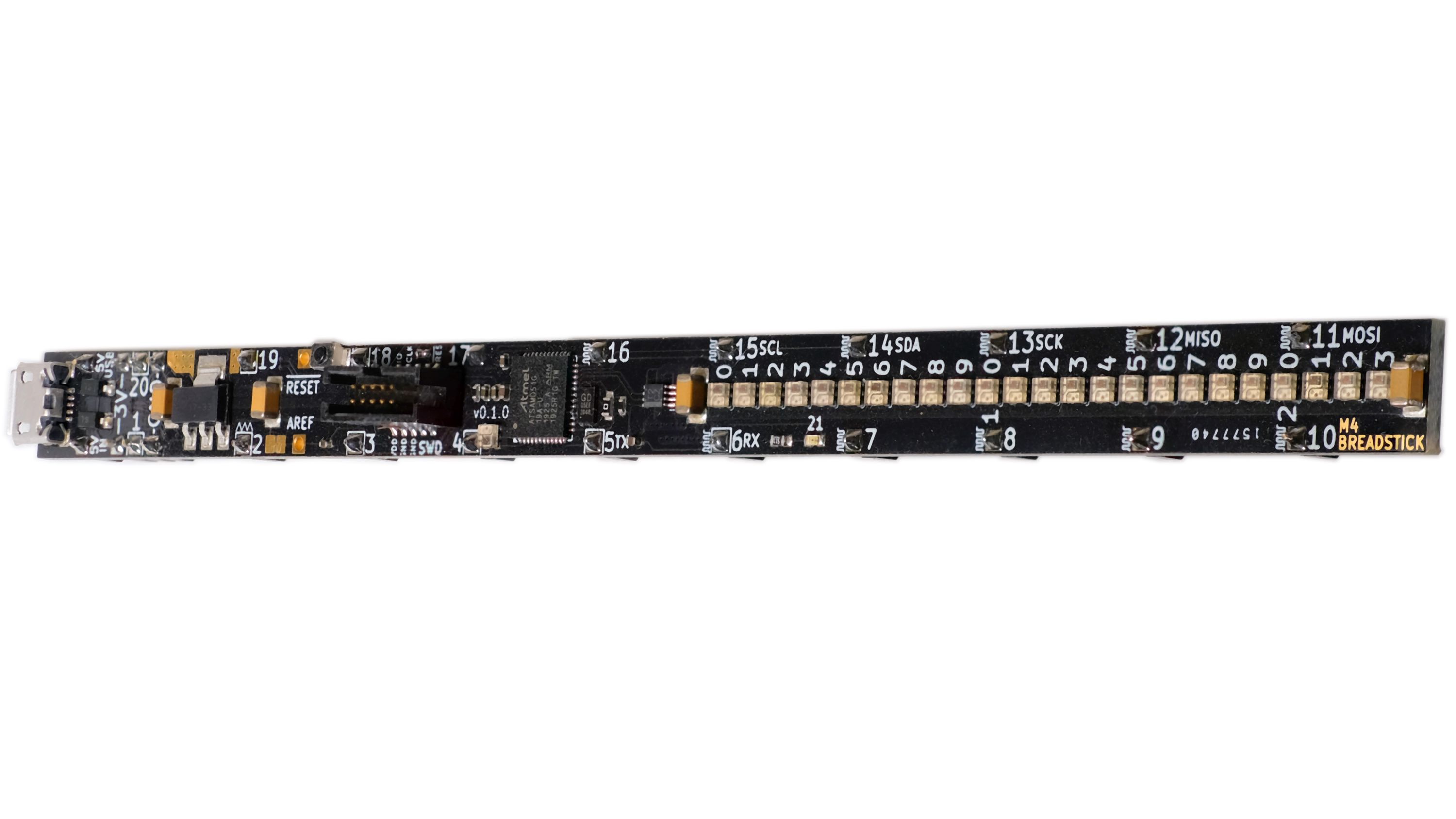

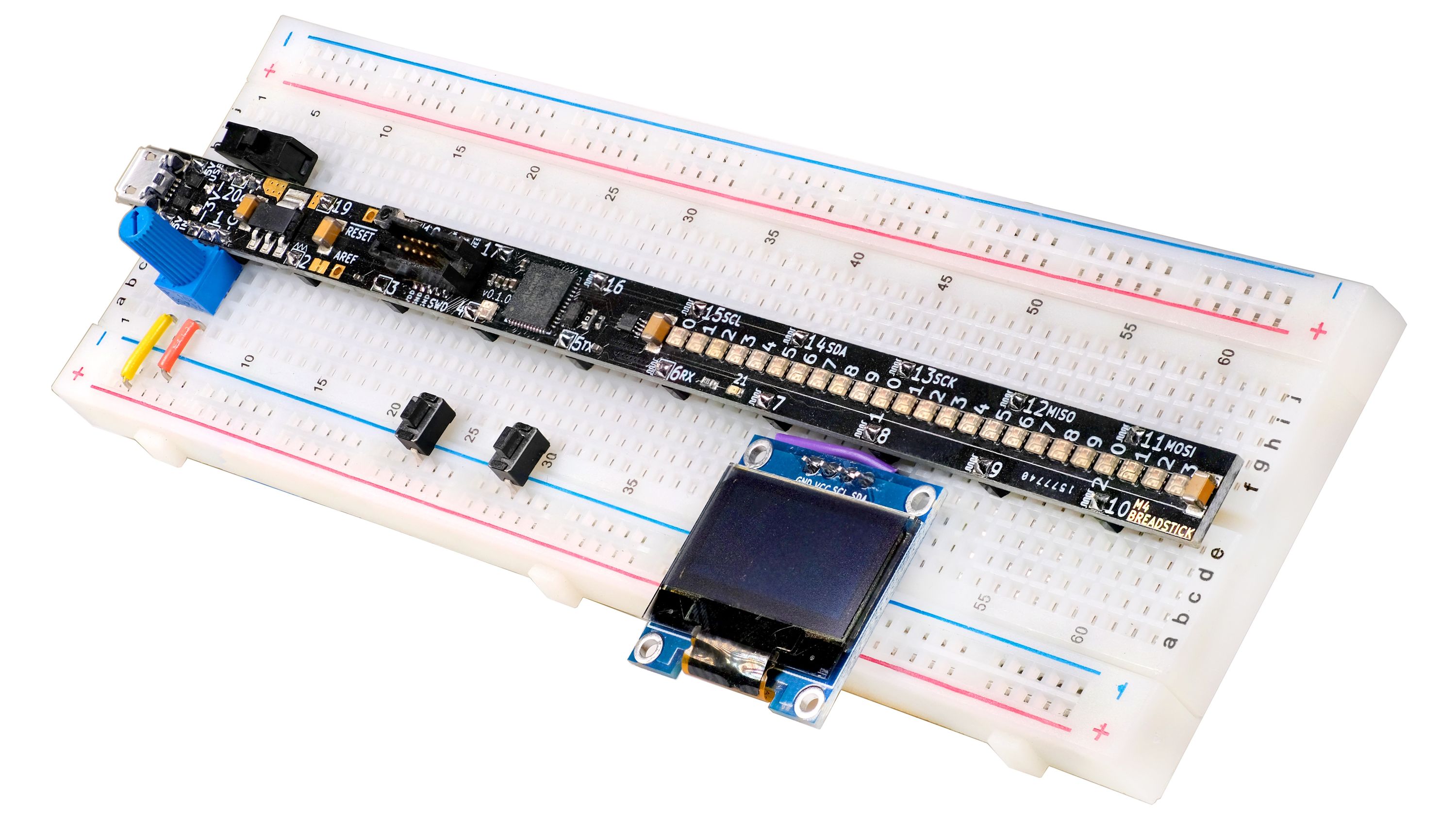

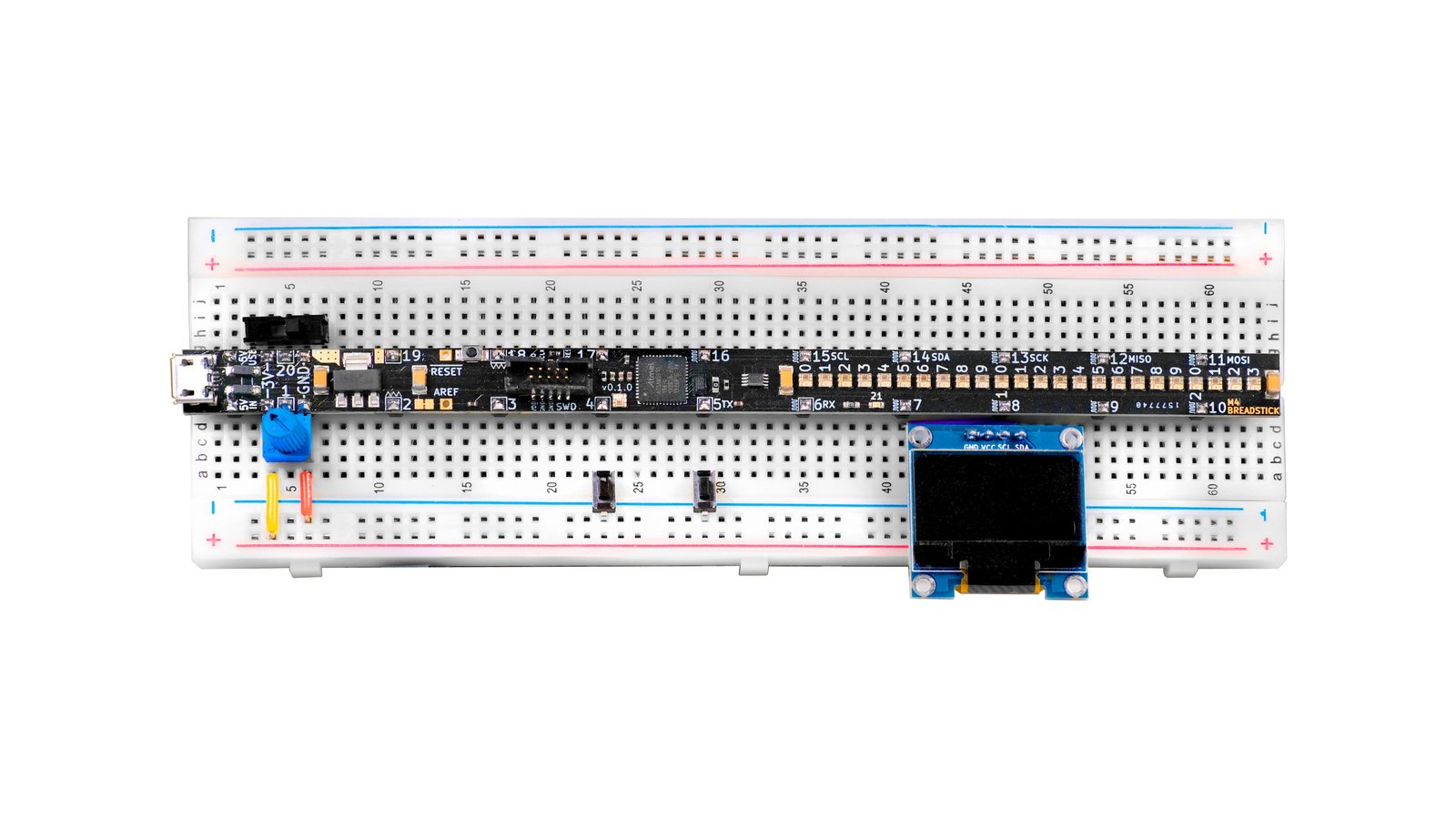

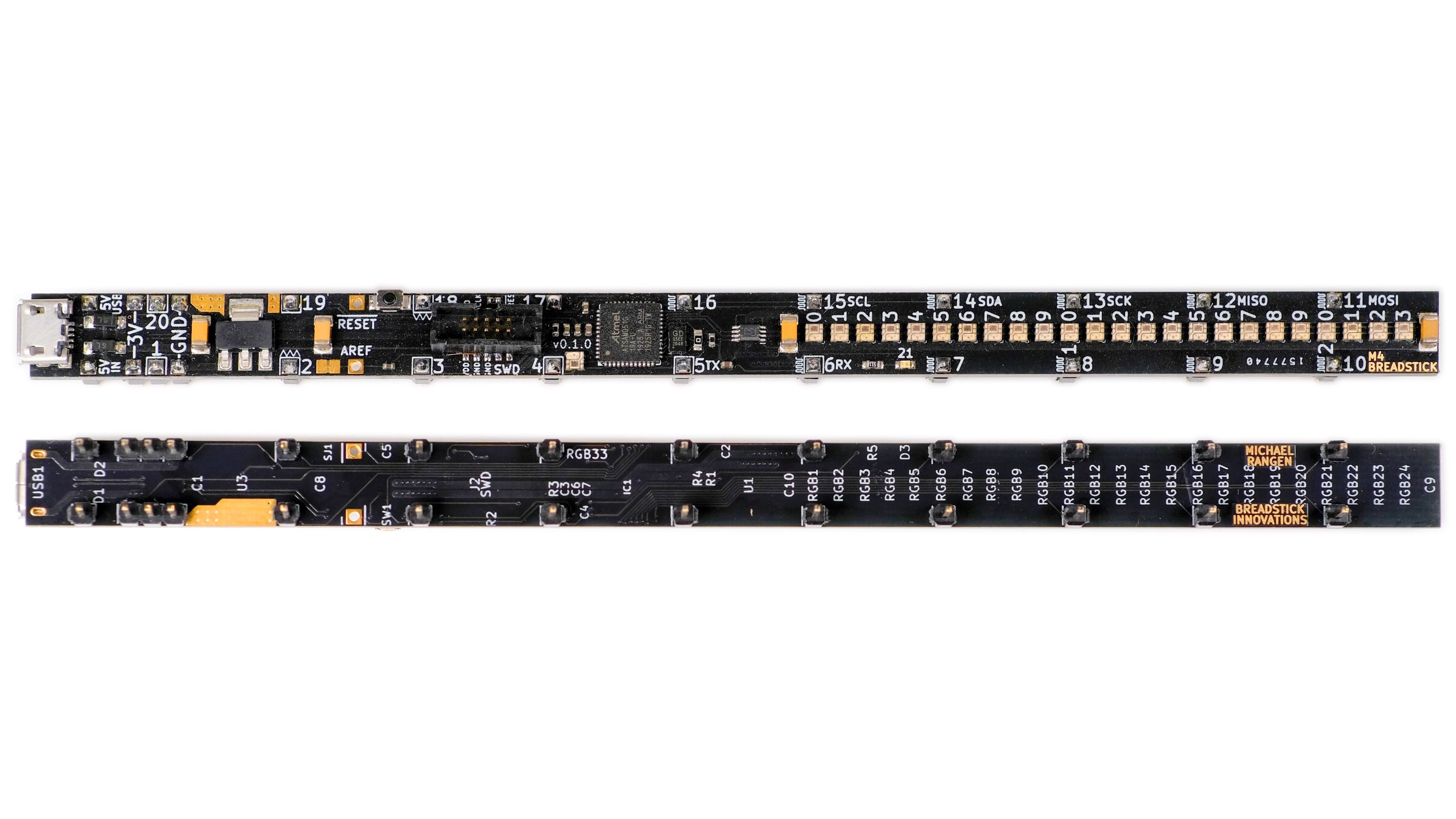

M4-Breadstick is a unique Microchip SAMD51 development board compatible with CircuitPython, Arduino, and Microchip Studio. It helps maximize your breadboarding cleanliness and efficiency by minimizing the length and number of jumper wires you need. It does this by spacing I/O pins along the full length of your breadboard.

Rapidly Prototype While Minimizing Mistakes

M4-Breadstick is both fun and incredibly useful. Imagine you are teaching CircuitPython to a classroom of students - this design will minimize the number of mistakes a student will make and also lessen the amount of time a teacher will spend helping a student troubleshoot. You will also find M4-Breadstick handy for rapid prototyping. Pots attached to A1 and A20 are automatically connected to 3.3 V and GND, so no additional wires are needed, and the LED strip can be conveniently used as a bar graph. The LED strip is also fast enough to be used as a POV display, meaning if things get exciting in your workspace you could wave it through the air and draw images, or use it for nighttime light painting.

Features & Specifications

• 20 x I/O pin
• Red LED
• DotStar-compatible RGB status LED
• 24 DotStar-compatible RGB LED strip, on dedicated communication bus
• 9 x ADC
• 2 x DAC
• Multiple reconfigurable serial communication buses
• 3.3 V regulator
• Micro-USB
• SWD interface

Open Source

You can find our design files and code in our Github.
