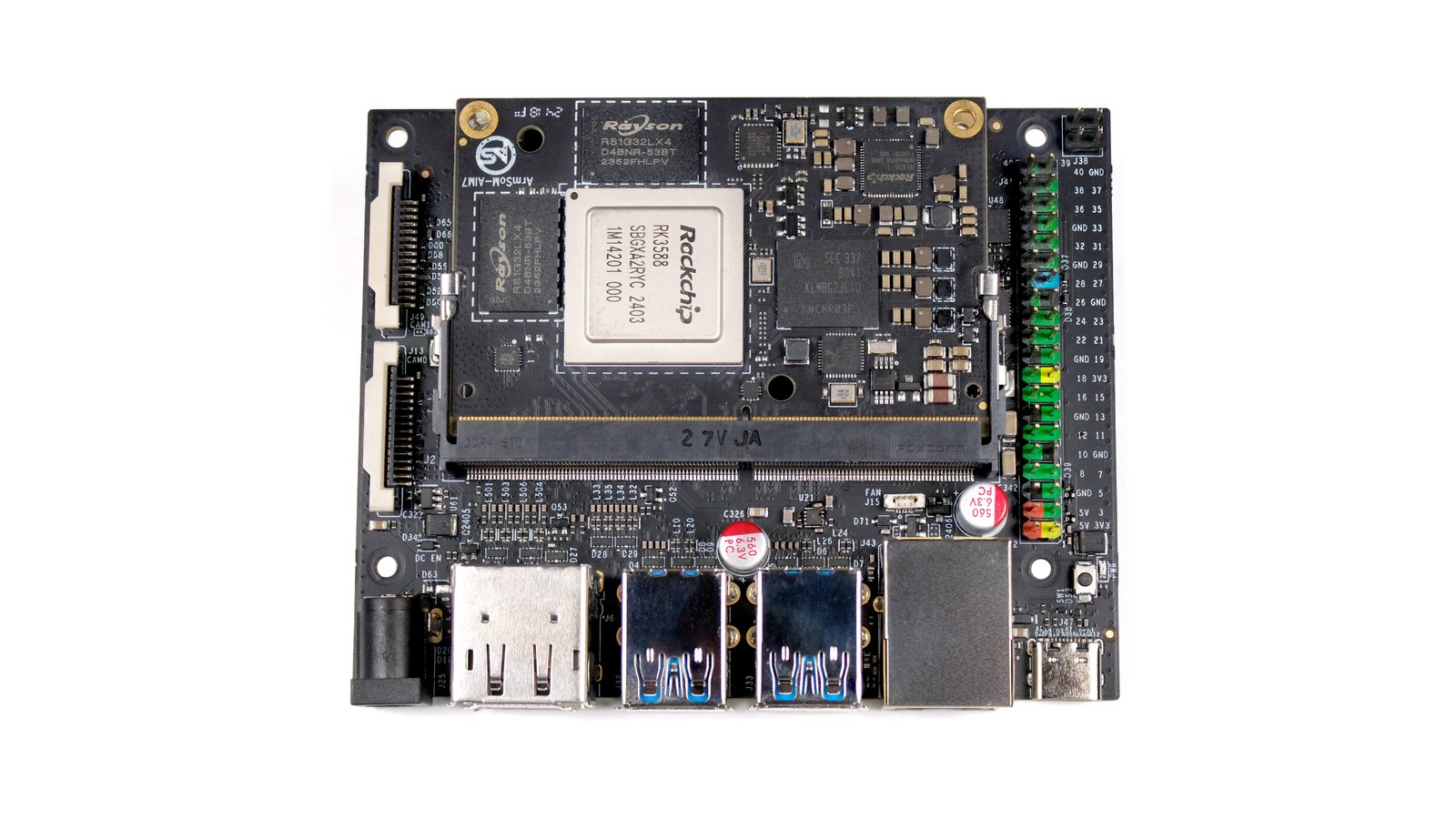

RK3588 AI Module7, powered by the Rockchip RK3588, offers a robust 64-bit octa-core processor with a maximum clock speed of 2.4 GHz, a 6 TOPS NPU, and supports up to 32 GB of memory. It is compatible with Nvidia’s Jetson Nano interface with upgraded and improved PCIe connectivity. Due to this module’s versatility, it caters to applications such as edge computing, cloud servers, AI, VR/AR, blockchain, and smart NVR security systems, not to mention general-purpose computing.

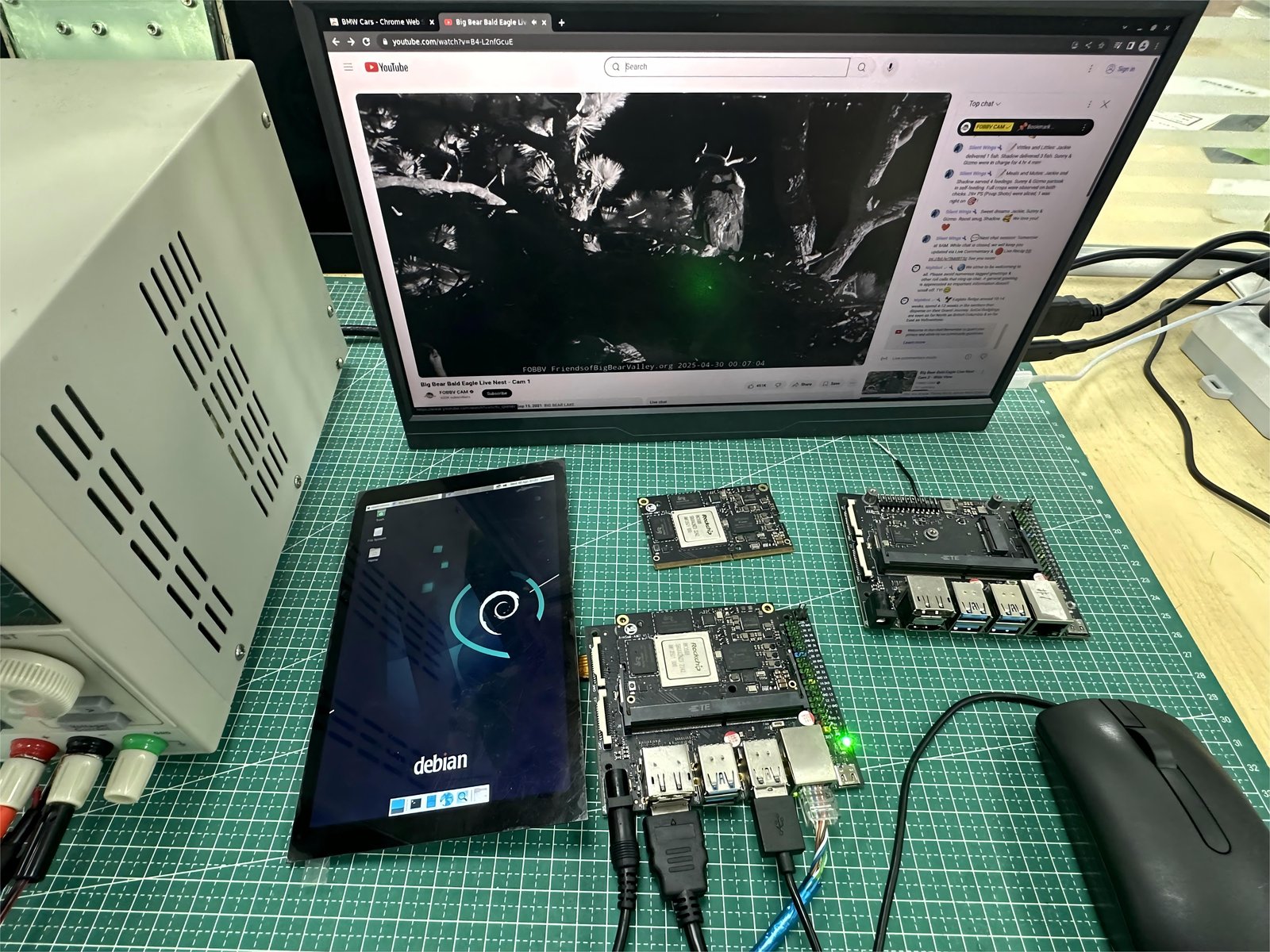

AIM-IO is a compact IO board compatible with current Jetson Nano core modules. With RK3588 AI Module7 installed, it becomes a mini AI computer designed for makers, learners, and developers capable of quickly implementing machine learning technology in various smart devices.

Unlock NPU Performance

With its Jetson Nano-style edge connector, RK3588 AI Module7 neatly fits into an existing, broad ecosystem of carriers and other compatible accessories. And with its powerful NPU, it’s excellent for intensive ML/AI tasks. Other use cases for ArmSoM RK3588 AI Module7 include:

• On-premise servers that require high-performance computing capabilities.
• HPC cluster nodes that need to operate with ultra-low power consumption.
• Compact computing clusters designed for custom processing tasks.
• High-density server integrations are ideal for deploying MLOps.
• Big-data storage and processing, especially for 3D graphics and AI applications.
• The onboard video encoder and decoder make real-time video streaming possible.

Comparisons

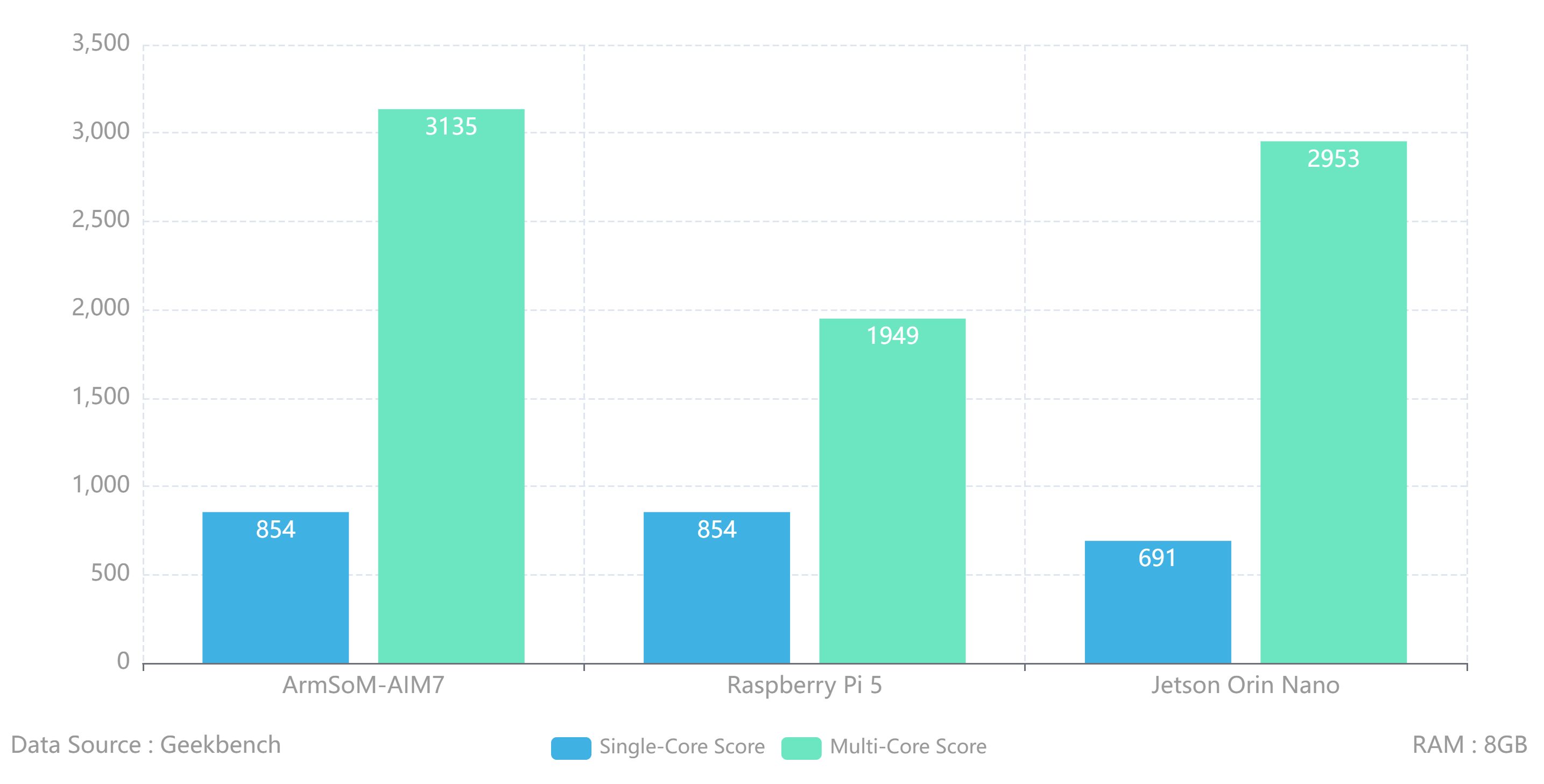

Performance

Geekbench source data: 1, 2, 3

Features & Specifications

• CPU: Rockchip RK3588 quad-core ARM Cortex-A76 + quad-core ARM Cortex-A55
• GPU: ARM Mali-G610 MP4
• Memory: 8 GB or 32 GB LPDDR4x, 2112 MHz
• Storage: 64 GB or 128 GB eMMC 5.1 flash storage
• Video encoding: Up to 8K@30 fps H.265 / H.264 250 MP/sec
• Video decoding: Up to 8K@60 fps H.265/VP9/AVS2, 8K@30 fps H.264 AVC/MVC
• USB ports: 1x USB 3.0, 3x USB 2.0
• Ethernet：1x 10/100/1000 BASE-T
• CSI interfaces: 12 channels (4x2) MIPI CSI-2 D-PHY1.1 (18 Gbps)
• I/O interfaces: 3 UARTs, 2 SPIs, 2 I2S, 4 I2Cs, multiple GPIOs
• PCIe: 1x 1/2/4-lane PCIe 3.0 & 1x 1-lane PCIe 2.0
• HDMI output: 1x HDMI 2.1 / 1x eDP 1.4
• DisplayPort interface: 1x DP 1.4a 1x DP 1.2
• eDP/DP interface: 1x eDP 1.4 / 1x HDMI 2.1 out
• DSI interface:1x DSI (1x2) 2x sync
• OS support: Debian, Ubuntu, Armbian, Linux kernel 5.10
• Size: 69.6 x 45 mm (2.74 in x 1.77 in)
• Form factor: 260-pin edge connector, compatible with Nvidia Jetson Nano

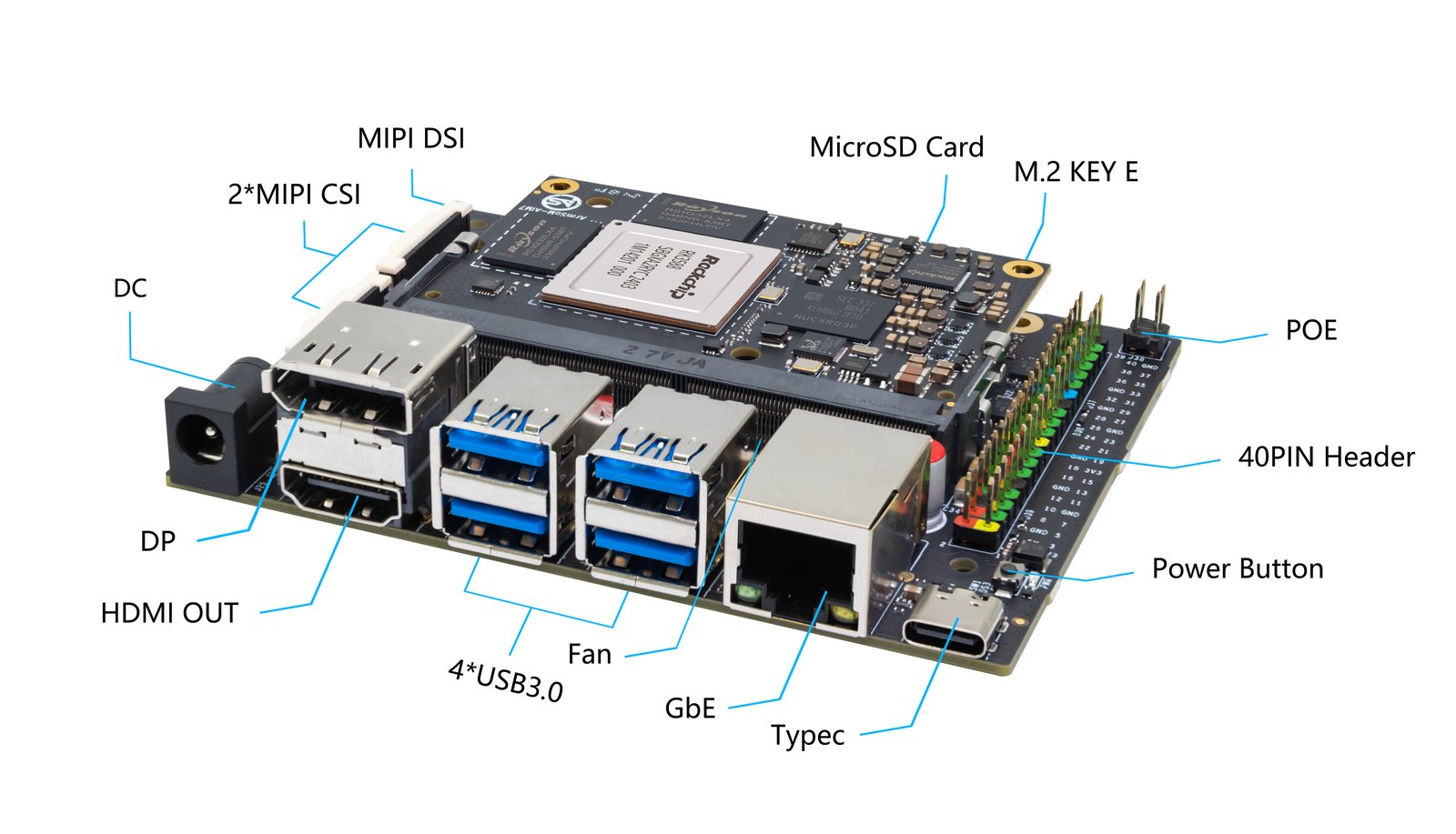

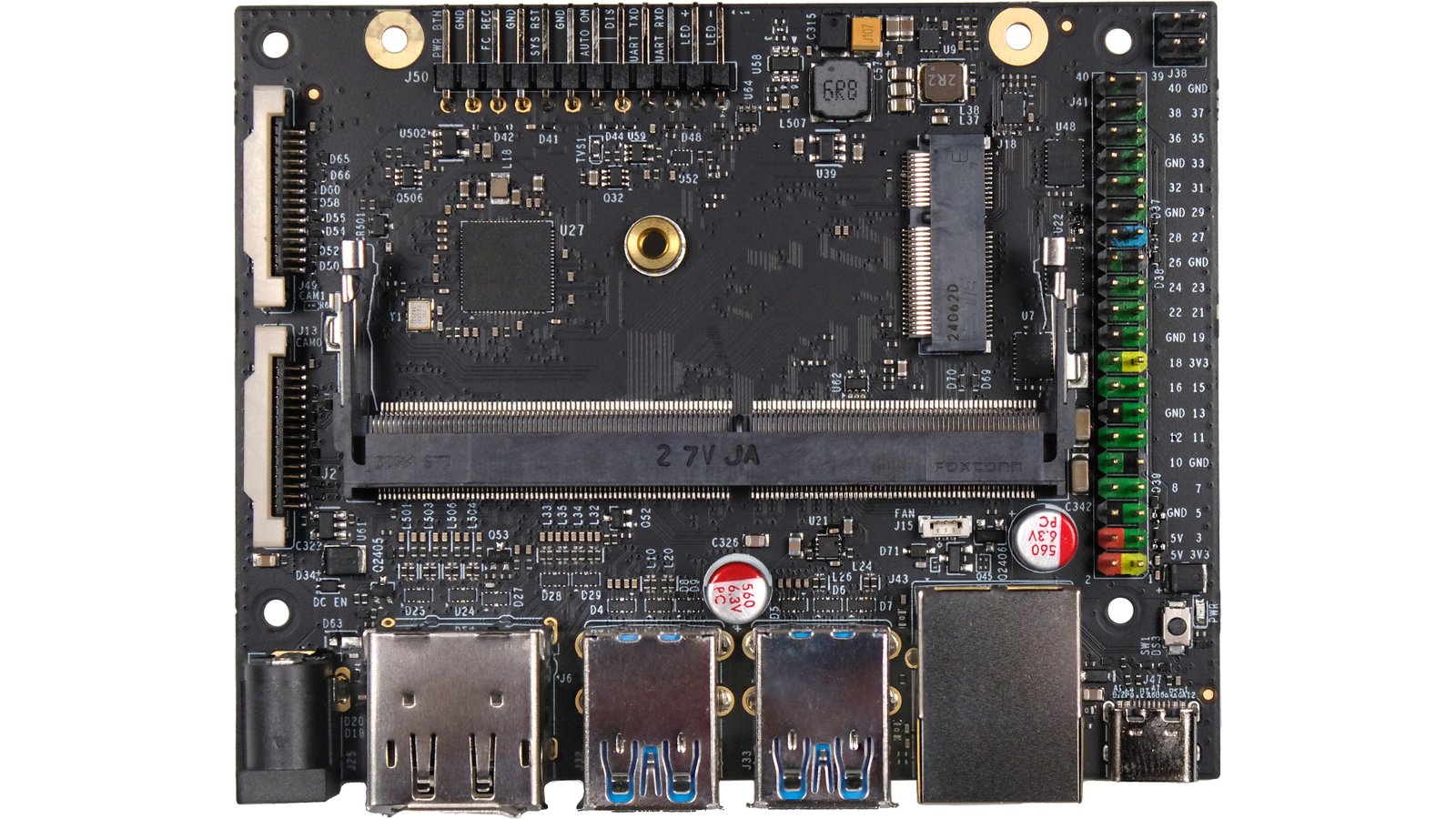

AIM-IO Carrier Board

The AIM-IO Board is a companion board for AIM modules designed to assist developers using AIM modules in completing system and embedded board development. Compared to the Jetson Nano Developer Kit (B01), the AIM-IO Board is the same size but has a broader array of expansion options.

• USB ports: 4x USB 3.0 Type-A
• Display: 1x DisplayPort, 1x HDMI-out
• Networking: Gigabit Ethernet
• GPIO: 40-pin expansion header
• Power connectors: DC Barrel jack for 5V power input, 5 V via Power over Ethernet
• Expansion: M.2 (E-key, PCIe/USB/SDIO/UART), microSD
• MIPI DSI: 1x 4 lanes MIPI DSI up to 4K@60 fps (x4)
• MIPI CSI0/1: 2x 2 lanes MIPI CSI，Maximum 2.5Gbps per lane.
• MIPI CSI2/3: 1x 4 lanes MIPI CSI，Maximum 2.5Gbps per lane.
• Firmware: Flashing and device mode via USB Type-C
• Dimensions: 100 x 80 x 29 mm (3.94 x 3.15 x 1.14 in)

Open Source

The firmware source and board schematics will be made available during the crowdfunding campaign.
