An open-source high-speed camera-development board targeting the SLVS-EC & MIPI sensors on AMD's Kria SOM architecture
ApotheoTech LLC
Video & Cameras
FPGA Boards

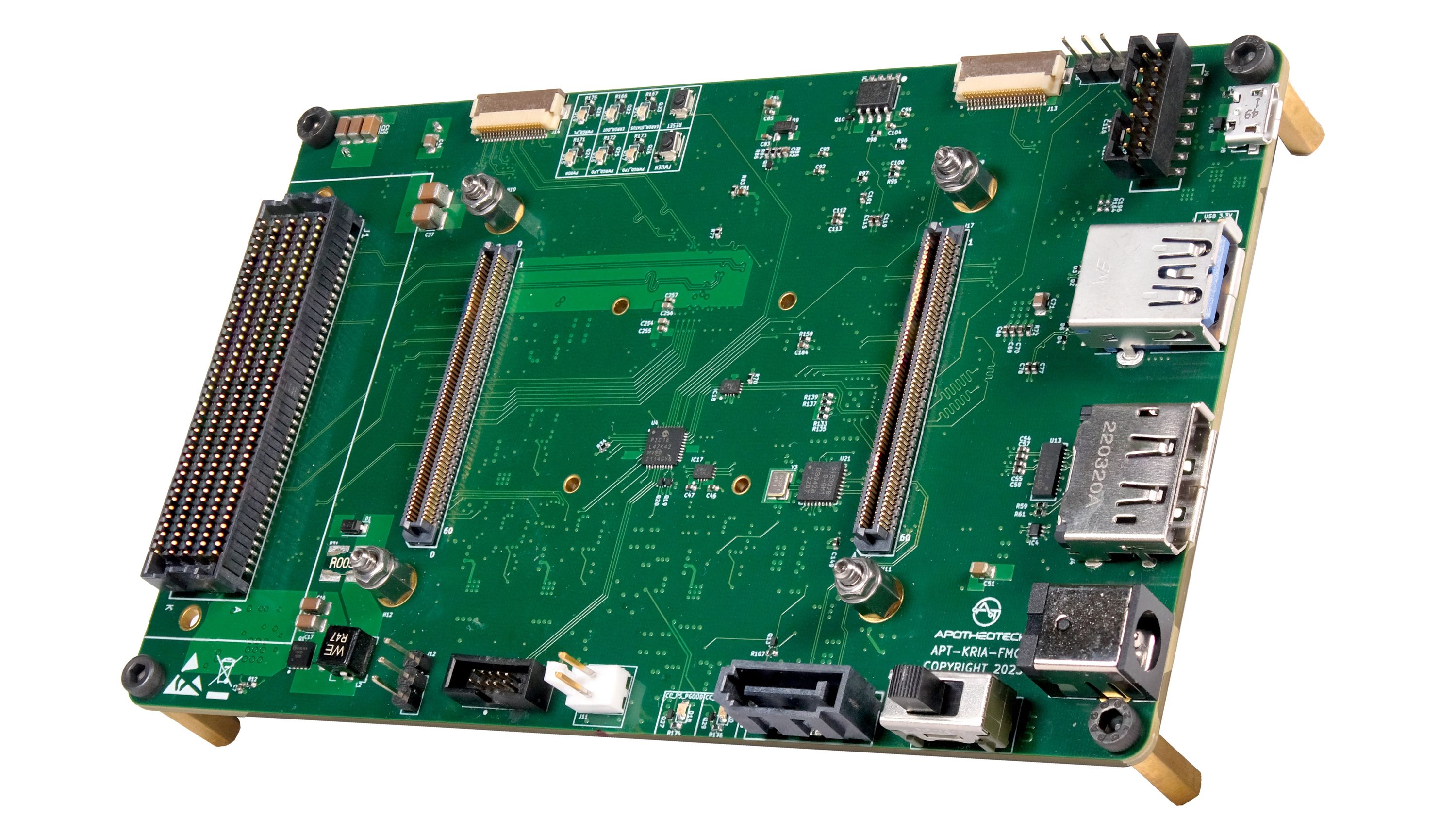

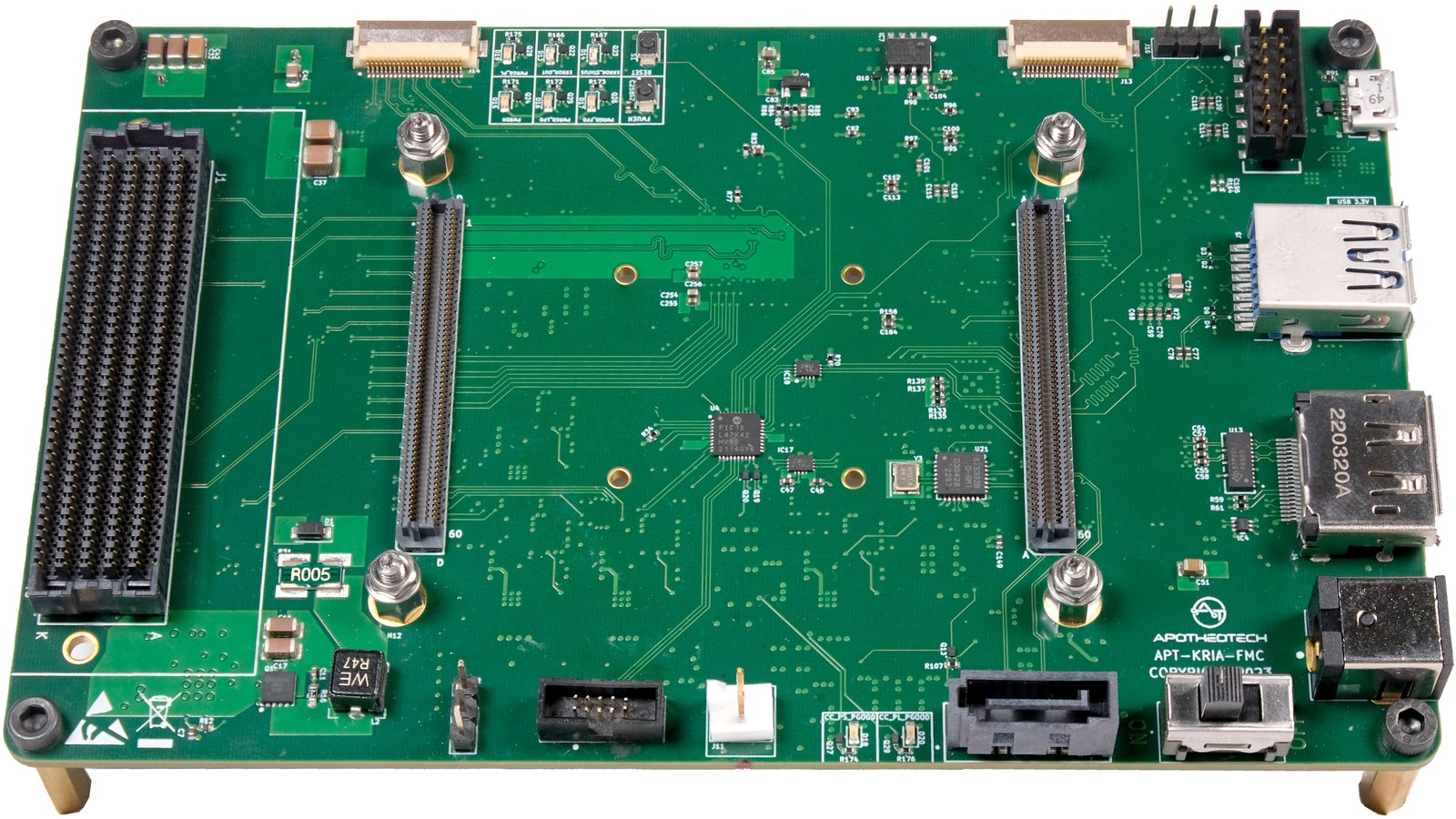

Embark on a technological journey with Aper-Oculus, our game-changing carrier board for the AMD Xilinx Kria SOM. Crafted for embedded-vision and edge-AI innovators, Aper-Oculus is the catalyst that will transform your ideas into powerful, efficient, vision-related applications. It stands out from the crowd thanks to high-speed interfaces and a wide array of connectivity options, making it an indispensable tool for developers, engineers, and creators in robotics, automation, and AI.
Aper-Oculus sets a new standard in vision technology. Built around an SLVS-EC interface, it ensures high-quality, high-speed video input to the FPGA – a critical feature for applications, such as high-speed automation, that demand precision. Aper-Oculus also features MIPI connectivity, which supports additional camera sensors, time-of-flight sensors, and displays.
Aper-Oculus is a testament to adaptability and scalability in the rapidly evolving world of technology. Its FMC connector offers unparalleled prototyping flexibility by accommodating a multitude of high-speed expansion boards so you can integrate the functionality you need whether you’re developing applications for aerospace, defense, research, or some other cutting-edge domain.
With comprehensive interface options—including dual MIPI connectors, DisplayPort, USB 3.0, and SATA I/O—Aper-Oculus meets the diverse demands of AI and robotics. It is well equipped to handle scenarios that require advanced video processing, high-speed data transfer, reliable storage, and more.

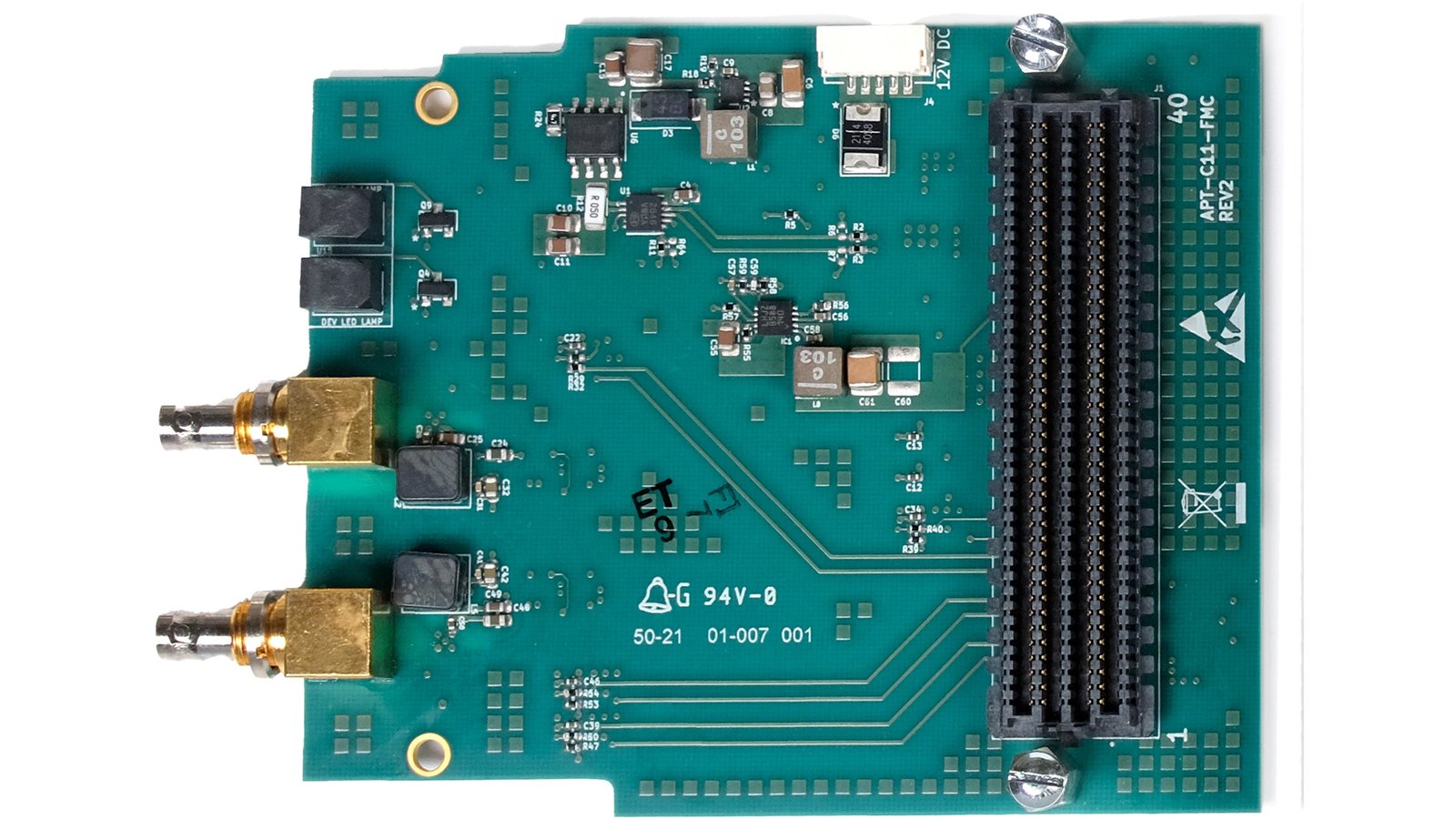

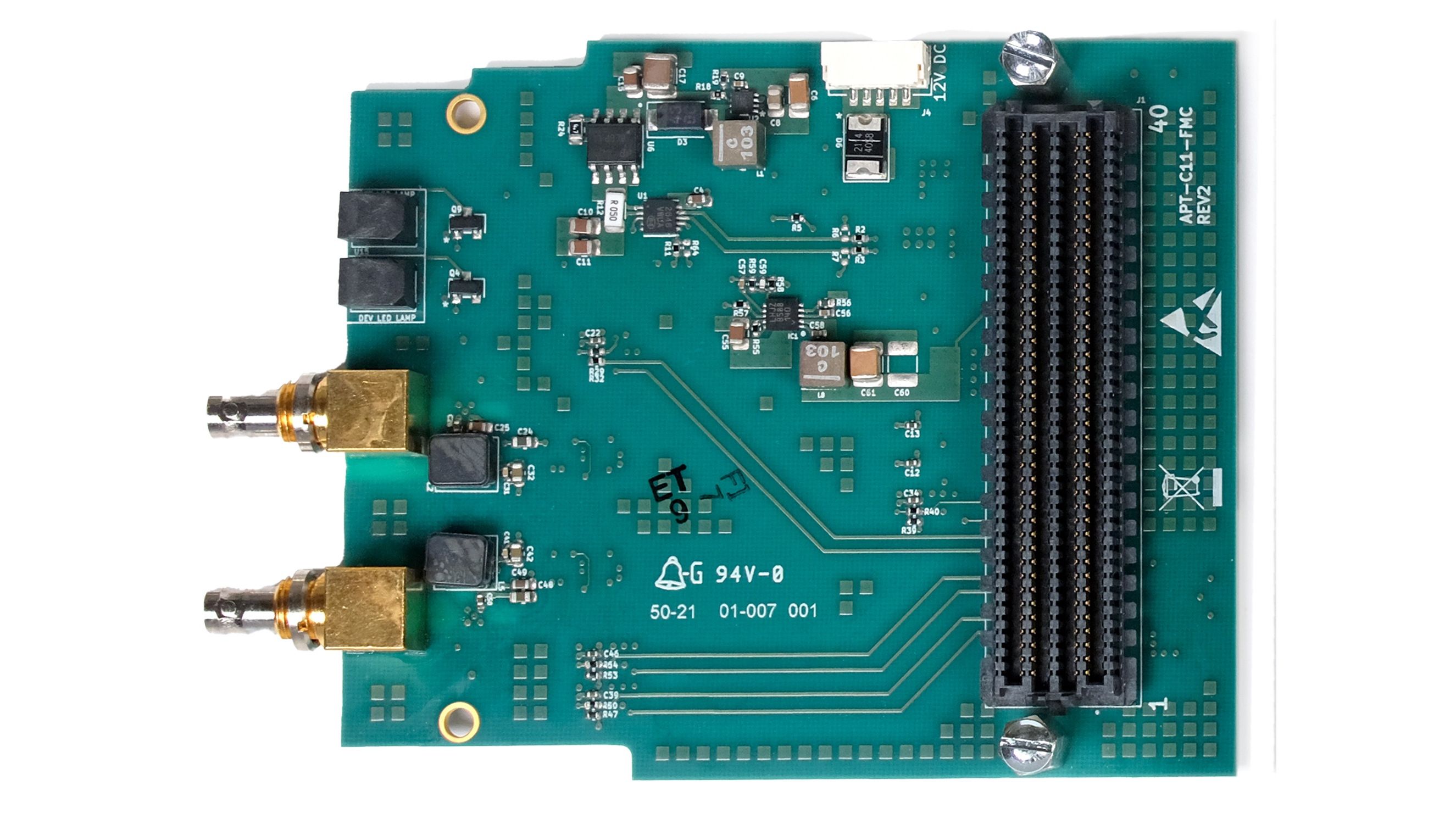

CXP Dualis FMC is an LPC-FMC board that allows you to prototype both Host and Device solutions for CoaXPress up to CXP 12, which provides support for PoCXP and PoCXP detection. CXP Dualis FMC supports one Host link, to which it provides power over CoaXPress, and one Device link. Sample designs are available to demonstrate its functionality and ease of integration.

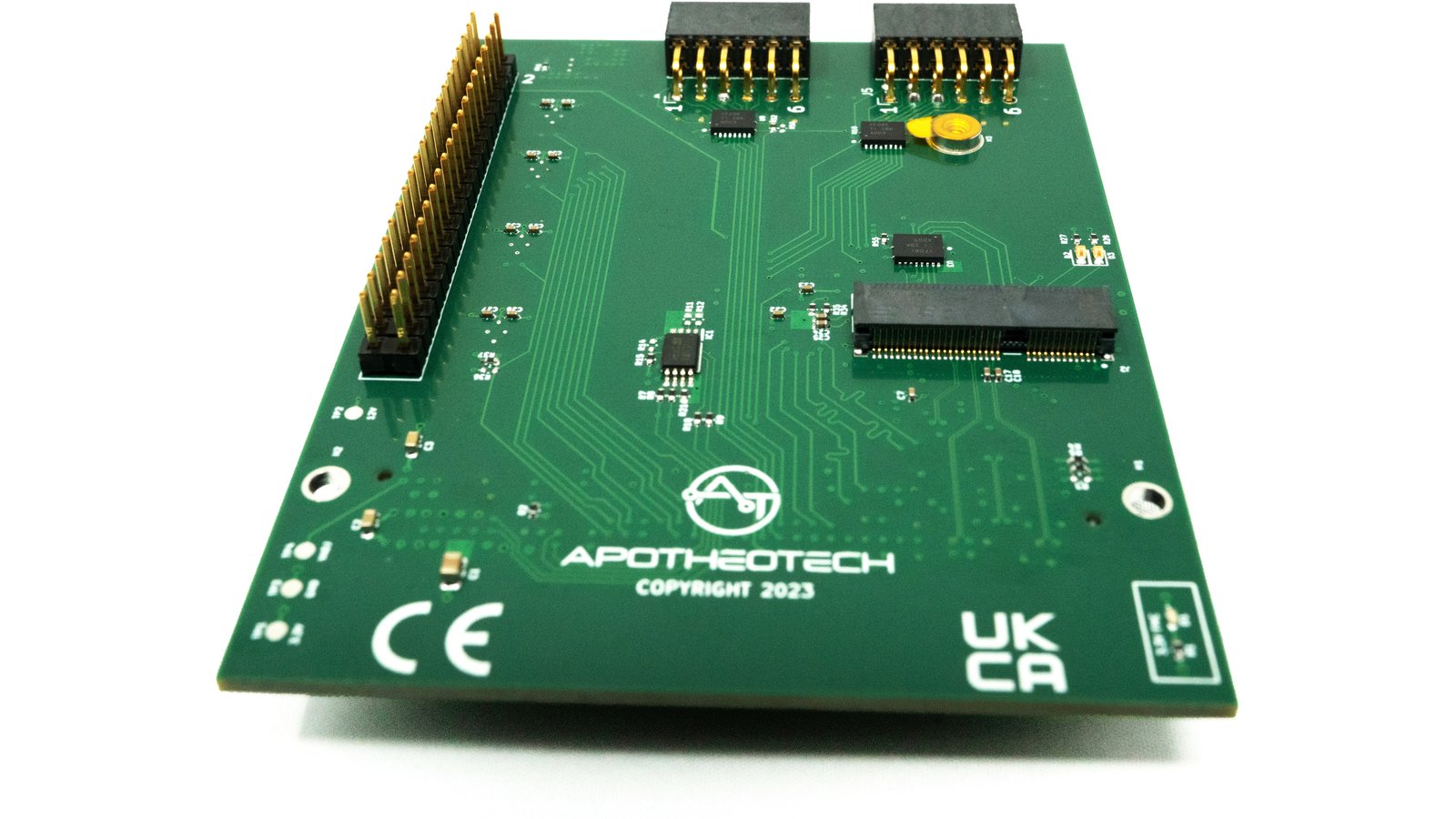

VincuLink FMC is an LPC-FMC GPIO-expansion board that allows you to connect M.2 E-Key PCIe cards, RPi HATs, and PMODs to FMC-compatible carrier boards like Aper-Oculus. In addition to an M.2 E-Key connector for Wi-Fi and Bluetooth cards, VincuLink FMC includes a Raspberry Pi HAT GPIO connector for additional interface options.
| Aper-Oculus | AMD KR260 | AMD KV260 | AntMicro Kria Carrier | Innodisk EXMU-X261 | |
|---|---|---|---|---|---|
| Raspberry Pi Header | FMC dependent | Yes | No | No | No |
| HDMI | FMC dependent | No | No | No | No |
| M.2 E-Key | FMC dependent | No | No | No | No |
| FMC | 1x | - | - | - | - |
| DisplayPort | 1x | 1x | 1x | 1x | - |
| USB 3.0 | 1x | 4x | 4x | 4x | 4x |
| USB Type-C | - | - | - | Yes | - |
| SLVS-EC | 1x (2 lanes total) | 1x (2 lanes total) | - | - | - |
| MIPI | 2x (8 lanes total) | - | 2x (8 lanes total) | 2x (8 lanes total) | - |
| Barometer | Yes | - | - | - | - |
| Accelerometer | 3 axis | - | - | - | - |
| 6G SATA | Yes | - | - | - | - |
| SD Card | Yes | Yes | Yes | Yes | Yes |
| Ethernet | - | 4x (GbE), 1x SFP+ (10 Gb) | 1x (GbE) | 1x (GbE) | 1x (GbE) |
| PMODs | - | Yes | Yes | Yes | - |
| Price | $750 | $349 | $249 | Unknown | $899 |
All of our published documentation, source code, and design files will be in our GitHub repository. That will includes our:
Following their successful track record with our prototypes, PCBWay will handle production assembly of Aper-Oculus. They are known for their precision manufacturing of HDI boards and for excellent quality control, both of which align with our commitment to excellence. Aper-Oculus is sponsored by PCBWay and will use components sourced from Mouser Electronics.
After our production run is complete, we will package everything up and send it along to Crowd Supply’s fulfillment partner, Mouser Electronics, who will handle distribution to backers worldwide. You can learn more about Crowd Supply’s fulfillment service under Ordering, Paying, and Shipping in their guide.
We are confident that our team’s extensive experience, combined with contingency plans and buffer periods we’ve put in place, will minimize the impact of unexpected challenges like component shortages and manufacturing delays.
"Utilize the AMD-Xilinx Kria K26 SoM for high-speed camera applications with the new Aper-Oculus carrier board."
Produced by ApotheoTech LLC in Orlando, FL, USA.
Sold and shipped by Crowd Supply.
A carrier board for the Kria SoM from Xilinx. It is a compact, modular solution for makers and professionals who work in high-speed digital design, and it supports a wide range of I/O options, including FMC, MIPI, and an SLVS-EC connector that's compatible with the FRAMOS FSA/FSM architecture.
An LPC-FMC board that allows you to prototype both Host and Device solutions for CoaXPress up to CXP 12, which provides support for PoCXP and PoCXP detection.
An LPC-FMC GPIO-expansion board that allows you to connect M.2 E-Key PCIe cards, RPi HATs, and PMODs to FMC-compatible carrier boards like Aper-Oculus.

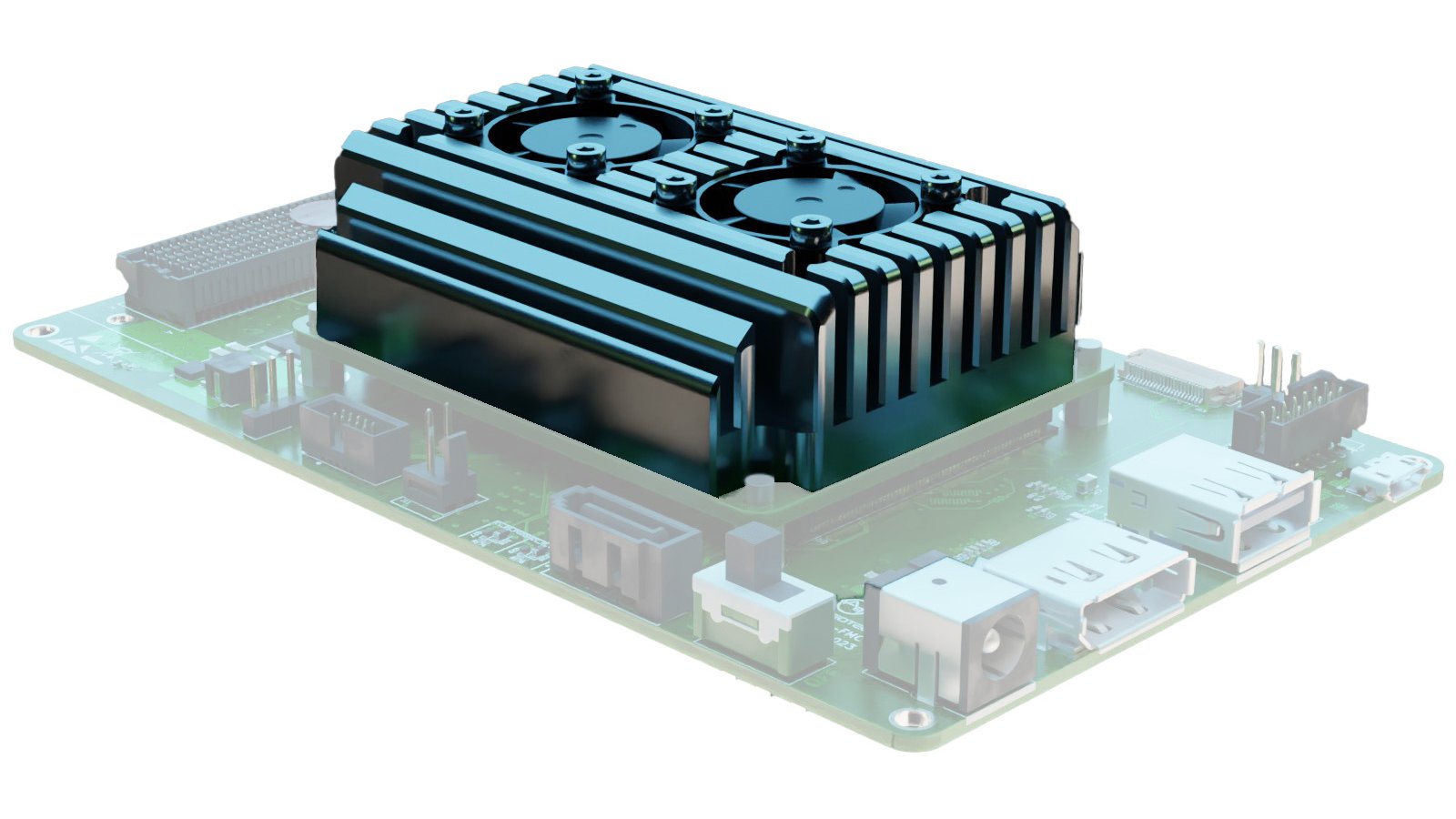

A heatsink for your Aper-Oculus carrier board. Accommodates two 25-mm, GPIO-controlled fans (sold separately).
From the AMD Kria™ K26 SOM & Kits project.
The AMD Kria K26 SOM offers a customized Zynq UltraScale+ MPSoC, packaged for convenient use with DDR memory, nonvolatile storage options, a security module, and an aluminum thermal heat spreader.
From the FSM-IMX547 Camera Modules project.
FRAMOS FSM-IMX547C Sensor Module (FSM) bundled with Sensor Adapter (FSA), lens and accessories. Contains a Sony IMX547 color 1/1.8" sensor and 8.5mm f/1.4 C-mount lens.
From the Crowd Supply Basics project.

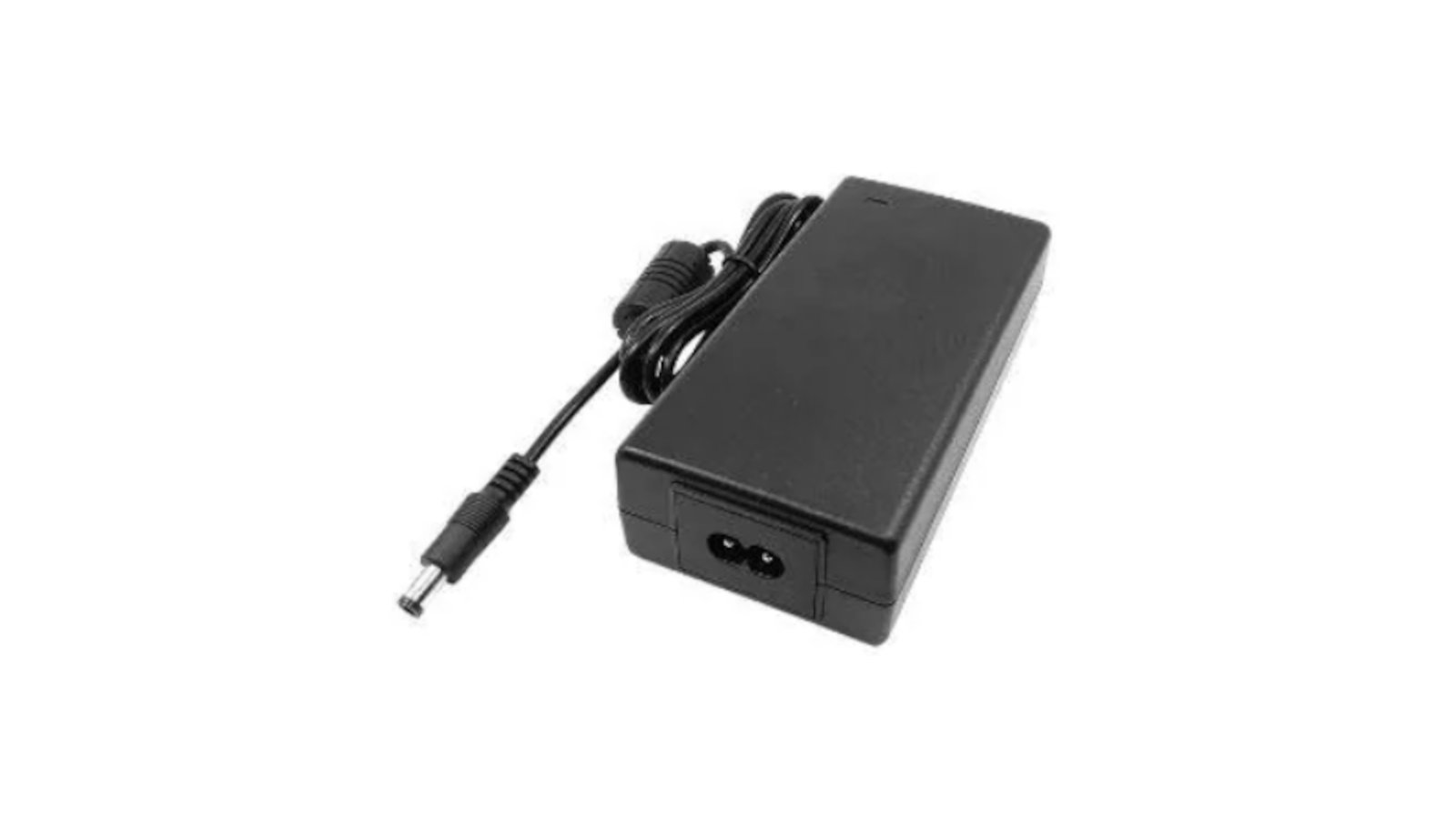

12-VDC, 65-W, wall-mount AC adapter with a 1.5-m output lead and a center-positive barrel-jack connector (2.5-mm ID, 5.5-mm OD)
